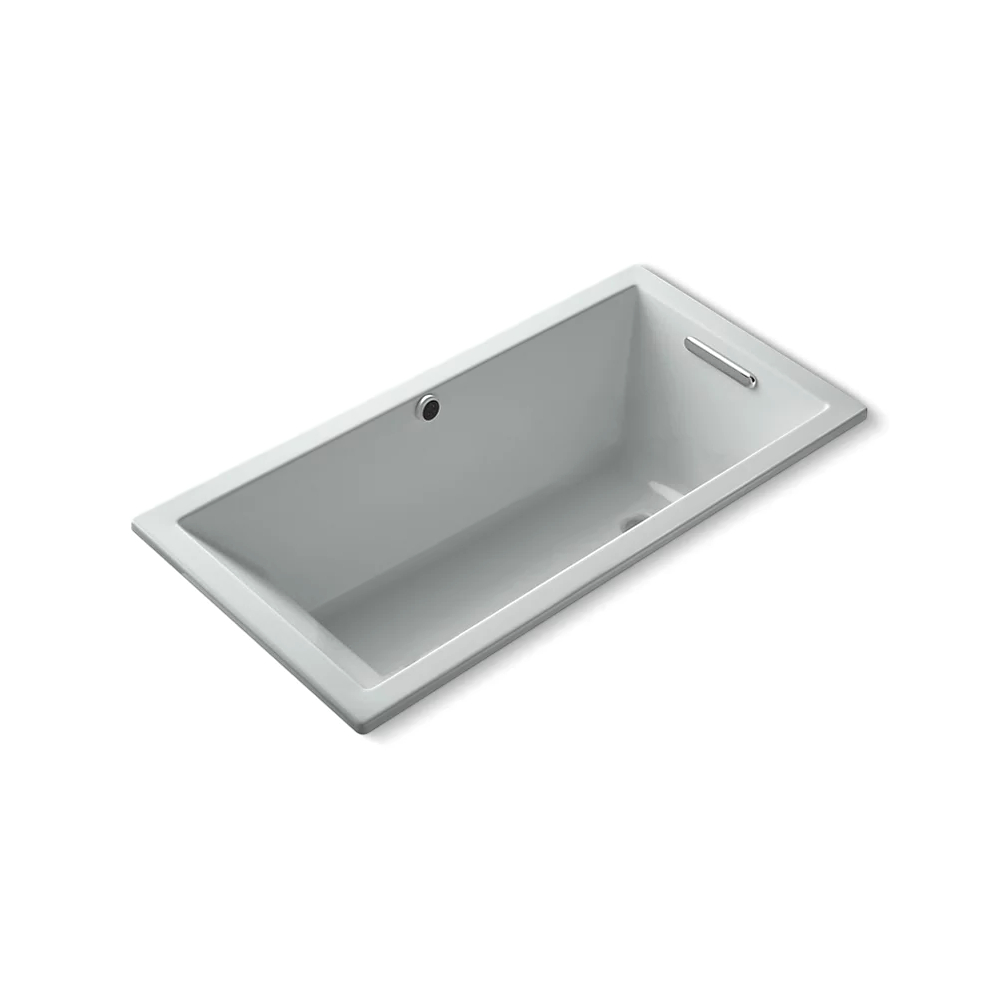

Kohler 1121-W1-95 Underscore 60" x 30" Drop-in Bath With Heated Surface Ice Grey
Underscore®
60" x 30" drop-in bath with Bask® heated surface
K-1121-W1-95
Color/Finish: Ice Grey
Streamlined for simplicity, this Underscore bath exudes refined style with contemporary flair. Its heated surface warms the back and neck with adjustable temperature settings to create a spa-like environment. A slotted overflow drain allows for a luxuriously deep bath as you relax against the comfortable sloped backrest.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Customize the heat with three adjustable settings
Integral lumbar support
Slotted overflow allows for deep soaking
Material
Acrylic
Installation
Reversible drain
Drop-in or undermount
Requires 110 V electrical service
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain

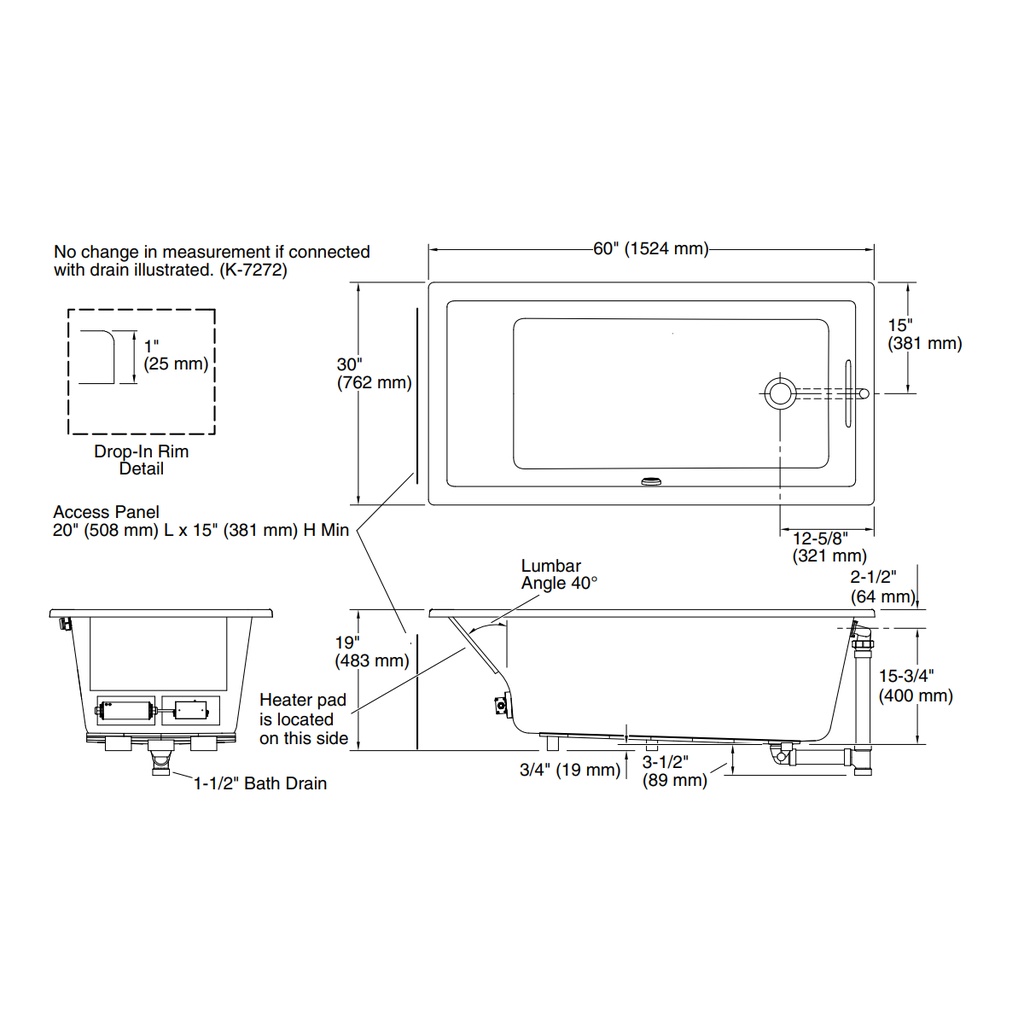

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 42-3/8" x 20" (1076 mm x 508 mm)
Basin area, top: 54-3/8" x 24-5/16" (1381 mm x 618 mm)
Weight: 77 lbs (34.9 kg)
Minimum floor load: 50 lbs/ft² (244.1 kg/m²)
Water depth: 15-1/16" (383 mm)
Water capacity: 59.8 gal (226.4 L)
Cutout: Drop-in, 59-1/2" x 28-1/2" (1511 mm x 724 mm)
Electrical component rating:
Heated Surface: 120 V, 0.5 A, 60 Hz
Minimum flat for door: 2" (51 mm)
