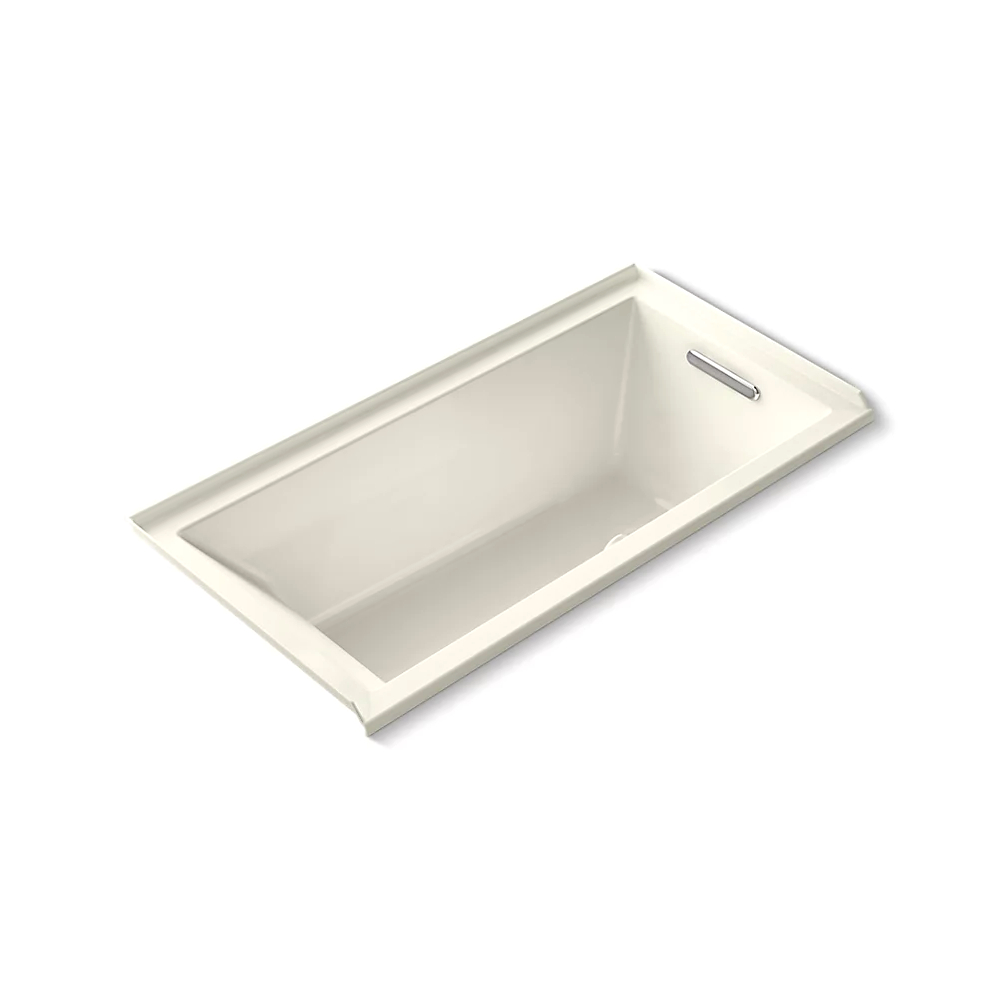

Kohler 1121-LW-96 Underscore 60" x 30" Alcove Bath With Heated Surface Left Drain Biscuit
Underscore®
60" x 30" alcove bath with Bask® heated surface, left drain
K-1121-LW-96
Color/Finish: Biscuit
Streamlined for simplicity, this Underscore bath exudes refined style with contemporary flair. Its heated surface warms the back and neck with adjustable temperature settings to create a soothing, spa-like environment. A slotted overflow drain allows for a luxuriously deep bath as you relax against the comfortable sloped backrest.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Customize the heat with three adjustable settings
Integral lumbar support
Slotted overflow allows for deep soaking
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Material
Acrylic
Installation
Left drain
Undermount
Alcove
Requires 110 V electrical service
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain

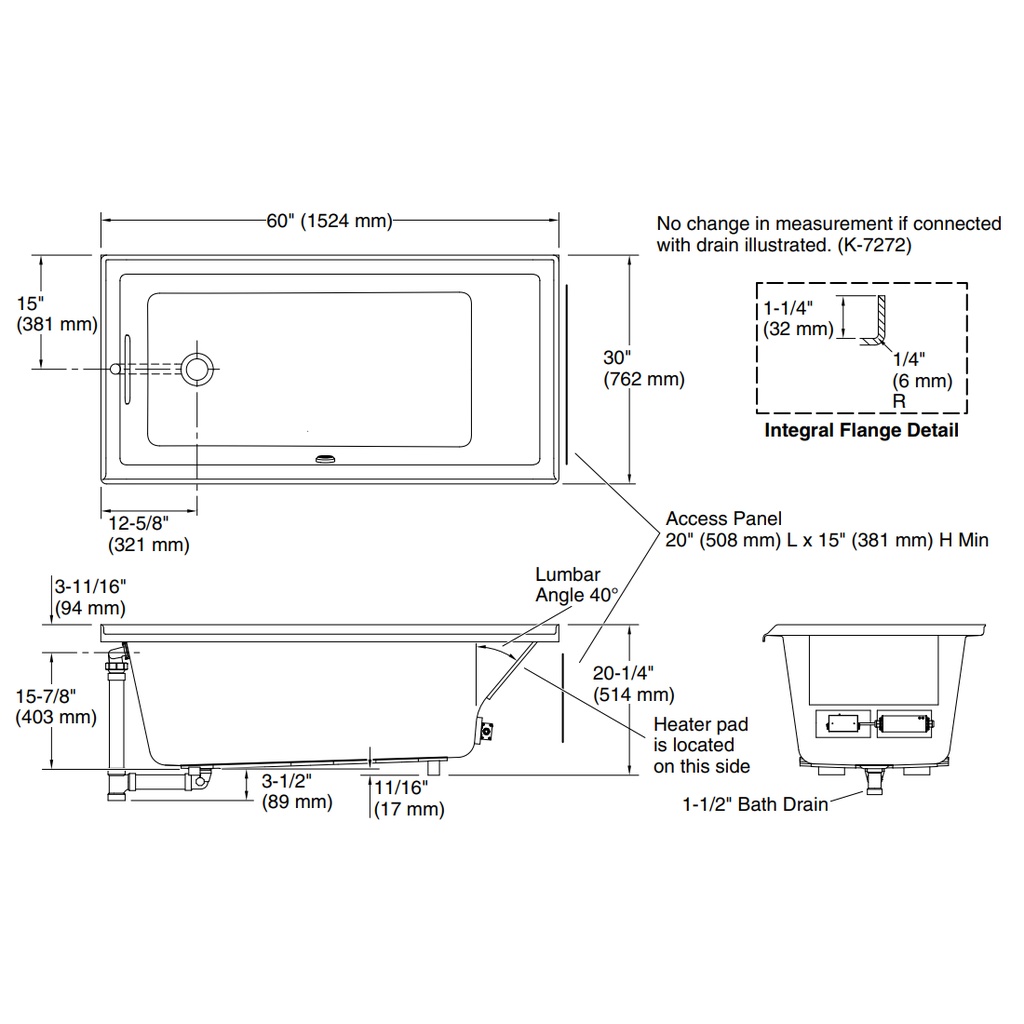

Technical Information
All product dimensions are nominal.
Drain location: Left
Basin area, bottom: 42-7/16" x 20" (1078 mm x 508 mm)
Basin area, top: 54-5/16" x 24-1/4" (1380 mm x 616 mm)
Weight: 81 lbs (36.7 kg)
Minimum floor load: 42 lbs/ft² (205.1 kg/m²)
Water depth: 15-1/8" (384 mm)
Water capacity: 59.8 gal (226.4 L)
Electrical component rating:
Heated Surface: 120 V, 0.5 A, 60 Hz
Minimum flat for door: 1-15/16" (49 mm)
