Kohler 1100-RA-0 Expanse 60" x 32" Alcove Bath Right Drain White
Expanse®
60" x 32" alcove bath, right drain
K-1100-RA-0
Color/Finish: White
Sink into a spacious alcove retreat. With an attractive curved apron providing extra room to soak, this bath offers a luxurious bathing experience in a compact 5-foot design. The textured bottom enhances safety, and the integral flange helps protect walls from water damage.
Features
Curved basin creates a comfortable bathing experience
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Material
Acrylic
Installation
Right drain
Alcove
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37385 rough-in cable drain, PVC, 45” cable
K-78439 45" cable bath drain

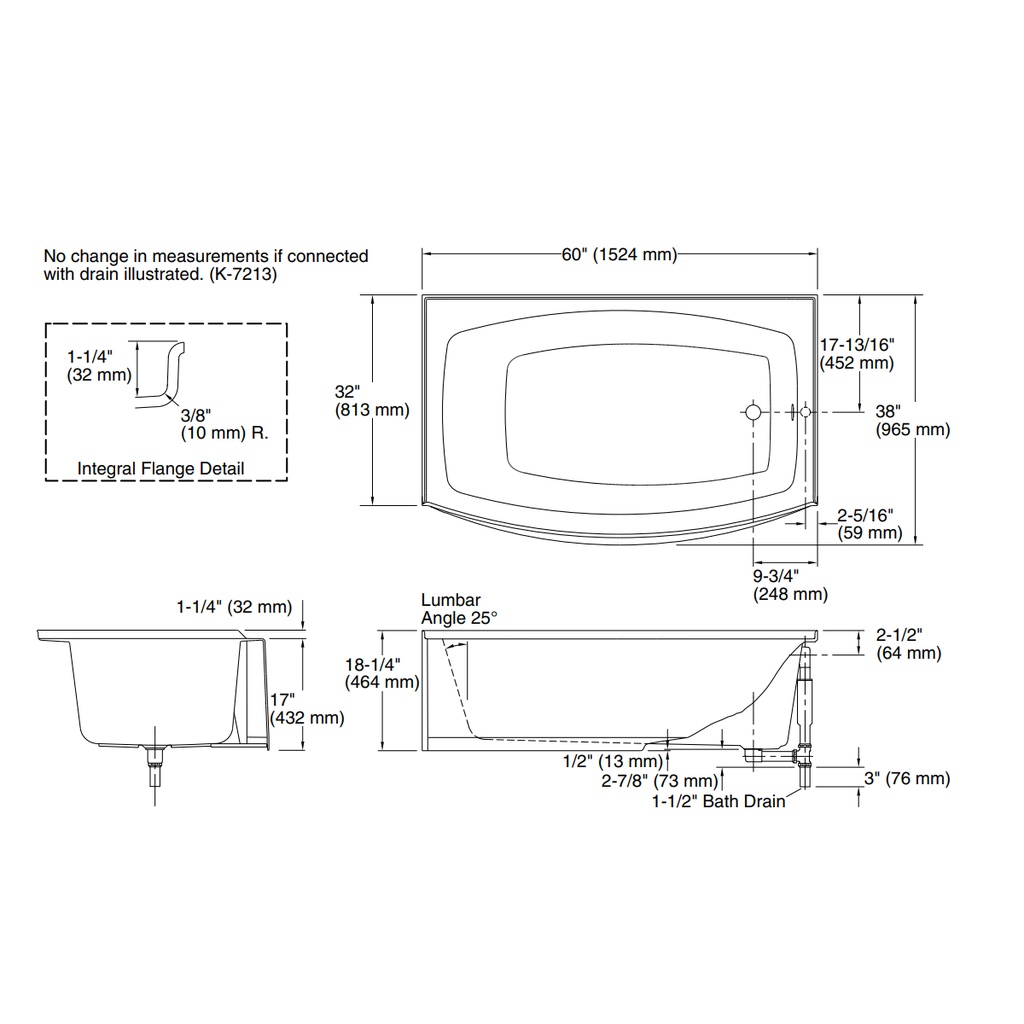

Technical Information
All product dimensions are nominal.
Drain location: Right

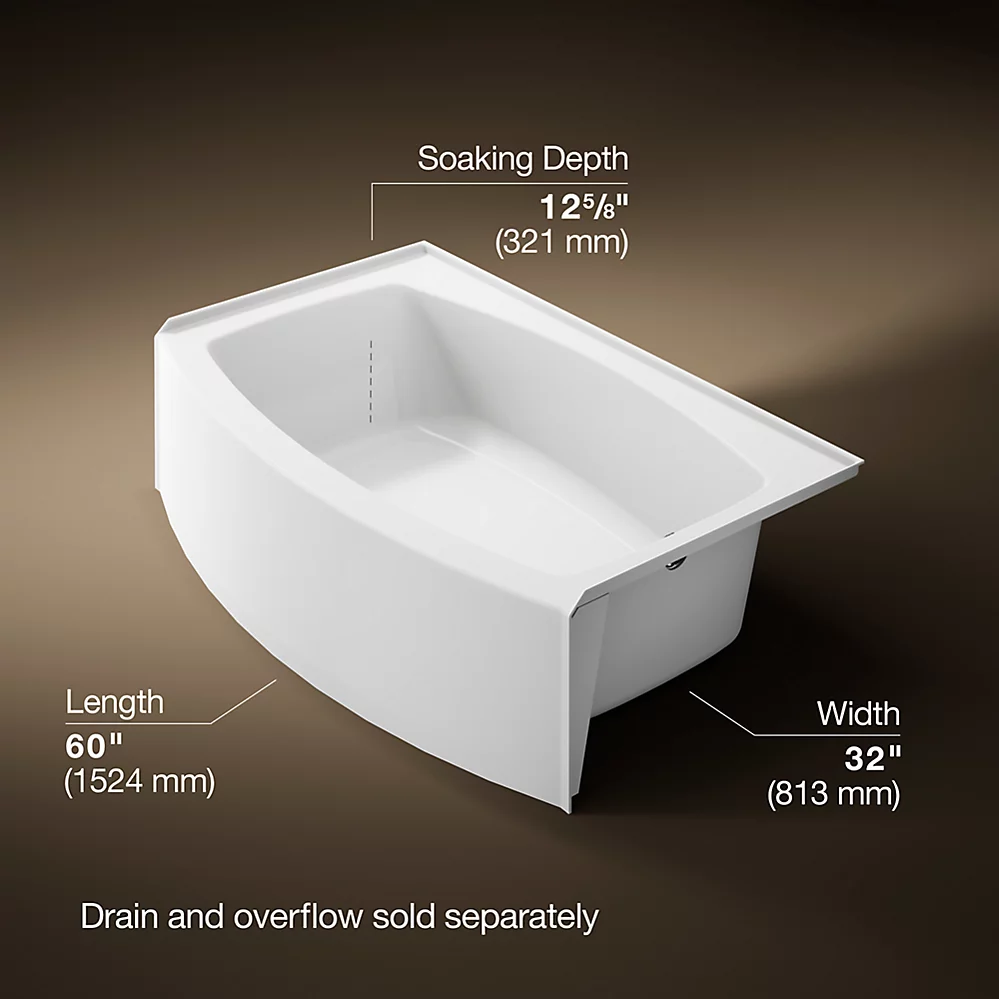

Basin area, bottom: 45-11/16" x 27-5/8" (1160 mm x 702 mm)
Basin area, top: 54" x 31" (1372 mm x 787 mm)
Weight: 78 lbs (35.4 kg)
Minimum floor load: 38 lbs/ft² (185.5 kg/m²)
Water depth: 12-5/8" (321 mm)
Water capacity: 60 gal (227.1 L)
