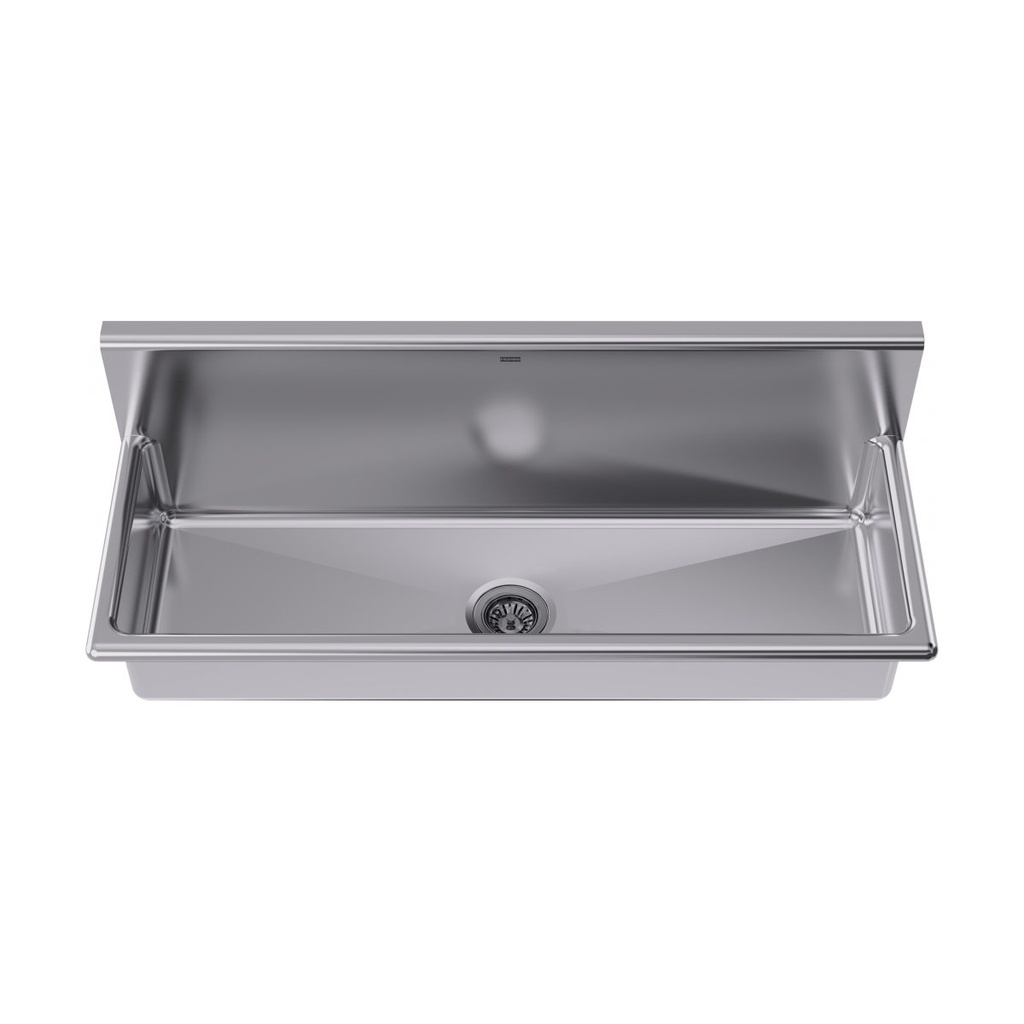

Franke WTS48-1-2 Trough Standard Series Utility Sink
Utility sinks
WTS48-1 Wall trough, 16 ga, 48"
Article Number
214.0493.321
Single compartment wash trough. Centre waste location. 16 gauge (1.5 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Radius coved bowl corners and rolled radius rim. 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Please allow 4 weeks for delivery. 1 1/2" (38 mm) waste option available as custom request.
WTS48-1, Custom (non-returnable). faucet hole locations should be indicated relative to the sink orientation as shown in drawings. A sketch is recommended.
WTS48-1-2, 2 faucet holes, 1 1/4" diameter, 8" centreset. 18 x 48" Overall. 14 3/4 x 44 1/2 x 8" Bowl. (FB x LR x D). 457 x 1219 mm Overall. 375 x 1130 x 203 mm Bowl. (FB x LR x D).
Product Information
Features
Bowl construction Radius coved corners
Waste assembly Included
Waste fitting Crumb cup waste assembly
Front edge style Rolled
Product Dimensions
Overall front to back 17.992 "
Overall left to right 47.992 "
Overall height 9.488 "
Bowl dimension front to back 14.764 "
Bowl dimension left to right 44.488 "
Bowl depth 7.992 "
Installation
Installation type Wall mount
Installation system Wall hanger bracket
Recommended wall carrier IWC2203 sold separately
Product identification
Model WTS48-1
Brand FRANKE
Product category Utility sinks
Utility sink type Wall trough sinks
Product specifications
Gauge 16
Tailpiece diameter (in) 1 1/2" (38mm)
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Splash location Back
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center
Waste size 3 1/2" (89mm)
