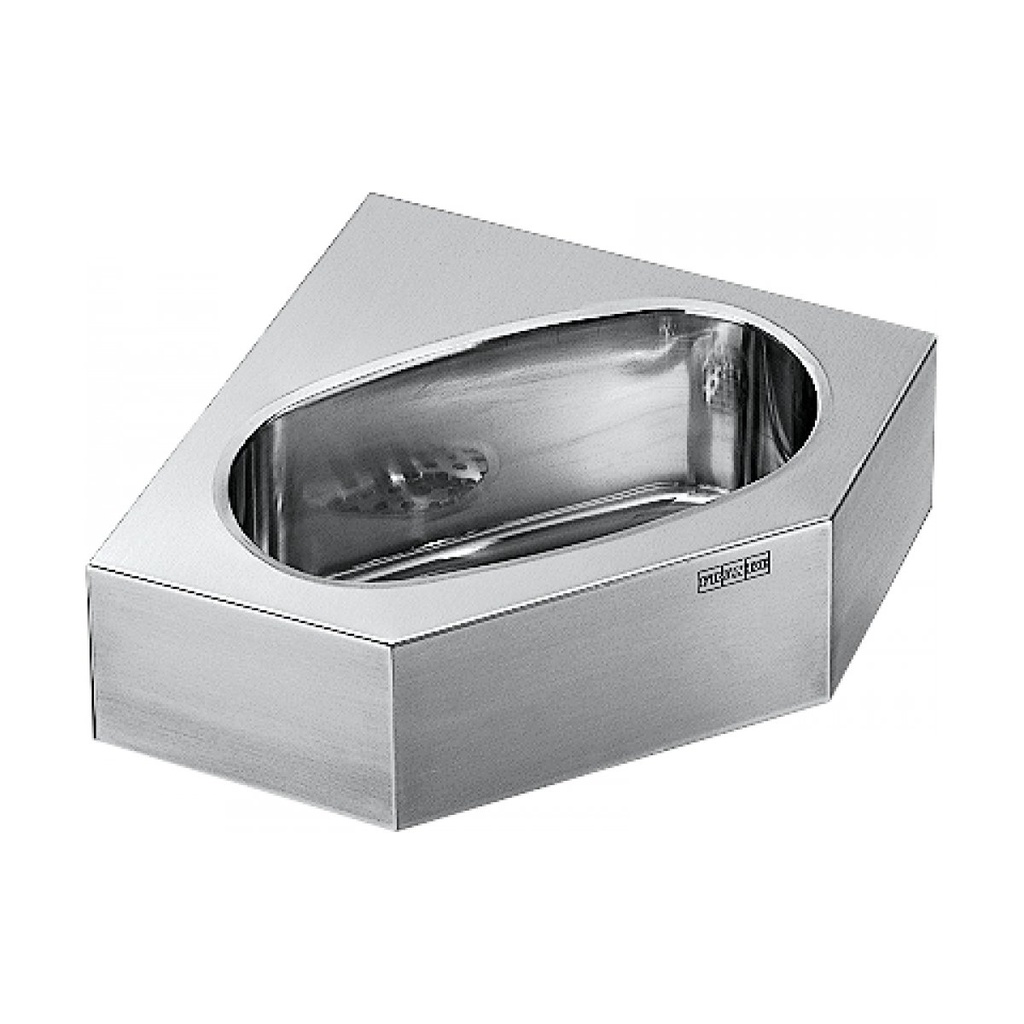

Franke WT310E-7-1 Wall Hung Wash Basin 1 Hole Stainless Steel
Hand wash basins
WT310E-7 Corner mount basin,19 ga
Article Number
214.0493.303
Single compartment corner wall mount wash basin with faucet ledge. Centre waste location. 19 gauge (1.0 mm) 18/10 stainless steel. Exposed surfaces are brushed finish. Includes installation kit. Accepts 1 1/4" (32 mm) waste (not included).
Custom faucet hole drillings are not possible.12 3/16" x 12 3/16" (Overall D x W). 6 1/8" x 11 7/16" x 4 3/4" (Bowl D x W x H). Model Option: WT310E-7- 1, 1 faucet hole, 1 3/8" (35 mm) diameter.
Product Information
Features
Waste assembly Not included
Overflow location No
Product Dimensions
Overall front to back 12.205 "
Overall left to right 12.205 "
Overall height 4.764 "
Bowl dimension front to back 6.102 "
Bowl dimension left to right 11.417 "
Bowl depth 4.764 "
Installation
Installation type Corner mount
Installation system Installation kit included
Product identification
Model WT310E-7
Brand FRANKE
Product category Hand wash basins
Product specifications
Gauge 19
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish Brushed
Number of bowls 1
Splash location None
Number of faucet holes Specify when ordering
Waste location Center
Waste size 1 1/4" (32mm)
