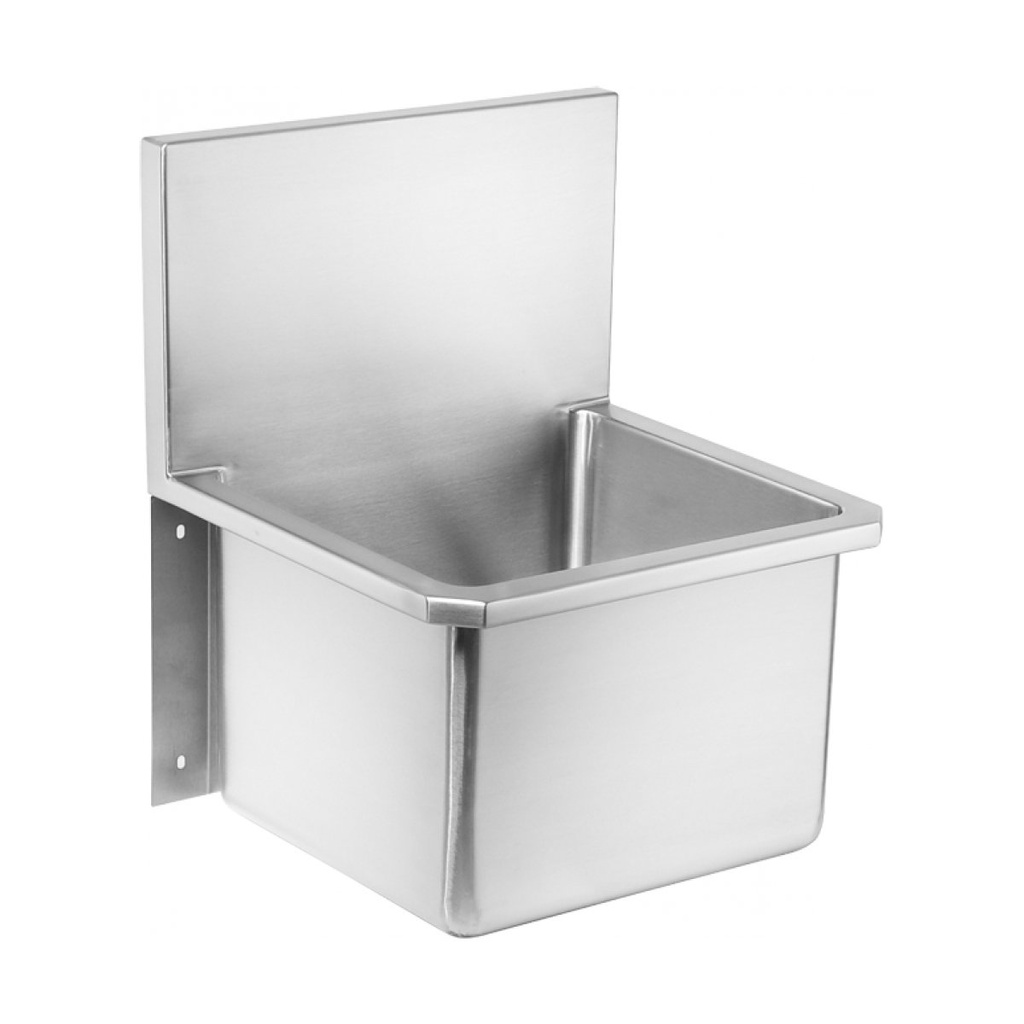

Franke WSS6713 Wall Hung Wash Basin Stainless Steel
Utility sinks
WSS6713 Wall hung wash basin,14 ga
Article Number
214.0493.317
Wall service sink. Centre waste location. 14 gauge (2.0 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Radius coved bowl corners. Certified to ASME A112.19.3-2008 / CSA B45.4-08.
Please allow 4 weeks for delivery. Model Options: WSS6713-2, 2 faucet holes, 1 1/4" diameter, 8" centreset. WSS6713, Custom, non-returnable. 19 x 20" Overall. 16 x 17 x 13" Bowl. (FB x LR x D). 483 x 508 mm Overall. 406 x 432 x 330 mm Bowl. (FB x LR x D).
Product Information
Features
Bowl construction Radius coved corners
Waste assembly Included
Waste fitting Crumb cup waste assembly
Front edge style Rolled
Product Dimensions
Overall front to back 19.016 "
Overall left to right 20 "
Overall height 25 "
Bowl dimension front to back 15.984 "
Bowl dimension left to right 17.008 "
Bowl depth 12.992 "
Installation
Installation type Wall mount
Installation system Wall hanger bracket
Product identification
Model WSS6713
Brand FRANKE
Product category Utility sinks
Utility sink type Wall trough sinks
Product specifications
Gauge 14
Tailpiece diameter (in) 1 1/2" (38mm)
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Splash location Back
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center
Waste size 3 1/2" (89mm)
