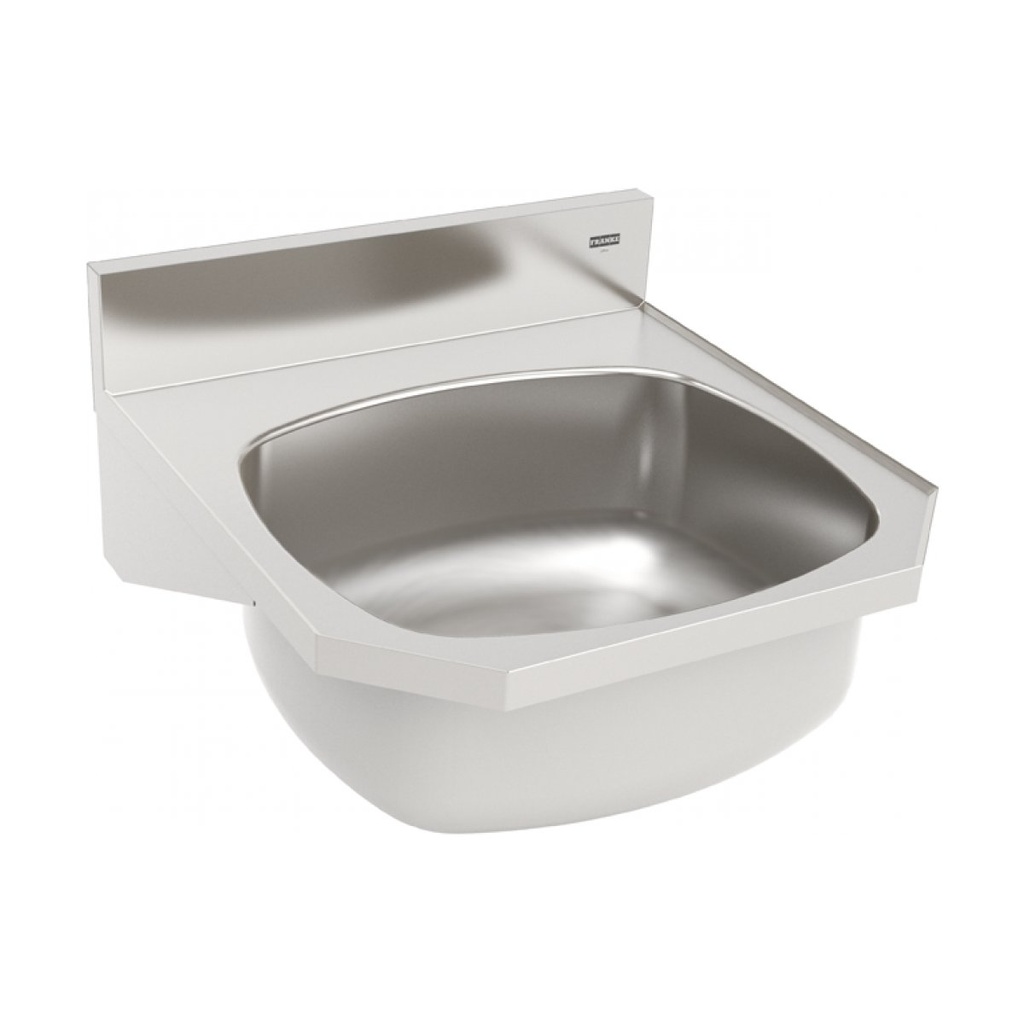

Franke WHB1819-7-1 Wall Hung Wash Basin 1 Hole Stainless Steel
Hand wash basins
WHB1819-7 Wall hung wash basin,18ga
Article Number
214.0493.289
Wall hung basin. Centre back waste location. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Radius coved bowl corners. 16 gauge (1.5 mm) side wall brackets. One piece wall hanger. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Separate sink carrier is not required. Accepts 1 1/4" (32 mm) waste assembly (not included).
No overflow. Model Options: WHB1819-7-1, 1 faucet hole, 1 1/2" diameter. WHB1819-7-3, 3 faucet holes, 1 1/2" diameter, 4" centreset. WHB1819-7, Custom (non-returnable). 19 x 18 1/2" Overall. 14 x 16 x 7" Bowl. (FB x LR x D). 483 x 470 mm Overall. 356 x 406 x 178 mm Bowl. (FB x LR x D).
Product Information
Features
Waste assembly Not included
Overflow location No
Product Dimensions
Overall front to back 19.016 "
Overall left to right 18.504 "
Overall height 10.748 "
Bowl dimension front to back 14.016 "
Bowl dimension left to right 15.984 "
Bowl depth 7.008 "
Installation
Installation type Wall mount
Installation system Wall hanger bracket
Recommended wall carrier IWC2203 sold separately
Product identification
Model WHB1819-7
Brand FRANKE
Product category Hand wash basins
Product specifications
Gauge 18
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Splash location Back
Number of faucet holes Specify when ordering
Waste location Center
Waste size 1 1/4" (32mm)
