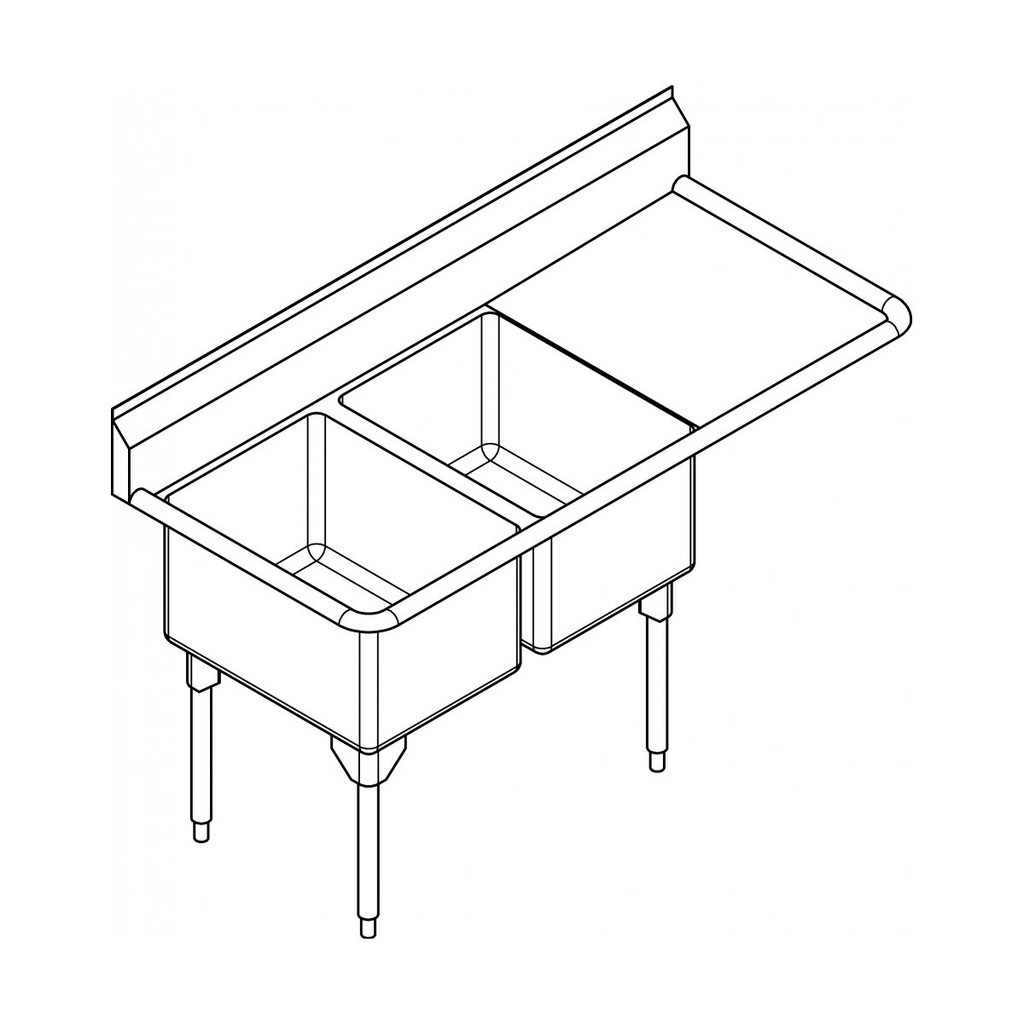

Franke RDL2448R-1 Restaurant Series 16 Gauge Double Sink
Scullery sinks
RDL2448R-1 Restaurant 16ga, right dboard
Article Number
253.0221.264
Model Options:
RDL2448R-1-2, 2 faucet holes, 1 1/4" diameter, 8" centreset.

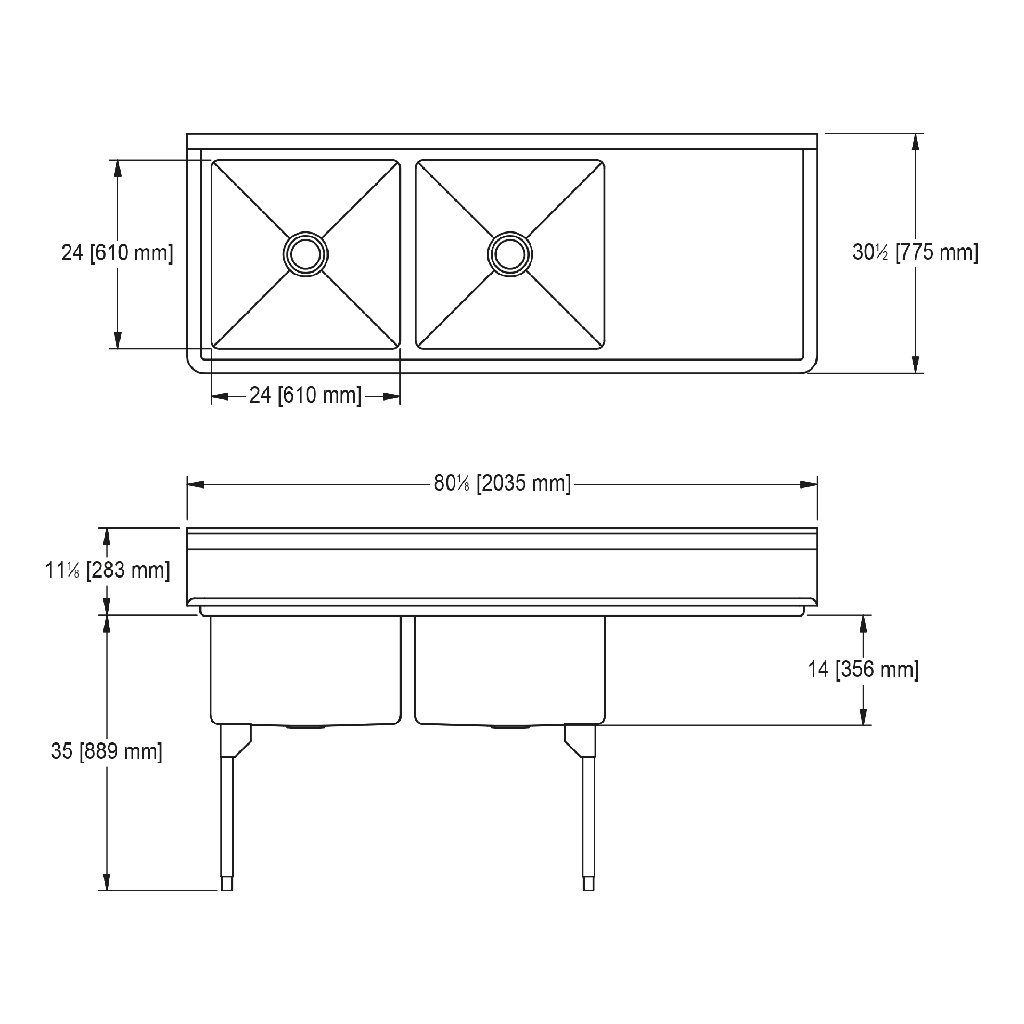

RDL2448R-1, Custom (non-returnable). 30 1/2 x 80 1/8" Overall. 24 x 24 x 14" Bowl. (FB x LR x D). 724 x 2035 mm Overall. 610 x 610 x 356 mm Bowl. (FB x LR x D).
Double compartment "Restaurant Series" scullery sink. These sculleries are free standing scullery sinks constructed with hygiene and food safety in mind. All radius coved bowl corners are easy to clean and there are no cracks or seams for bacteria to grow in. 16 gauge (1.8 mm), type 304 (CNS 18/10) stainless steel. Polished to a #4 satin finish. Finished with a rolled rim.
Right Drainboard sloped toward bowl. Stainless steel tubular legs with adjustable feet for leveling. Waste fitting included. Certified to ASME A112.19.3-2008 / CSA B45.4-08, NSF 2. Please allow 4 weeks for delivery. This series of scullery sinks are built to order and are non-returnable. With right side drainboard. Centre waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece.
Product Information
Features
Bowl construction Radius coved corners
Drainboard Right
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 30.512 "
Overall left to right 80.118 "
Overall height 44.055 "
Floor to rim height 35.039 "
Bowl dimension front to back 24.016 "
Bowl dimension left to right 24.016 "
Bowl depth 14.016 "
Installation
Installation type On legs
Product identification
Model RDL2448R-1
Brand FRANKE
Product category Scullery sinks
Scullery sink type Restaurant series
Product specifications
Gauge 16
Tailpiece diameter (in) 1 1/2" (38mm)
Certification cUPC, NSF
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 2
Splash location Back
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center
Waste size 3 1/2" (89mm)
