Franke LBS6808-316P-1-3 Topmount Single Sink With Ledge Stainless Steel
Type 316 sinks
LBS6808-316P-1 Type 316 Lab single bowl
Article Number
207.0683.149
Model Options:
LBS6808-316P-1-1, 1 faucet hole, 1 1/2" diameter.
LBS6808-316P-1-3, 3 faucet holes, 1 1/2" diameter, 4" centres, 8" centreset.
LBS6808-316P-1, Custom (non-returnable). 20 9/16 x 20" Overall. 16 x 18 x 8" Bowl. (FB x LR x D). 522 x 508 mm Overall. 406 x 457 x 203 mm Bowl. (FB x LR x D).

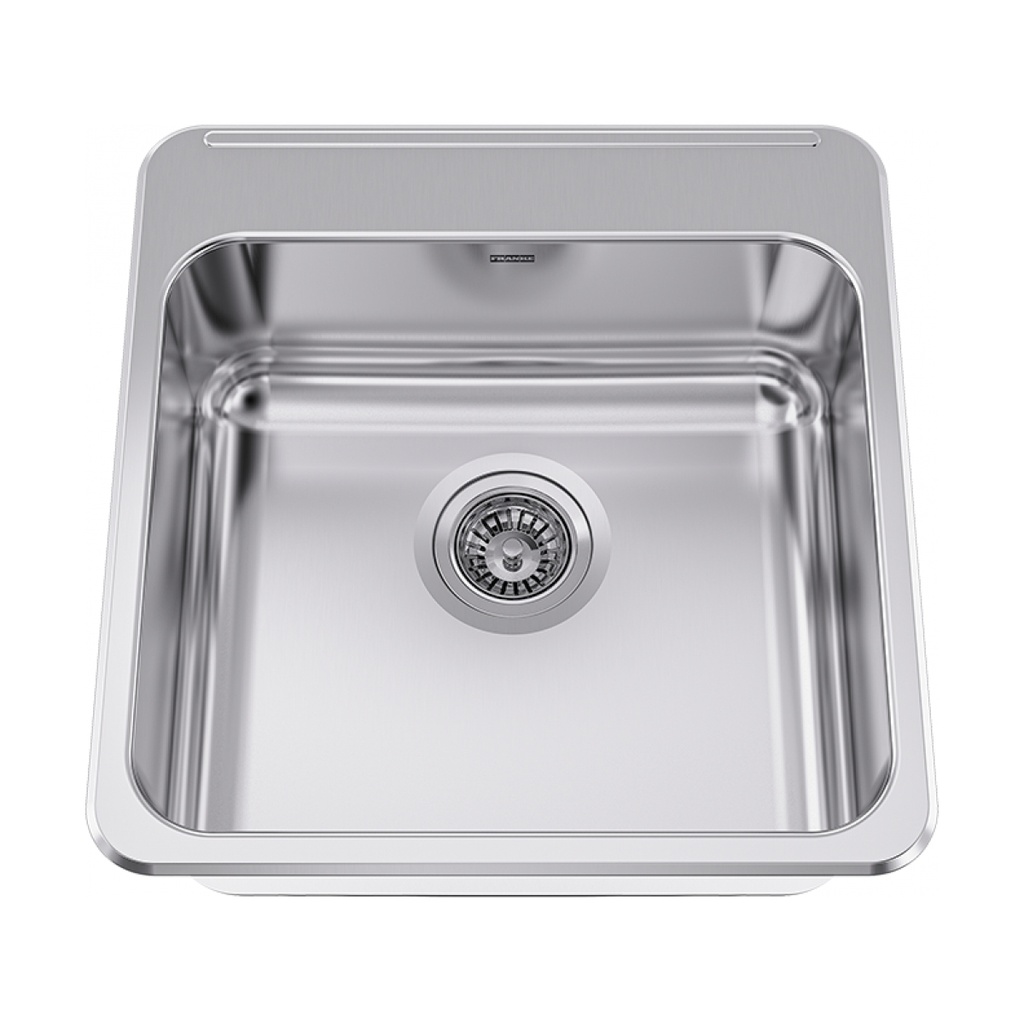

Single compartment self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 316 (EN1.4401 17/12/2) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting, factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Centre back waste location, 3 1/2" (89 mm) type 316 (EN1.4401 17/12/2) stainless steel crumb cup strainer with 1 1/2" (DN38) type 316 (EN1.4401 17/12/2) stainless steel tailpiece.
Product Information
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 20.512 "
Overall left to right 20 "
Bowl dimension front to back 15.984 "
Bowl dimension left to right 17.992 "
Bowl depth 7.992 "
Installation
Installation type Topmount
Installation system EZ Torque
Product identification
Model LBS6808-316P-1
Brand FRANKE
Product category Type 316 sinks
Product specifications
Gauge 18
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
Certification cUPC
Type of material Type 316
Material code EN1.4401 17/12/2
Surface finish #4 Satin
Number of bowls 1
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center back
