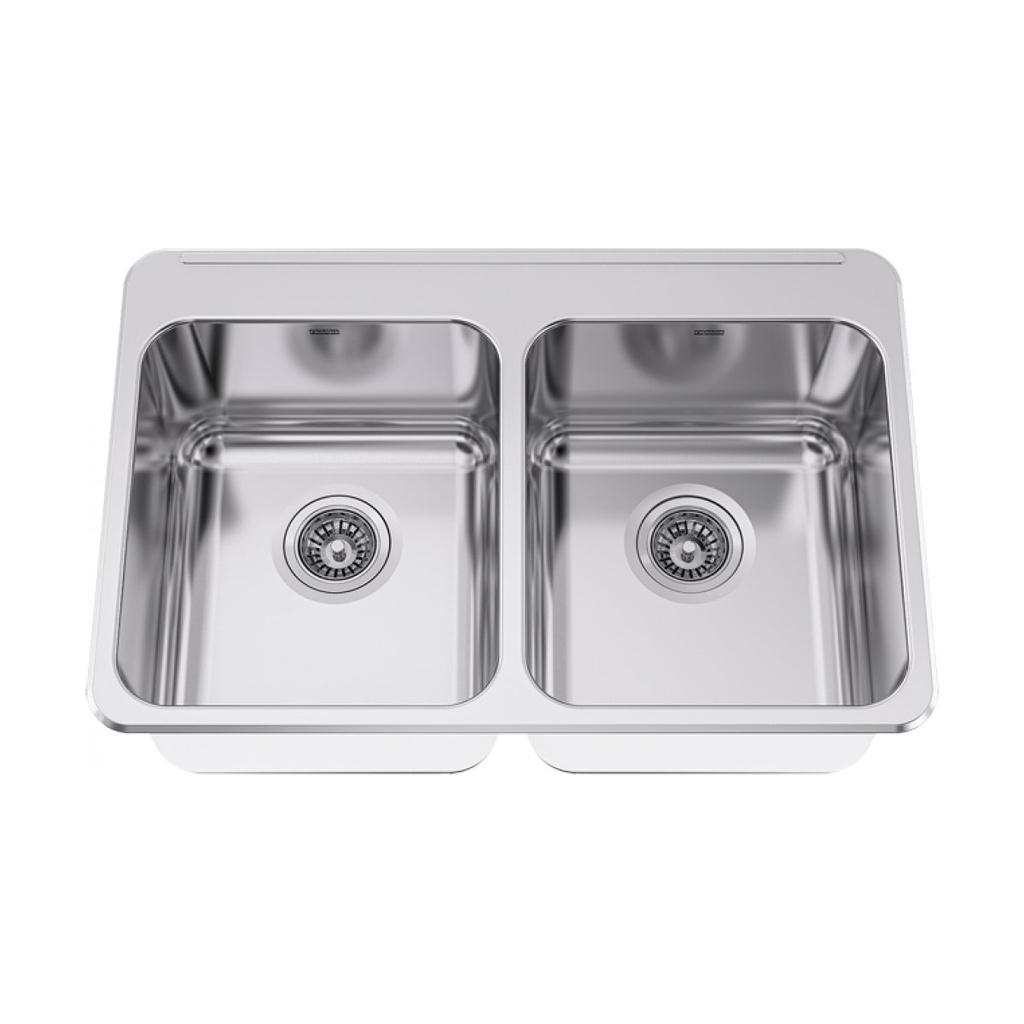

Franke LBD6410-316PCB-1 Double Sink With Ledge Stainless Steel
Type 316 sinks
LBD6410-316PCB-1 T316 Lab double bowl
Article Number
207.0682.837
Model Options:
LBD6410-316PCB-1-1, 1 faucet hole, 1 1/2" diameter, centred over partition.
LBD6410-316PCB-1-3, 3 faucet holes, 8" centreset, 1 1/2" diameter, centred over partition. LBD6410-316PCB-1-X, Custom (non-returnable). 20 13/16 x 31 1/4" Overall. 16 x 14 x 10" Bowl. (FB x LR x D). 529 x 794 mm Overall. 406 x 356 x 254 mm Bowl. (FB x LR x D).
Double compartment self rimming topmount sink with faucet ledge. Centre back waste location. 18 gauge (1.2 mm), type 316 (EN1.4401 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes factory applied rim seal, factory installed EZ TORQUE™ fasteners, and waste kit.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Centre back waste location. Includes 3 1/2" (89 mm) type 316 (EN1.4401 17/12/2) stainless steel crumb cup strainer with 1 1/2" (DN38) type 316 (EN1.4401 17/12/2) stainless steel tailpiece.
Product Information
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 20.827 "
Overall left to right 31.26 "
Bowl dimension front to back 15.984 "
Bowl dimension left to right 14.016 "
Bowl depth 10 "
Installation
Installation type Topmount
Installation system EZ Torque
Product identification
Model LBD6410-316PCB-1
Brand FRANKE
Product category Type 316 sinks
Product specifications
Gauge 18
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
Certification cUPC
Type of material Type 316
Material code EN1.4401 17/12/2
Surface finish #4 Satin
Number of bowls 2
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center back
