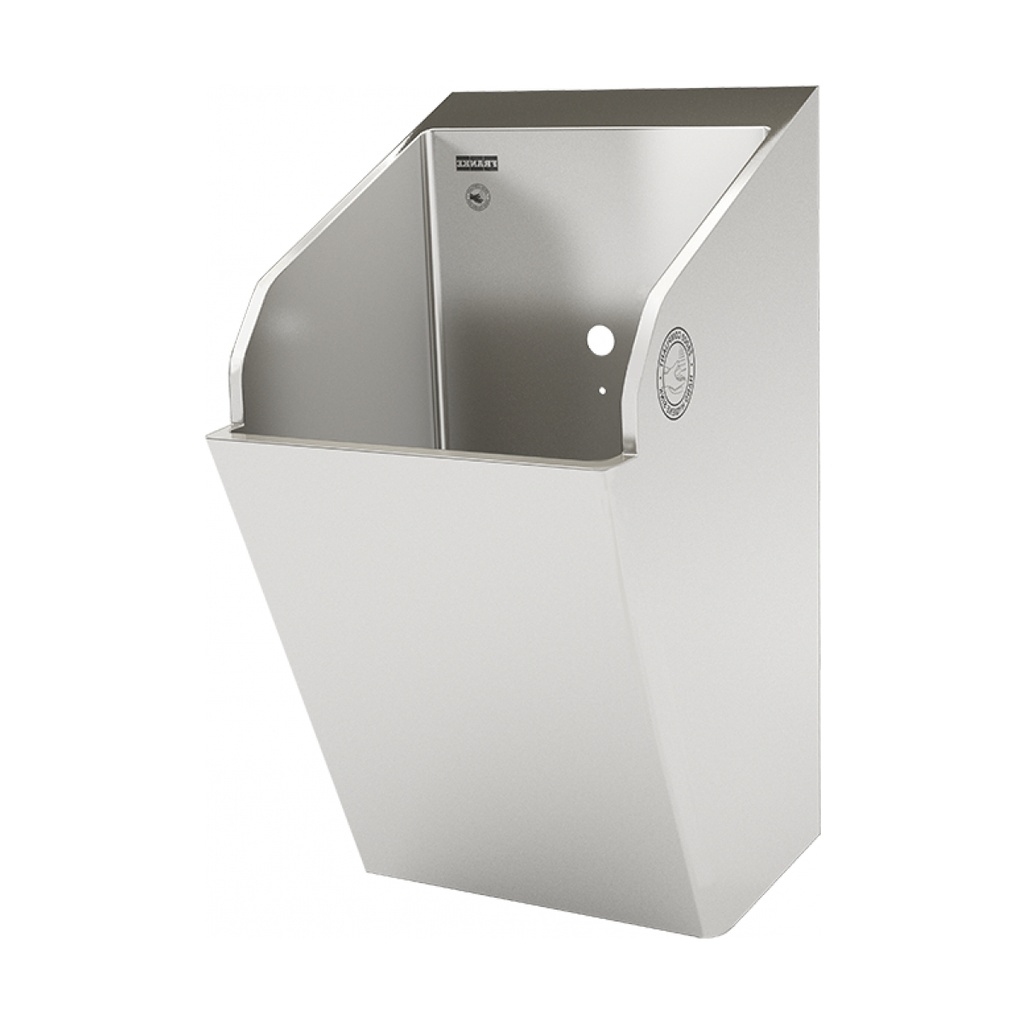

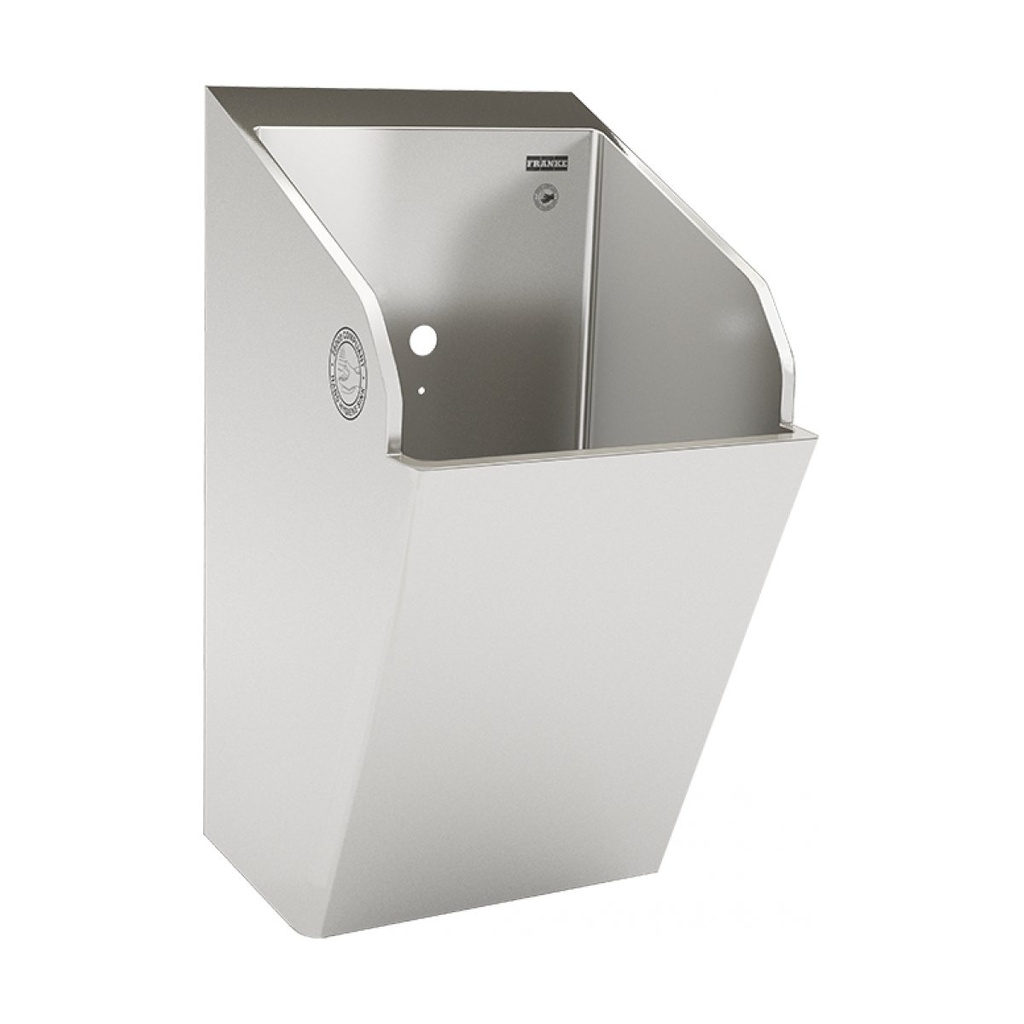

Franke HWSS1518P-00-1 Clinical Wash Trough Stainless Steel
Healthcare
HWSS1518P-00 Clinical Wash Trough,18ga
Article Number
214.0493.248
Model Options:
HWSS1518P-00, no hole.
HWSS1518P-00-1, 1 faucet hole ∅1 1/4" (32 mm) 9" (228 mm) from top of basin. 18 x 15" Overall. 14 x 14 x 10" Bowl. (FB x LR x D). 457 x 381 mm Overall. 356 x 356 x 254 mm Bowl. (FB x LR x D).
Z8000 Compliant Antimicrobial Hand Hygiene Sink with integral shroud. 18 gauge (1.2 mm) type 304 stainless steel. Right rear waste location to prevent water from splashing directly into the waste from both the faucet and during hand washing. Integral 1 1/2" (DN 40) tailpiece is welded to the bottom of the basin. Waste is left open and shaped to prevent the assembly of plugs, strainers and anti-splash fittings which are not allowed by the Z8000 guidelines.
High back and side walls contain splashing and protect adjacent surfaces from contamination. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Recommended for laminar flow, user temperature controlled, splash mounted faucet. Due to the strength and lightness of stainless steel, an in wall carrier is not required and the sink can be carried and installed by one person. A wall hanger bracket is used to mount the sink to the wall.
Recommended for laminar flow faucet. This product has an antimicrobial coating on all exposed surfaces. Patent Pending / Industrial Design Registration Pending.
Product Information
Features
Waste assembly Integral
Waste fitting Welded
Product Dimensions
Overall front to back 17.992 "
Overall left to right 15 "
Overall height 28.622 "
Bowl dimension front to back 14.016 "
Bowl dimension left to right 14.016 "
Bowl depth 10 "
Installation
Installation type Wallmounted
Installation system Wall hanger bracket
Product identification
Model HWSS1518P-00
Brand FRANKE
Product category Healthcare
Healthcare category Clinical wash basins
Product specifications
Gauge 18
Waste location Right rear
Waste size 1 1/2" (38mm)
Type of material Type 304
Certification cUPC
Material code CNS 18/10
Surface finish #4 Satin
Surface treatment Antimicrobial nanocoating
Number of bowls 1
Splash location Back and sides
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Tailpiece diameter (in) 1 1/2" (38mm)
