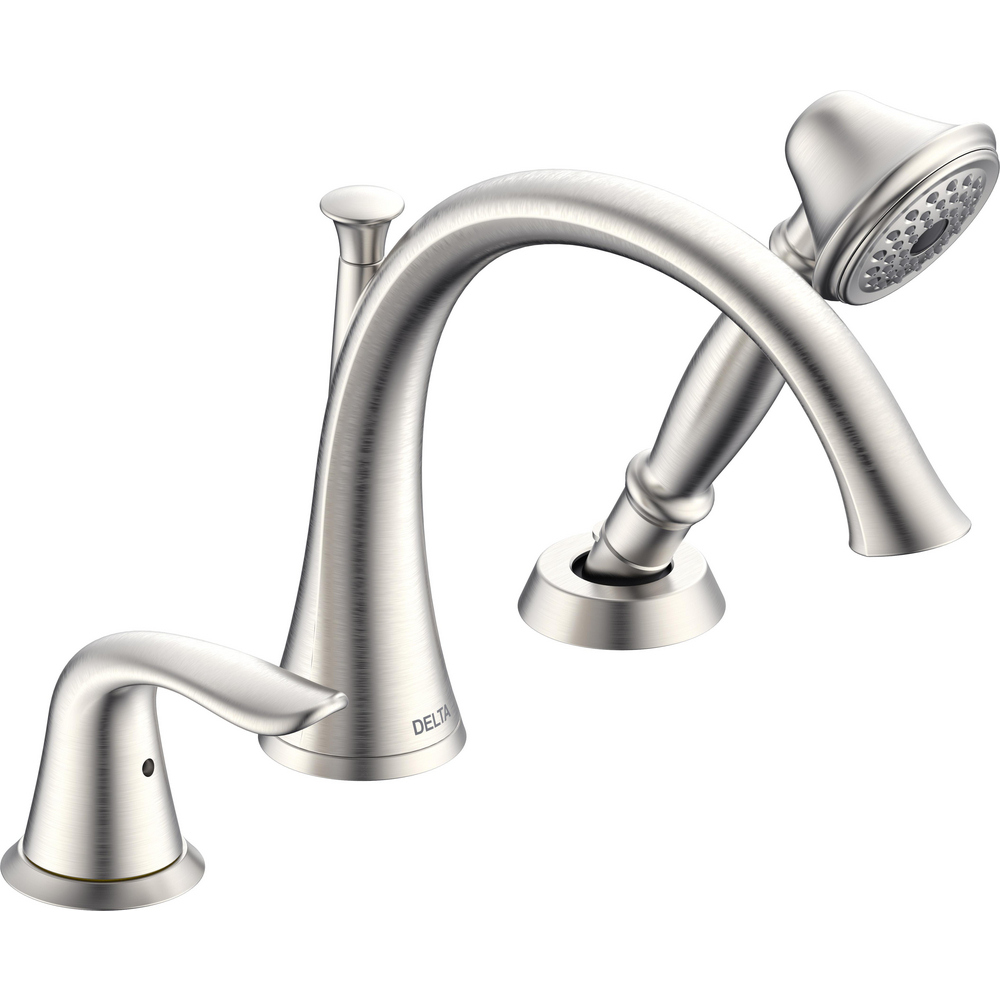

Delta T3738-SS Lahara 3 Hole Roman Tub With Handshower Stainless
3 Hole Lahara Roman Tub With Handshower
model#: T3738-SS
Finish: Stainless
Installation Information
Number of Handles: Single handle
Valve Type: Single-function pressure balance cartridge

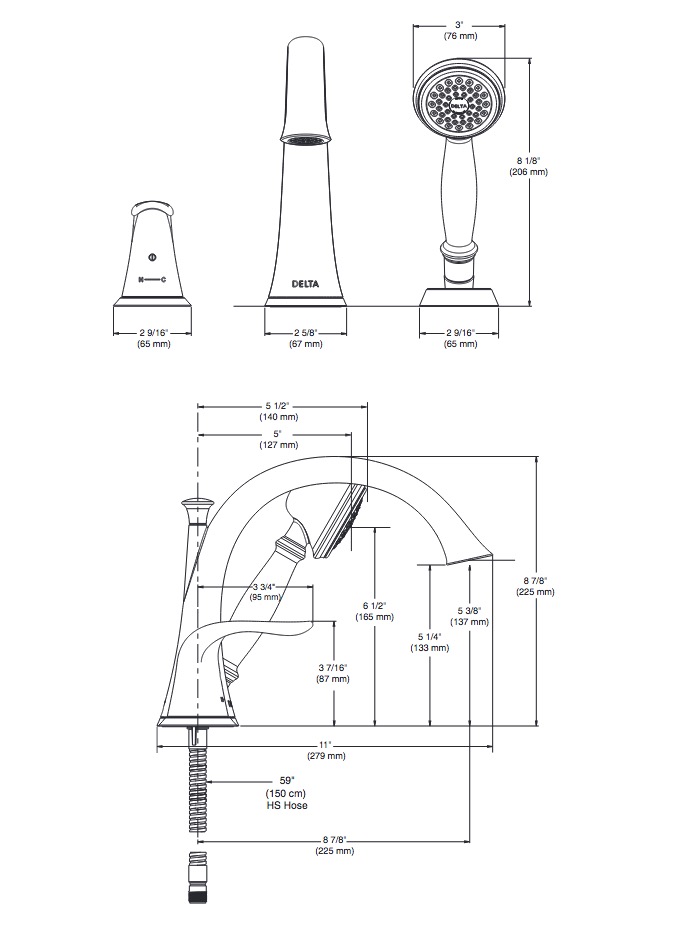

Over All Height: 8.8750
STANDARD SPECIFICATIONS:
Hand Shower maximum flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Trim only for single handle Roman Tub Faucet with Hand Shower
Temperature only controlled with handle
Hot/cold indicator
Rough-in Kit must be ordered to complete installation:
R3707, R3707-MF and R3707-PX for flexible rough-in.
R3716, R3716-MF and R3716-PX for fixed rough-in.
There are separate specification sheets on each rough-in kit, if more detail is required.
Hand Shower includes double check valves for backflow prevention
COMPLETE VALVE COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates ADA compliance to ICC/ANSI A117.1 – Valve Only
