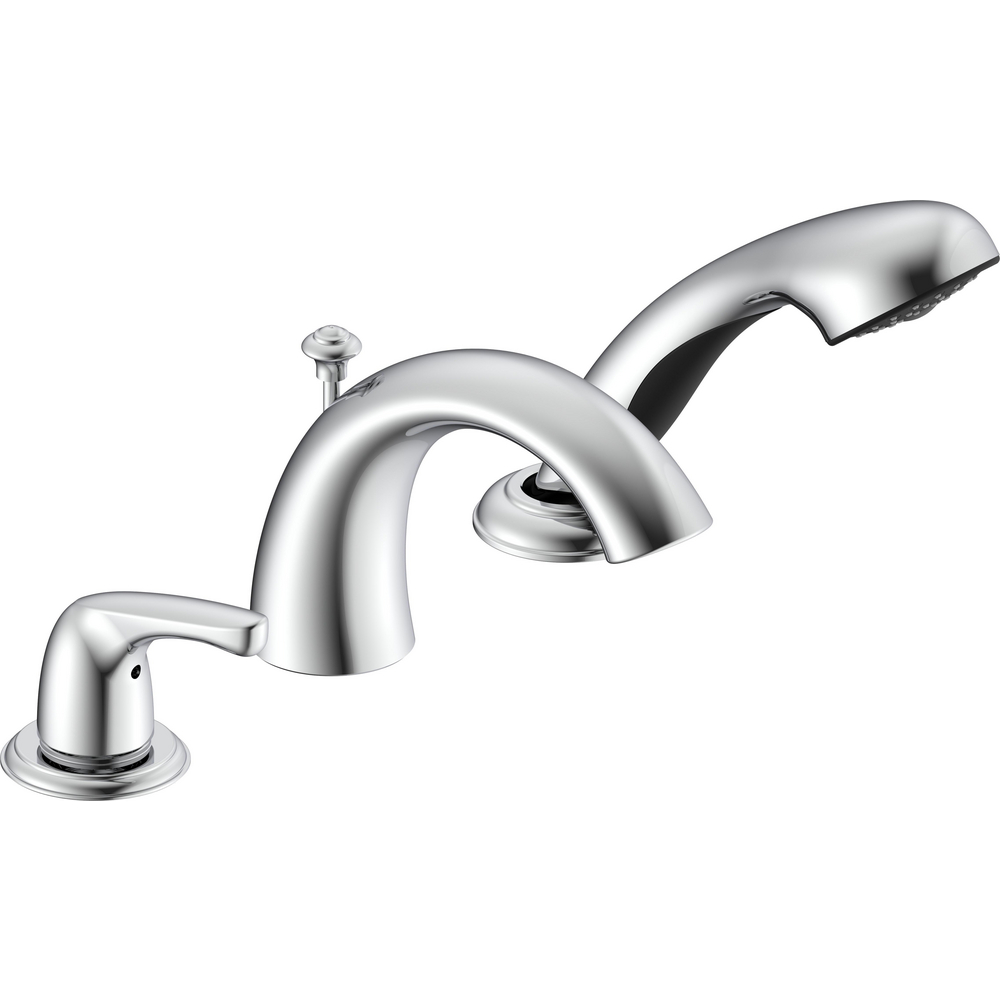

Delta T3716-H20 Classic 3 Hole Roman Tub With Handshower Chrome
3 Hole Classic Roman Tub With Handshower
model#: T3716-H20
Finish: Chrome
Installation Information
Number of Handles: Single handle
Valve Type: Single-function pressure balance cartridge
STANDARD SPECIFICATIONS:
Hand Shower maximum flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa.
Trim only for single handle Roman Tub Faucet with Hand Shower.
Temperature only controlled with handle.
Hot/cold indicator.
Rough-in Kit must be ordered to complete installation:
R3707, R3707-MF and R3707-PX for flexible rough-in.
R3716, R3716-MF and R3716-PX for fixed rough-in.
There are separate specification sheets on each rough-in kit, if more detail is required.
Hand Shower includes double check valves for backflow prevention.
COMPLETE VALVE COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates ADA compliance to ICC/ANSI A117.1 – Valve Only
