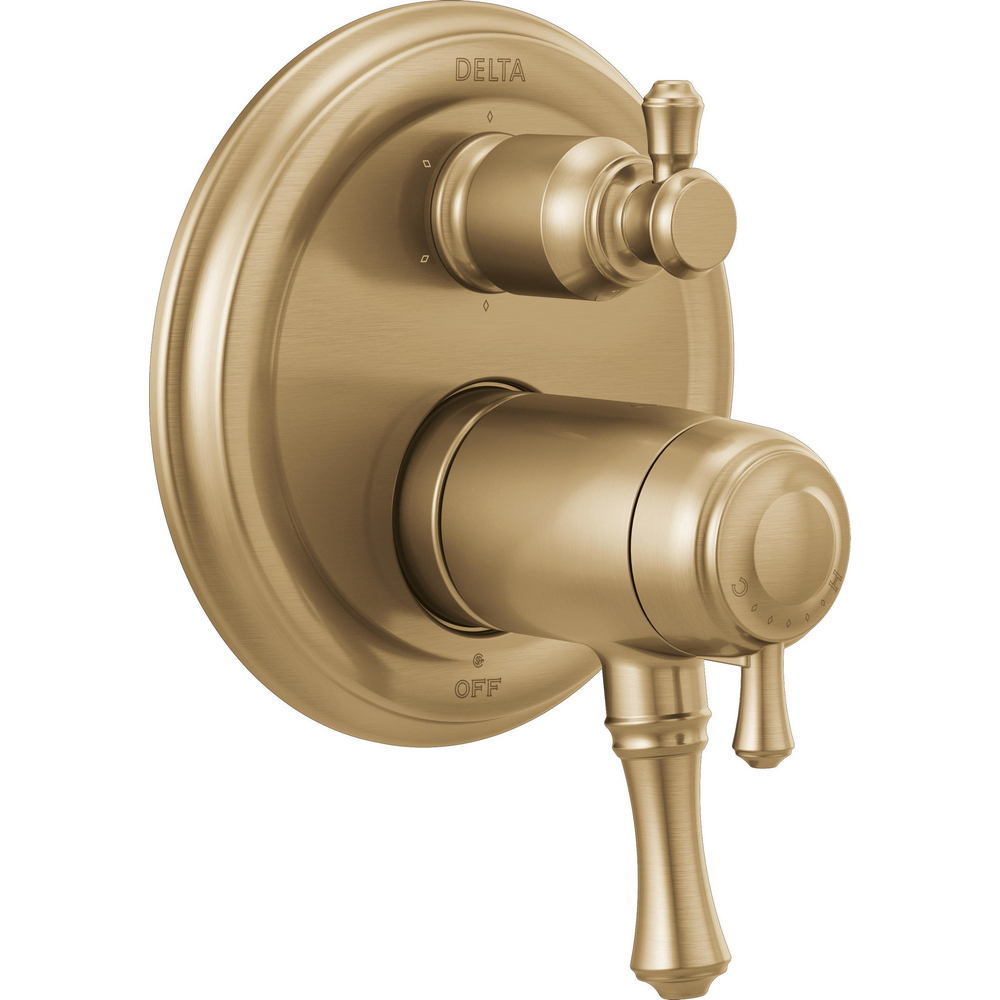

Delta T27T997-CZ Traditional TempAssure 17T Series Valve Trim Champagne Bronze
DELTA
Traditional TempAssure 17T Series Valve Trim with 6-Setting Integrated Diverter
model#: T27T997-CZ
Finish: Champagne Bronze
The Delta MultiChoice Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The traditional round style lends a timeless feel to your space. With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer.
With the MultiChoice Universal system, you have the freedom to upgrade style and functionality later. And, because there's no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates. Delta's dual-function thermostatic valve cartridge keeps water temperature consistent (within 3.6°) by actually measuring and monitoring the temperature of the water. Temperature can be set in order to remain consistent shower after shower.
6-Setting diverter trim
2-handle trim with separate temperature dial
Control volume and water temperature independently with two separate handles for more refined control of your shower experience
TempAssure Thermostatic cartridge measures and monitors the temperature of the water and automatically adjusts to maintain a more precise water temperature
Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
Recommended rough-in valve kit R22000 sold separately
Meets standards set by Americans with Disabilities Act (ADA)
Bottom handle 90° Maximum rotation
Red/blue indicator markings
Installation Information
Number of Handles: Two handles
Over All Height: 8-15/16
Valve Type: NA
STANDARD SPECIFICATIONS:
Main control utilizes dual-function Thermostatic Valve cartridge
Thermostatic wax element maintains the outlet temperature to ±3.6˚F
For use with MultiChoice® Universal integrated shower diverter rough valve body (R22000 Series)
Top handle controls diverter functions
Bottom handle controls on/off and adjusts volume; dial controls temperature
Field adjustable to limit bottom handle rotation into hot water zone
Bottom handle 90° Maximum rotation
Hot/cold indicator markings
Three function diverter for 2 individual positions, 1 shared position
For two individual functions, no shared functions, order additional RP71717
Six function diverter for 3 individual positions, 3 shared positions
For three individual functions, no shared functions, order additional RP71718
1/2" rough-in
Cartridges included

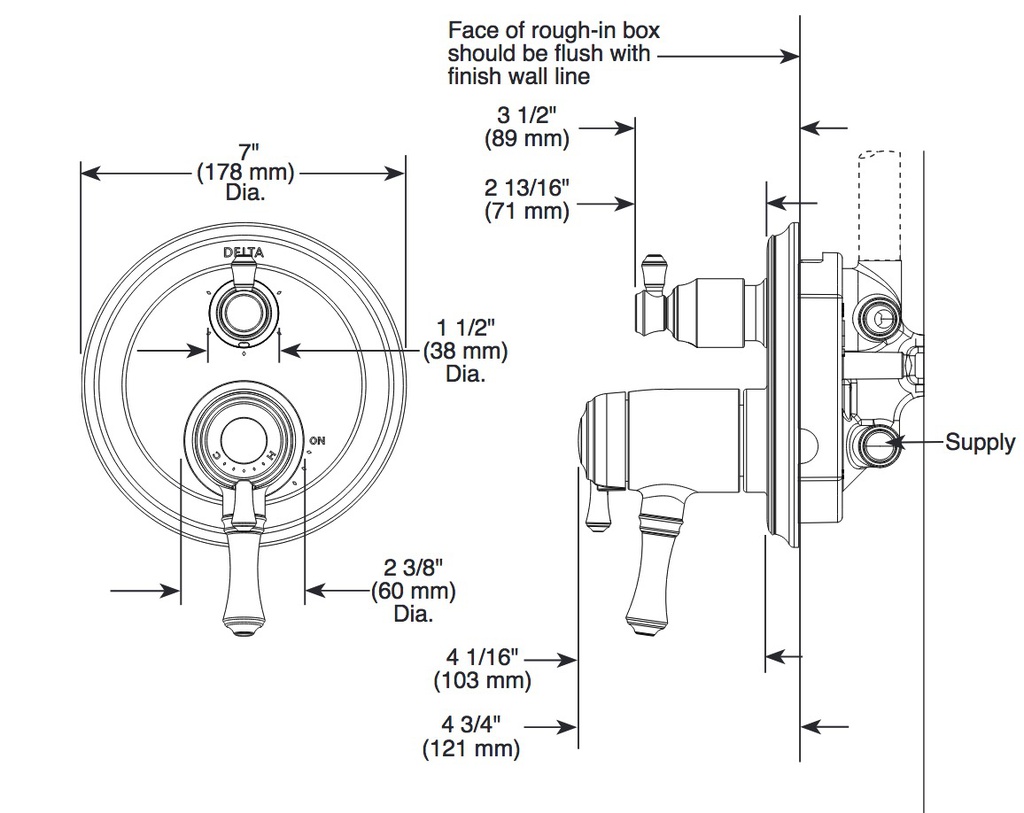

Standard installation allows up to 1-1/8" finished wall thickness
Thick wall installation kit (RP90544) can be ordered to allow for up to 2-1/8" finished wall thickness
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1
