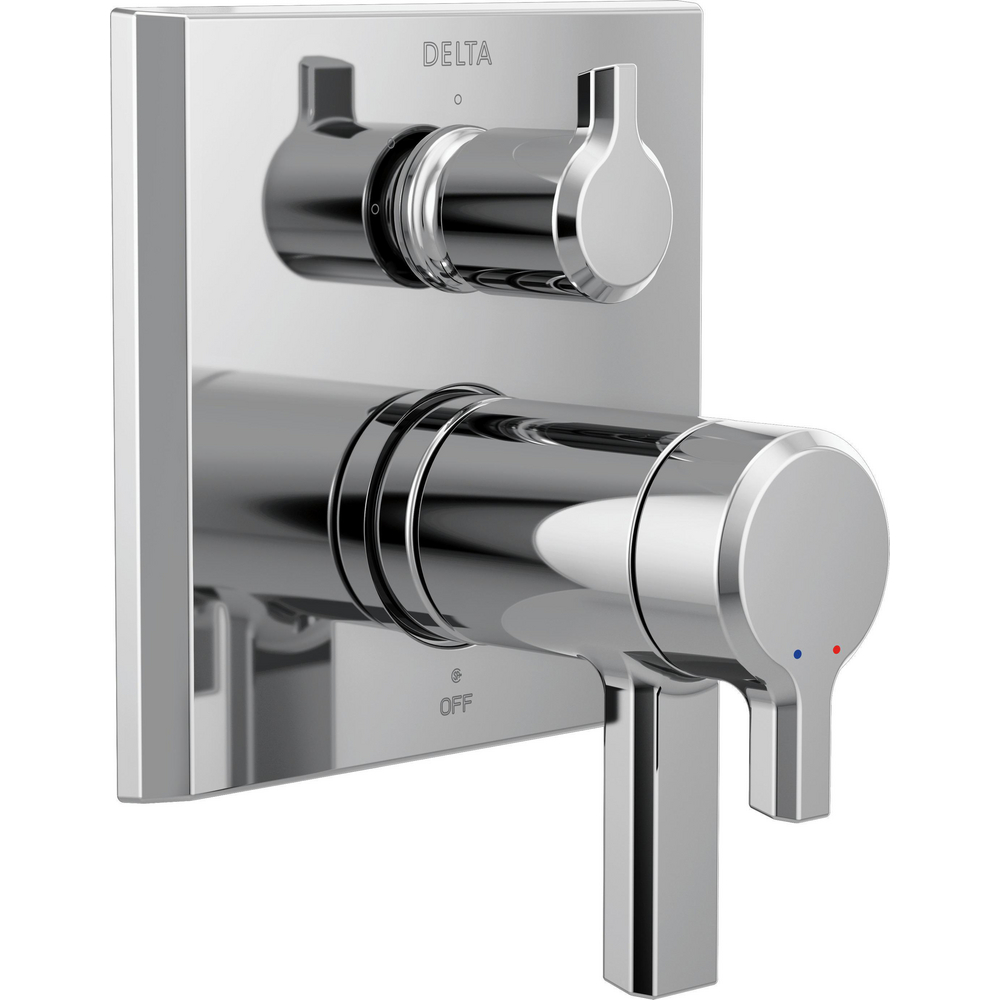

Delta T27T899-PR Pivotal 17T Series Valve Trim with 3-Setting Diverter Lumicoat Chrome
PIVOTAL
TempAssure 17T Series Valve Trim with 3-Setting Integrated Diverter
model#: T27T899-PR
Finish: Lumicoat Chrome
Valve is not included, must purchase separately
3 setting diverter: 2 individual positions, 1 shared
The confident slant of the Pivotal Bath Collection makes it a striking addition to a bathroom's contemporary geometry for a look that makes a statement. The Delta MultiChoice Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve.
With separate handles for volume and temperature control, this Delta shower trim diverter provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. Delta thermostatic valves use TempAssure Technology to protect you and your family from sudden temperature changes. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
3-Setting diverter trim
2-handle trim with separate temperature dial
Control volume and water temperature independently with two separate handles for more refined control of your shower experience
TempAssure Thermostatic cartridge measures and monitors the temperature of the water and automatically adjusts to maintain a more precise water temperature
Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
Recommended rough-in valve kit R22000 sold separately
Meets standards set by Americans with Disabilities Act (ADA)
Bottom handle 90° Maximum rotation
Red/blue indicator markings
Installation Information
Number of Handles: Two handles

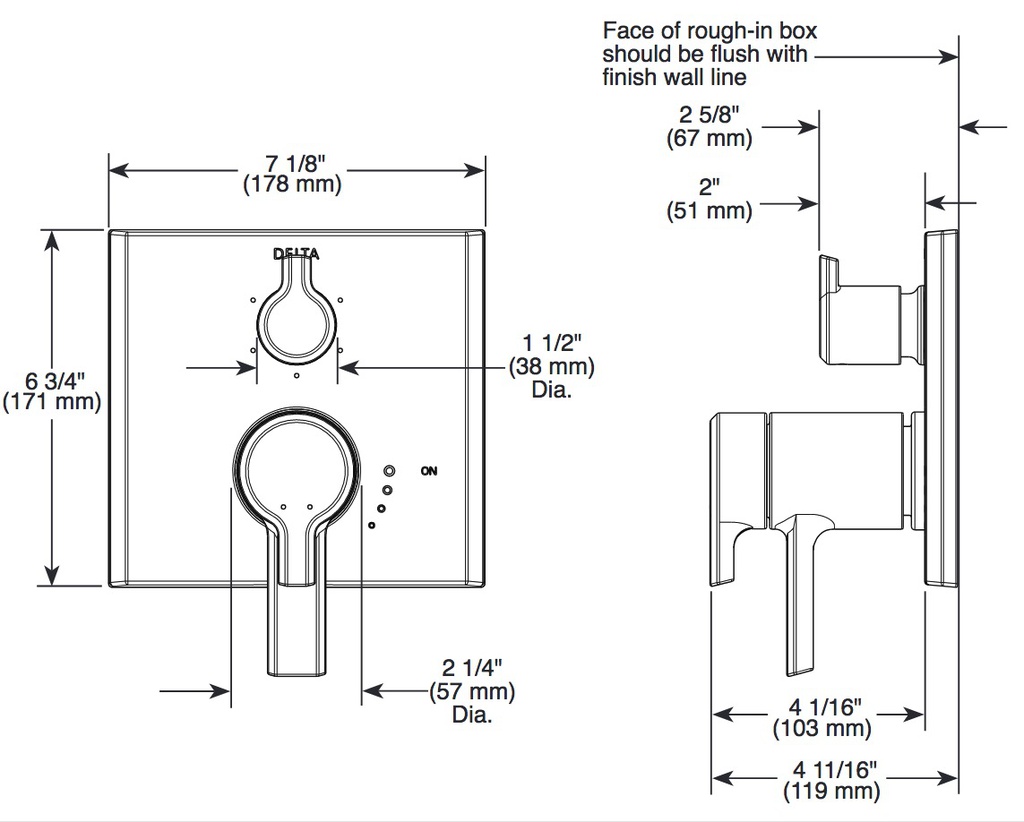

Over All Height: 8-15/16
Valve Type: NA
STANDARD SPECIFICATIONS:
Main control utilizes dual-function Thermostatic Valve cartridge
Thermostatic wax element maintains the outlet temperature to ±3.6˚F
For use with MultiChoice® Universal integrated shower diverter rough valve body (R22000 Series)
Maximum system flow rate 7.2 gpm @ 60 psi with R22000
Top handle controls diverter functions
Bottom handle controls on/off and adjusts volume; dial controls temperature
Field adjustable to limit bottom handle rotation into hot water zone
Bottom handle 90° Maximum rotation
Hot/cold indicator markings
Three function diverter for 2 individual positions, 1 shared position
For two individual functions, no shared functions, order additional RP71717
Six function diverter for 3 individual positions, 3 shared positions
For three individual functions, no shared functions, order additional RP71718
1/2" rough-in
Cartridges included
Standard installation allows up to 1-1/8" finished wall thickness
Thick wall installation kit (RP90544) can be ordered to allow for up to 2-1/8" finished wall thickness
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1
