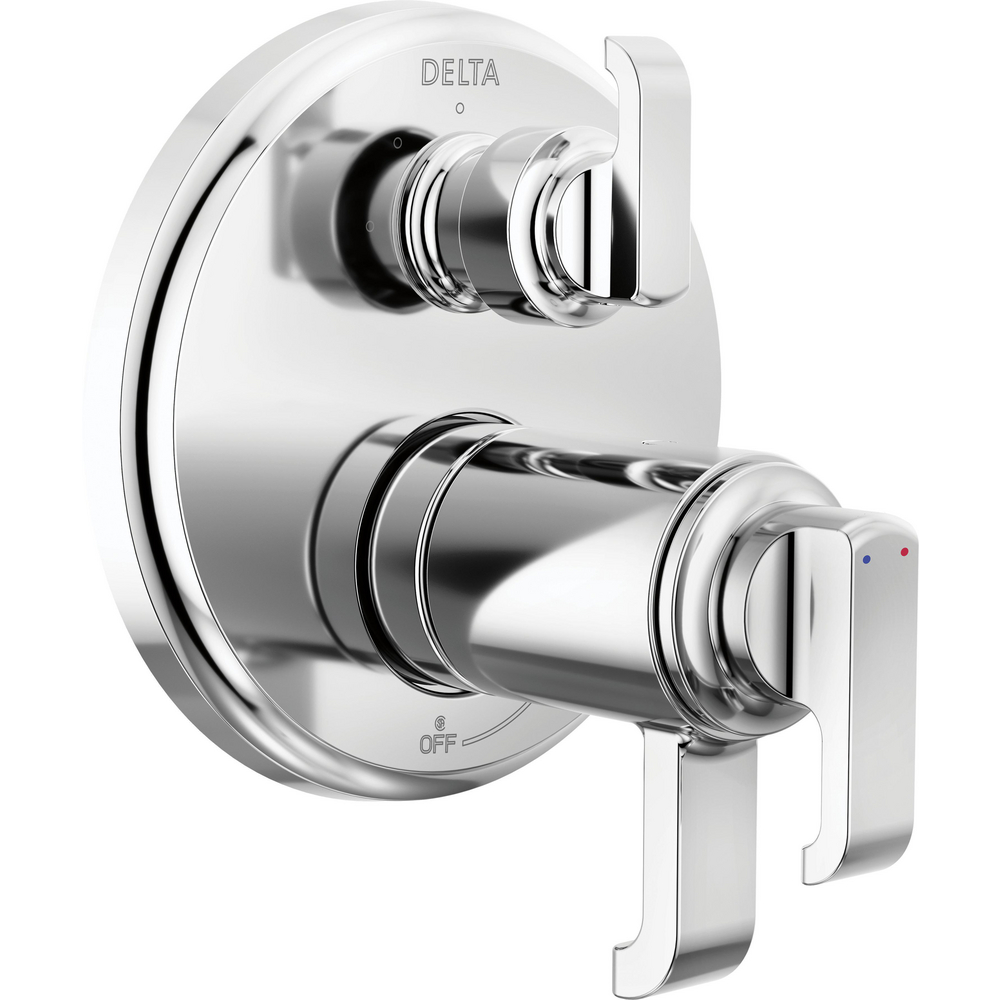

Delta T27T889-PR Tetra 17T Series Integrated Diverter Trim Lumicoat Chrome
TETRA
TempAssure 17T Series Integrated Diverter Trim with 3-Setting
model#: T27T889-PR
Finish: Lumicoat Chrome
Familiar geometries and subtle curves in the Tetra Bath Collection combine to bring a sleek, architectural look and feel to the bath. Delta showers with TempAssure thermostatic valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine.
Integrating separate controls on one trim with the MultiChoice Integrated Shower Diverter allows you to simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. You can install with confidence, knowing Delta products are backed by our Lifetime Limited Warranty.
TempAssure thermostatic valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
MultiChoice Integrated Shower Diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
3-function diverter offers 2 individual positions and 1 shared position
Trim kit only, must order MultiChoice Universal valve rough (R22000) separately to complete the unit
Top handle controls diverter functions
Bottom handle controls on/off and adjusts volume, while the dial controls temperature
Cartridges included
ADA Compliant
Backed by Delta Faucet's Lifetime Limited Warranty

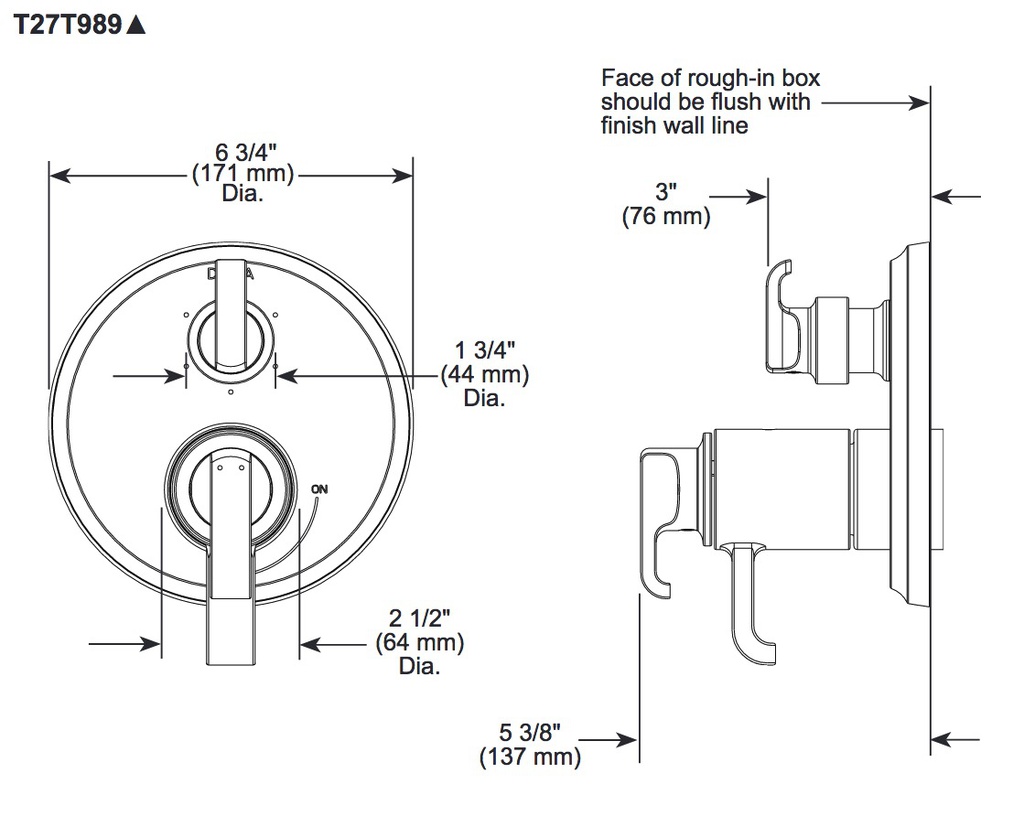

Installation Information
Over All Height: 6-3/4
Valve Type: NA
STANDARD SPECIFICATIONS:
Main control utilizes Thermostatic Valve cartridge
Thermostatic wax element maintains the outlet temperature to ±3.6˚F
For use with MultiChoice® Universal integrated shower diverter rough valve body (R22000 Series)
Maximum system flow rate 7.2 gpm @ 60 psi with R22000
Top handle controls diverter functions
Bottom handles (2) control on/off and temperature
Field adjustable to limit bottom handle rotation into hot water zone
Bottom handle 90° Maximum rotation
Red/blue indicator markings
Three function diverter for 2 individual positions, 1 shared position
For two individual functions, no shared functions, order additional RP71717
Six function diverter for 3 individual positions, 3 shared positions
For three individual functions, no shared functions, order additional RP71718
1/2" rough-in
Cartridges included
Standard installation allows up to 1-1/8" finished wall thickness
Thick wall installation kit RP90544 can be ordered to allow for up to 2-1/8" finished wall thickness
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1
