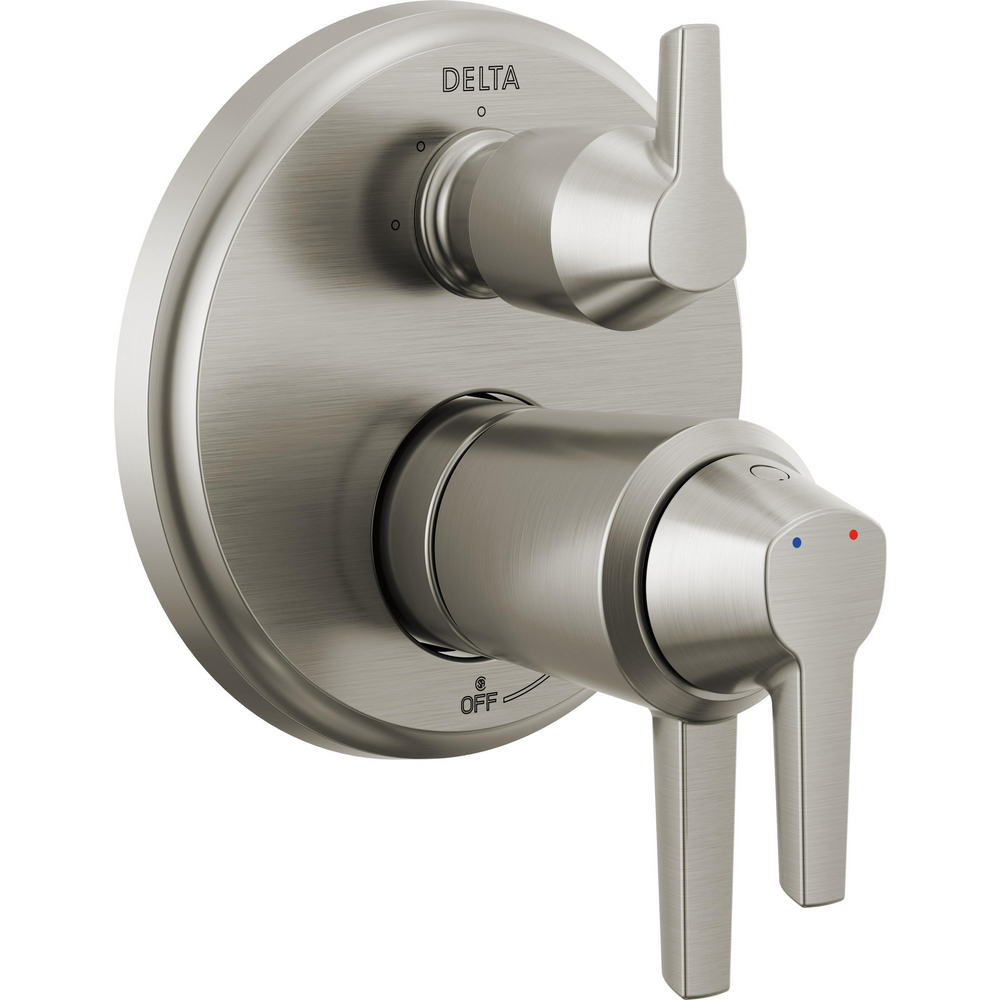

Delta T27T871-SS-PR Galeon 17T S Integrated Diverter Trim 3-Setting Lumicoat Stainless
GALEON
17T S Integrated Diverter Trim-3 Setting
model#: T27T871-SS-PR
Finish: Lumicoat Stainless
With a design inspired by the shape of sailboats, the Galeon Bath Collection brings a chiseled, contemporary look into the bath. Delta showers with TempAssure thermostatic valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine.
By integrating separate controls on one trim with the MultiChoice Integrated Shower Diverter, we've streamlined installation and your shower style. With separate volume and temperature control on this model, simply set the water at your preferred temperature and turn the shower on or off with the volume control handle ' without interrupting your set temperature. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
Delta MultiChoice Integrated Shower Diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
Top handle controls diverter functions
Bottom handle controls on/off and adjusts volume, while the dial controls temperature
3-position diverter
2 individual and 1 shared position
Order cartridge RP71717 (sold separately) for 2 individual positions only and no shared positions
TempAssure 17T Series dual-function thermostatic cartridge
TempAssure thermostatic valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
Trim kit only, must order MultiChoice Universal integrated diverter rough separately to complete the unit
Rough-in valve body (R22000 series) sold separately
ADA Compliant

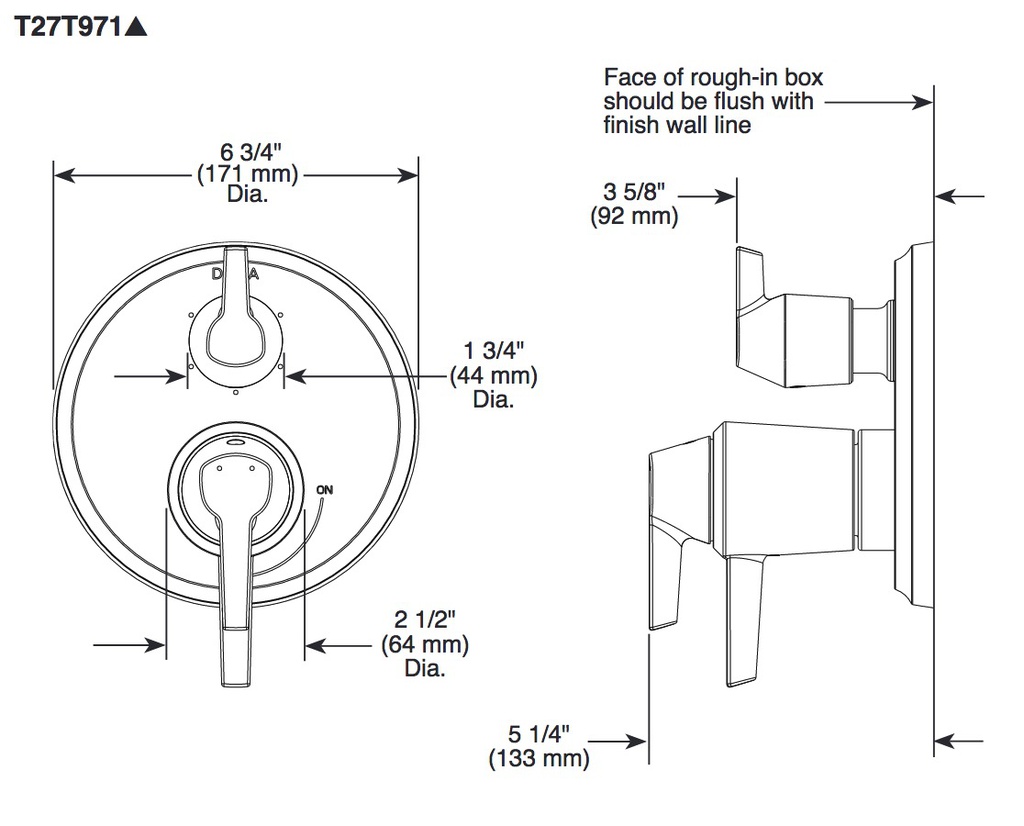

Standard installation allows up to 1-1/8 inch finished wall thickness
Thick wall installation kit can be ordered separately to allow for up to 2-1/8 inch finished wall thickness
Backed by Delta Faucet's Lifetime Limited Warranty
Installation Information
Number of Handles: Two handles
Over All Height: 6-3/4
Valve Type: NA
STANDARD SPECIFICATIONS:
Main control utilizes Thermostatic Valve cartridge
Thermostatic wax element maintains the outlet temperature to ±3.6˚F
For use with MultiChoice® Universal integrated shower diverter rough valve body (R22000 Series)
Maximum system flow rate 7.2 gpm @ 60 psi with R22000
Top handle controls diverter functions
Bottom handles (2) control on/off and temperature
Field adjustable to limit bottom handle rotation into hot water zone
Bottom handle 90° Maximum rotation
Red/blue indicator markings
Three function diverter for 2 individual positions, 1 shared position
For two individual functions, no shared functions, order additional RP71717
Six function diverter for 3 individual positions, 3 shared positions
For three individual functions, no shared functions, order additional RP71718
1/2" rough-in
Cartridges included
Standard installation allows up to 1-1/8" finished wall thickness
Thick wall installation kit RP90544 can be ordered to allow for up to 2-1/8" finished wall thickness
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1
