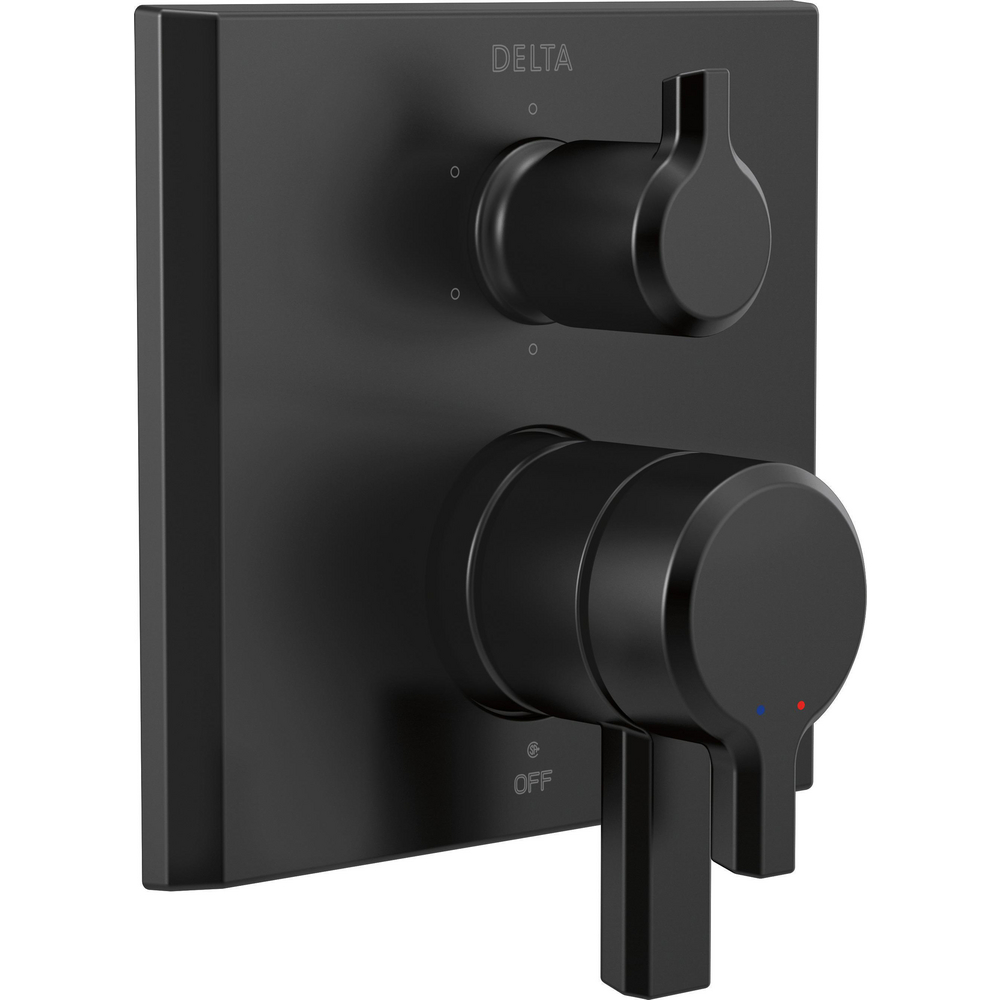

Delta T27999-BL Pivotal 17 Series Integrated Diverter Trim 6 Function Diverter Matte Black
PIVOTAL
Monitor 17 Series Valve Trim with 6-Setting Integrated Diverter
model#: T27999-BL
Finish: Matte Black
Valve is not included, must purchase separately
6 setting diverter: 3 individual positions, 3 shared positions
The confident slant of the Pivotal Bath Collection makes it a striking addition to a bathroom's contemporary geometry for a look that makes a statement. With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience.
Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. With the MultiChoice Universal system, you have the freedom to upgrade style and functionality later. And, because there's no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates.
Three ports and six settings for three independent and three shared positions
Control volume and water temperature independently with two separate handles for more refined control of your shower experience
Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
Recommended rough-in valve kit R22000 sold separately
Meets standards set by Americans with Disabilities Act (ADA)
Not recommended for tub spout applications
Bottom handle 90° Maximum rotation
Red/blue indicator markings

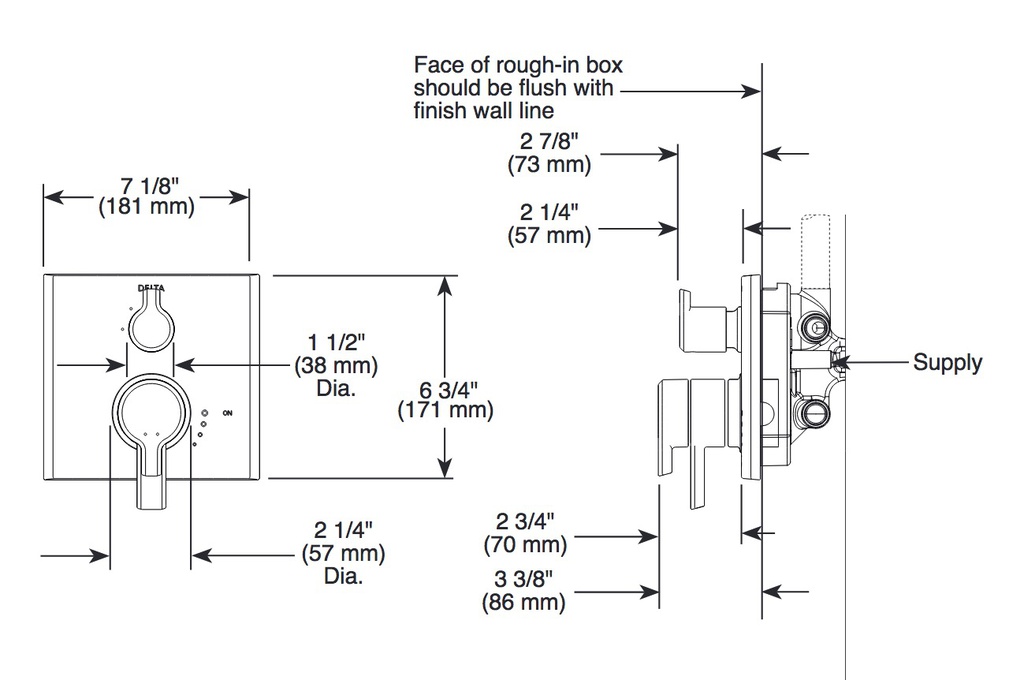

Installation Information
Number of Handles: Single handle
Over All Height: 6-3/4
Valve Type: NA
STANDARD SPECIFICATIONS:
Main control utilizes dual-function pressure balanced cartridge
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice® Universal rough valve body (R22000 Series)
Top handle controls diverter functions
Bottom handle controls on/off and adjusts volume; dial controls temperature
Field adjustable to limit handle rotation into hot water zone
Bottom handle 90° Maximum rotation
Red/Blue indicator markings
Three function diverter for 2 individual positions, 1 shared position
For two individual functions, no shared functions, order additional RP71717
Six function diverter for 3 individual positions, 3 shared positions
For three individual functions, no shared functions, order additional RP71718
Cartridges included
Standard installation allows up to 11/8" finished wall thickness
Thick wall installation kit (RP90543) can be ordered to allow for up to 2 1/8" finished wall thickness
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1
