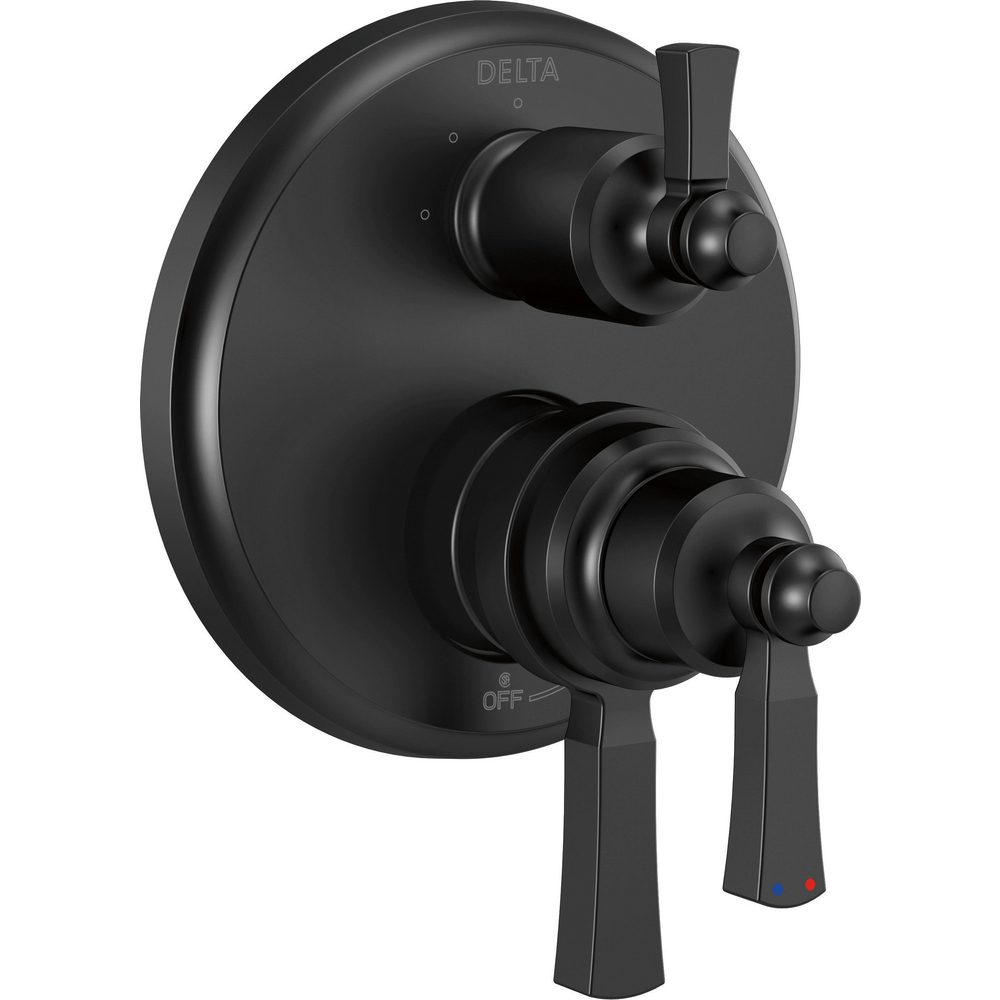

Delta T27856-BL Dorval 17 Series Valve Trim with 3 Setting Diverter Matte Black
DORVAL
Traditional 2-Handle Monitor 17 Series Valve Trim with 3 Setting Diverter
model#: T27856-BL
Finish: Matte Black
The Dorval Bathroom Collection diverges from conventional expectations with regal accents and a powerful design that commands your attention. Inspired by the feminine lines of French architecture and the regal stature of German castles, the Dorval Bath Collection balances grace and power in this modern take on new traditional design.
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. Delta pressure-balance valves use Monitor Technology to protect you and your family from sudden temperature changes.
2 individual positions, 1 shared position
Top handle controls diverter functions
Bottom handle controls on / off and adjusts temperature; dial controls temperature
Monitor pressure balance valve keeps water temperature within a safe ±3° F (±1.6° C), helping to protect you from sudden changes in hot or cold water pressure
Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
Recommended rough-in kit R22000
ADA Compliant

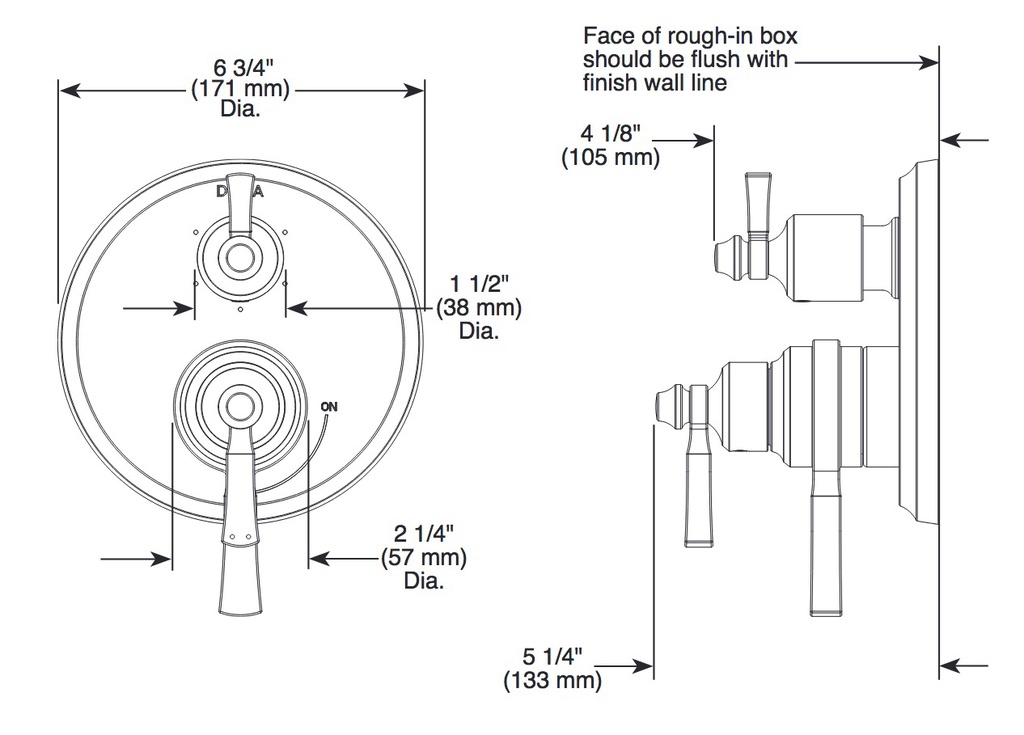

Installation Information
Number of Handles: Single handle
Over All Height: 8-1/2
Valve Type: NA
STANDARD SPECIFICATIONS:
Main control utilizes dual-function pressure balanced cartridge
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice® Universal rough valve body (R22000 Series)
Top handle controls diverter functions
Bottom handle controls on/off and adjusts volume; dial controls temperature
Field adjustable to limit handle rotation into hot water zone
Bottom handle 90° Maximum rotation
Red/Blue indicator markings
Three function diverter for 2 individual positions, 1 shared position
For two individual functions, no shared functions, order additional RP71717
Six function diverter for 3 individual positions, 3 shared positions
For three individual functions, no shared functions, order additional RP71718
Cartridges included
Standard installation allows up to 11/8" finished wall thickness
Thick wall installation kit (RP90543) can be ordered to allow for up to 2 1/8" finished wall thickness
Maximum system flow rate 5.8 gpm at 60 psi with R22000
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1
