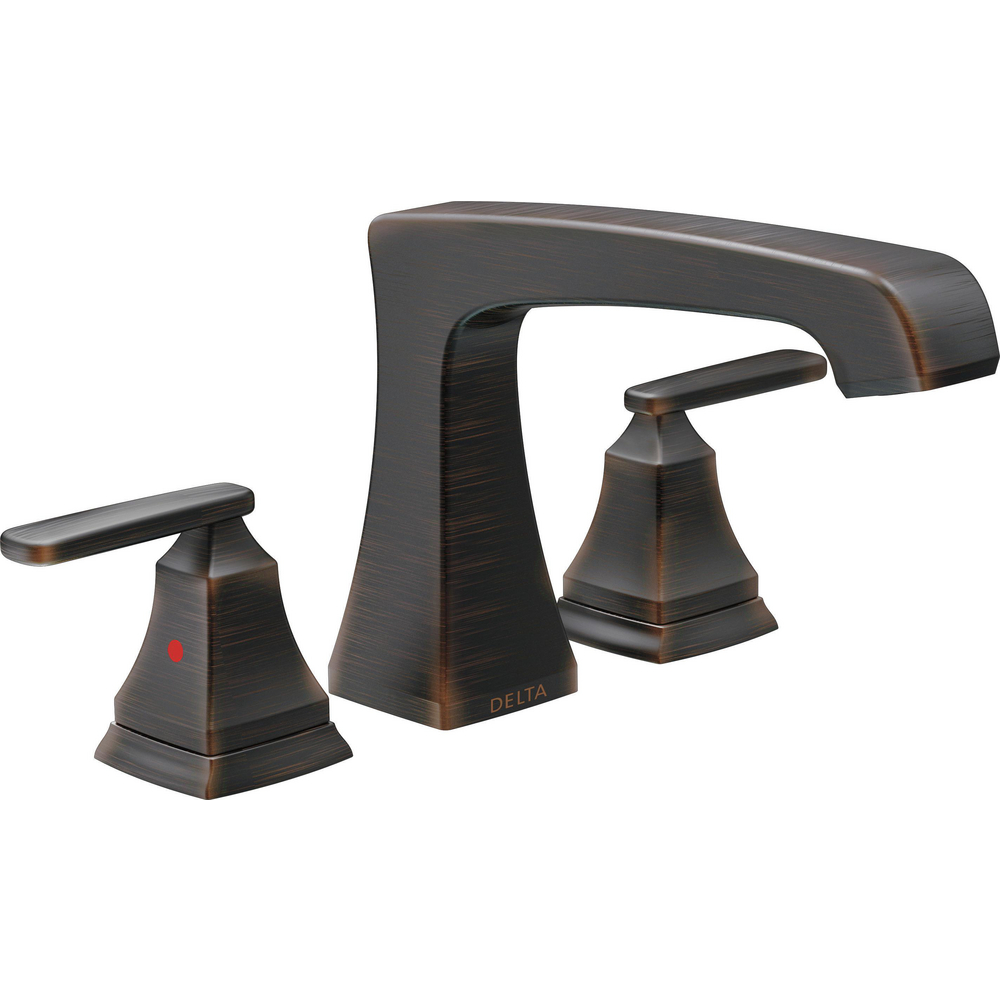

Delta T2764-RB Ashlyn Roman Tub Trim Venetian Bronze
ASHLYN
Roman Tub Trim
model#: T2764-RB
Finish: Venetian Bronze
Complete your bath with a beautifully designed Delta roman tub faucet, meticulously crafted to turn heads and enhance your experience. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility.
Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
ADA Compliant
Trim kit only, must purchase rough-in R2707 separately to complete the unit
Alternative rough options: R2707-PX (pex crimp applications), R2707-MF (memory fitting/cold expansion applications)
3-hole 8-16" installation
Rigid slip-on spout

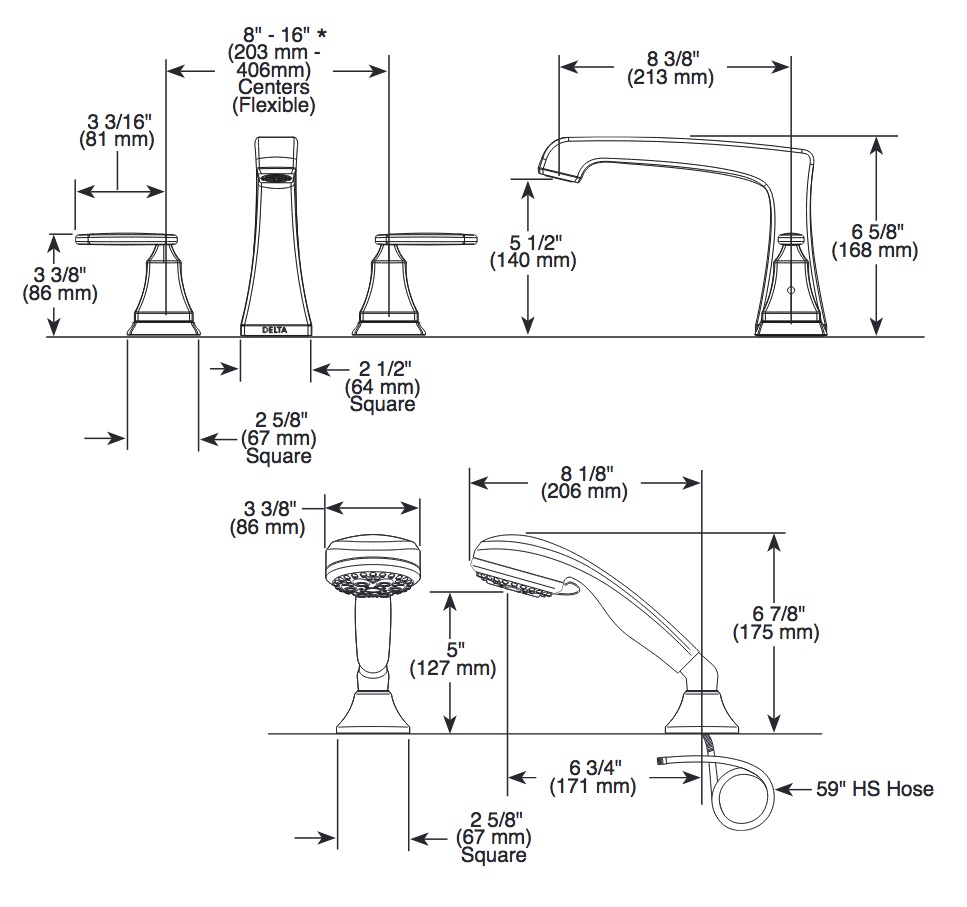

Installation Information
Number of Handles: Two handles
Flow Rate: 18.0 gpm @ 80 psi, 68.1 L/min @ 552 kPa
Spout Height: 6-5/8"
Spout Length: 8-3/8"
Deck to Outlet: 5-1/2"
Valve Type: Washerless stem cartridge
Over All Height: 6-5/8
STANDARD SPECIFICATIONS:
Handshower maximum flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Trim only for two handle Roman Tub faucet for concealed mounting
Temperature and volume controlled with handles
Rough-In kit must also be ordered to complete installation
-R4707 for four hole
-R2700 or R2707 for three hole
-RP23601 for three hole 10" fixed installation
There are separate specification sheets on each rough-in kit if more details are required
Handshower includes double check valves for backflow prevention (T4764)
COMPLETE VALVE COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense® - Applies to handshower only – RP77861
