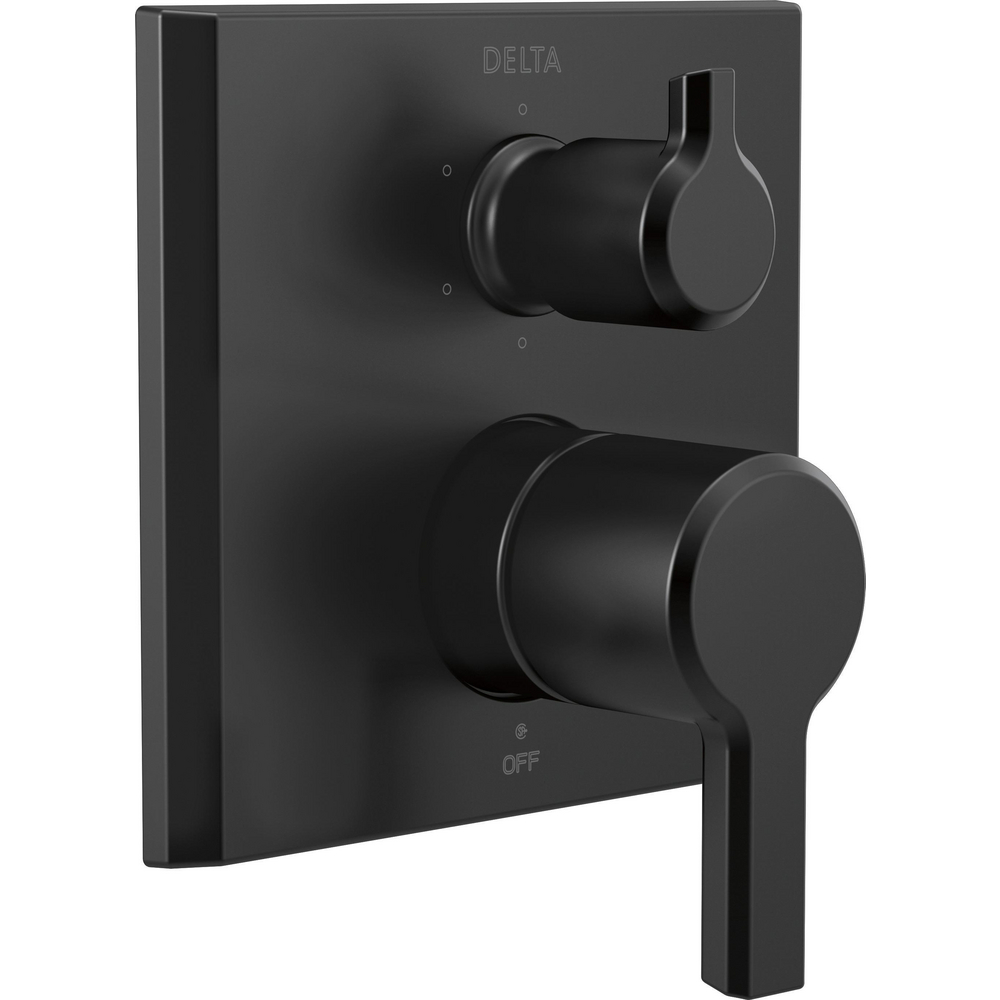

Delta T24999-BL Pivotal 14 Series Valve Trim with 6-Setting Matte Black
PIVOTAL
Monitor 14 Series Valve Trim with 6-Setting Integrated Diverter
model#: T24999-BL
Finish: Matte Black
Valve is not included, must purchase separately
6 setting diverter: 3 individual positions, 3 shared positions
The confident slant of the Pivotal Bath Collection makes it a striking addition to a bathroom's contemporary geometry for a look that makes a statement. By integrating separate controls on one trim with the MultiChoice Integrated Shower Diverter, we've streamlined installation and your shower style.
With the MultiChoice Universal system, you have the freedom to upgrade style and functionality later. And, because there's no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates.
Delta MultiChoice Integrated Shower Diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
Three ports and three settings for three independent and three shared position
Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
Recommended rough-in valve kit R22000 sold separately
Meets standards set by Americans with Disabilities Act (ADA)
Not recommended for tub spout applications
Bottom handle 120° Maximum rotation
Red/blue indicator markings

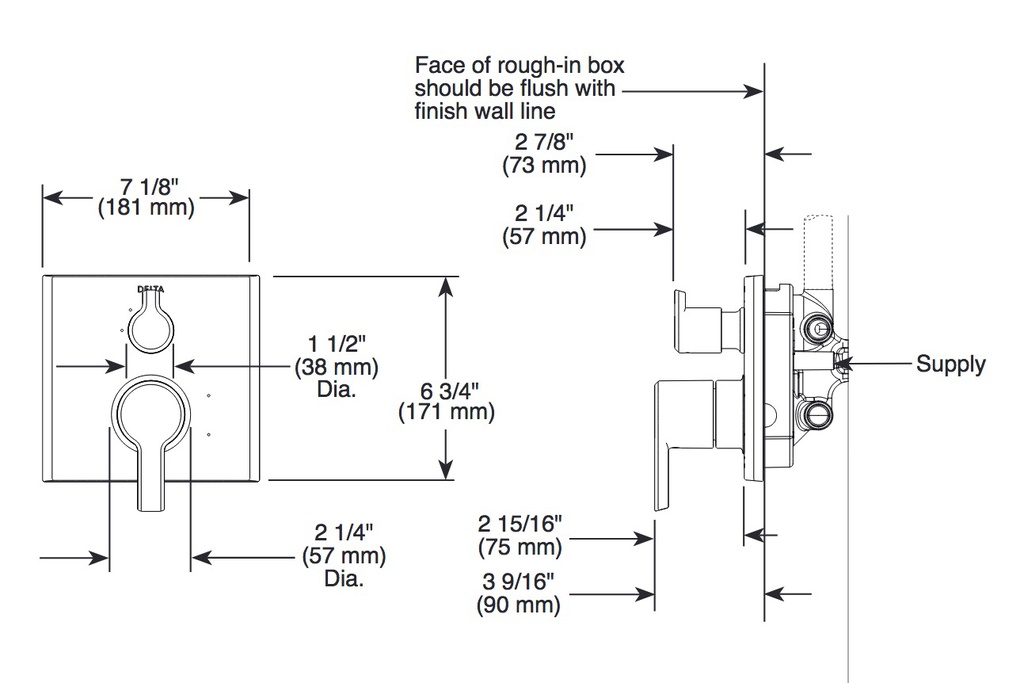

Installation Information
Number of Handles: Single handle
Over All Height: 6-3/4
Valve Type: NA
STANDARD SPECIFICATIONS:
Main control utilizes single-function pressure balanced cartridge.
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R22000 Series)
Top handle controls diverter functions.
Bottom handle controls on/off and temperature.
Field adjustable to limit handle rotation into hot water zone.
Bottom handle 120° Maximum rotation.
Red/Blue indicator markings.
Three function diverter for 2 individual positions, 1 shared position.
For two individual functions, no shared functions, order additional RP71717.
Six function diverter for 3 individual positions, 3 shared positions.
For three individual functions, no shared functions, order additional RP71718.
Cartridges included.
Standard installation allows up to 11/8" finished wall thickness.
Thick wall installation kit (RP90542) can be ordered to allow for up to 2 1/8" finished wall thickness
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1
