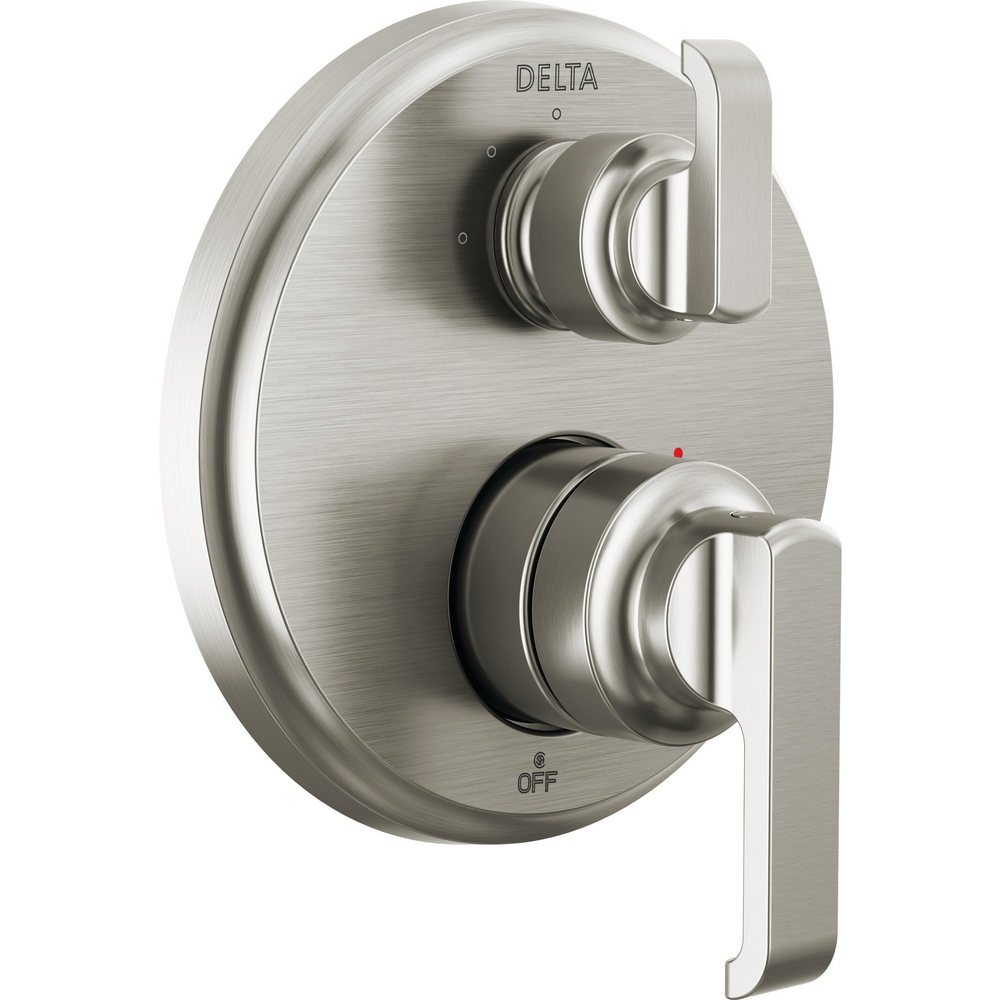

Delta T24889-SS-PR Tetra 14 Series Integrated Diverter Trim 3-Setting Lumicoat Stainless
TETRA
14 Series Integrated Diverter Trim with 3-Setting
model#: T24889-SS-PR
Finish: Lumicoat Stainless
Familiar geometries and subtle curves in the Tetra Bath Collection combine to bring a sleek, architectural look and feel to the bath. Familiar geometries and subtle curves in the Tetra Bath Collection combine to bring a sleek, architectural look and feel to the bath.
Delta showers with Monitor pressure-balance valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine.
By integrating separate controls on one trim with the MultiChoice Integrated Shower Diverter, we've streamlined installation and your shower style. You can install with confidence, knowing Delta products are backed by our Lifetime Limited Warranty.
Monitor pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
MultiChoice Integrated Shower Diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
3-function diverter offers 2 individual positions and 1 shared position
Trim kit only, must order MultiChoice Universal valve rough (R22000) separately to complete the unit
Top handle controls diverter functions
Bottom handle controls on/off and temperature
Cartridges included
ADA Compliant
Backed by Delta Faucet's Lifetime Limited Warranty

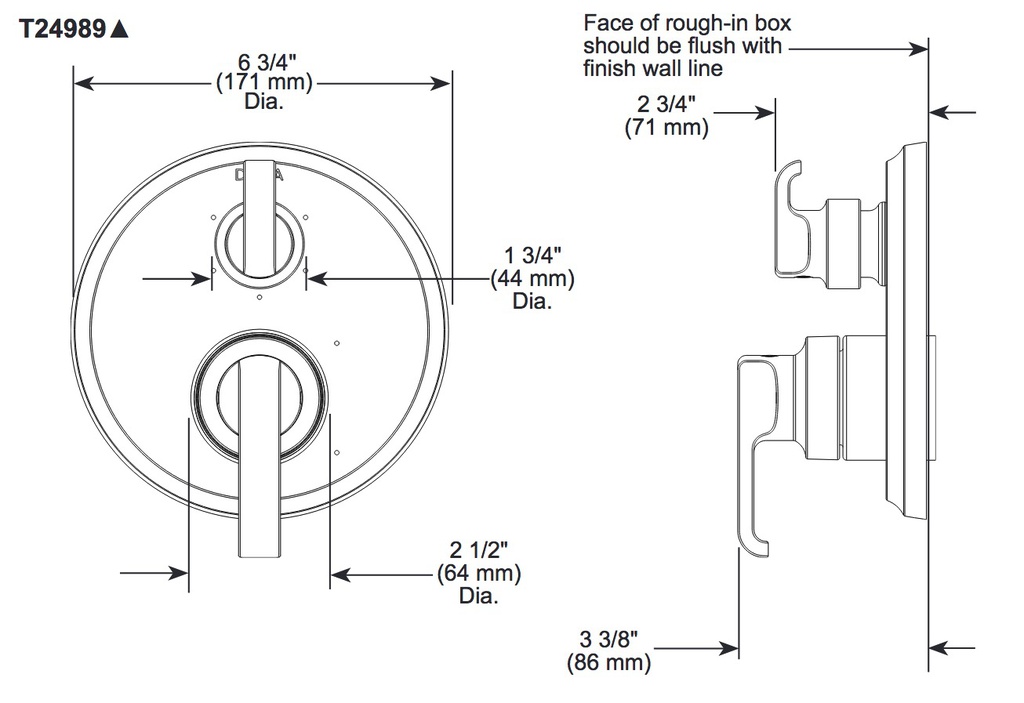

Installation Information
Number of Handles: Two handles
Over All Height: 6-3/4
Valve Type: NA
STANDARD SPECIFICATIONS:
Main control utilizes single-function pressure balanced cartridge.
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R22000 Series)
Top handle controls diverter functions.
Bottom handle controls on/off and temperature.
Field adjustable to limit handle rotation into hot water zone.
Bottom handle 120° Maximum rotation.
Red/Blue indicator markings.
Three function diverter for 2 individual positions, 1 shared position.
For two individual functions, no shared functions, order additional RP71717.
Six function diverter for 3 individual positions, 3 shared positions.
For three individual functions, no shared functions, order additional RP71718.
Cartridges included
Standard installation allows up to 11/8" finished wall thickness.
Thick wall installation kit (RP90542) can be ordered to allow for up to 2 1/8" finished wall thickness.
Maximum system flow rate 5.0 gpm at 60 psi with R22000
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1
