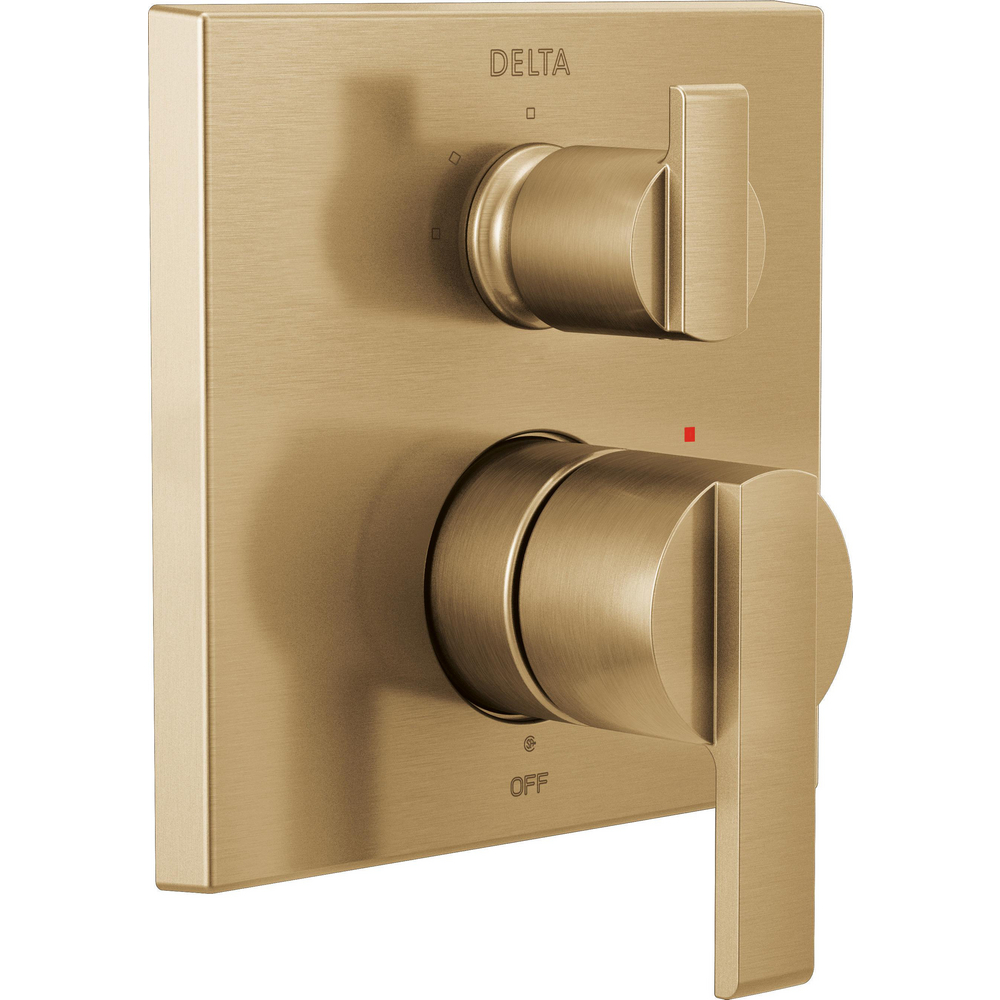

Delta T24867-CZ Monitor 14 Series With 3 Setting Diverter Trim Champagne Bronze
MODERN ANGULAR
Angular Modern Monitor 14 Series Valve Trim with 3-Setting Integrated Diverter
model#: T24867-CZ
Finish: Champagne Bronze
The Delta MultiChoice Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The angular modern style is boldly contemporary, featuring crisp lines for an upscale feel.
With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice Universal system, you have the freedom to upgrade style and functionality later. And, because there's no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates.
3-Setting diverter trim
2-handle trim
Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
Recommended rough-in valve kit R22000 sold separately
Meets standards set by Americans with Disabilities Act (ADA)
Bottom handle 90° Maximum rotation
Red/blue indicator markings
Installation Information
Number of Handles: Two handles
Over All Height: 7-5/8
Valve Type: NA
STANDARD SPECIFICATIONS:
Main control utilizes single-function pressure balanced cartridge.
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R22000 Series)
Top handle controls diverter functions.
Bottom handle controls on/off and temperature.
Field adjustable to limit handle rotation into hot water zone.
Bottom handle 120° Maximum rotation.
Red/Blue indicator markings.
Three function diverter for 2 individual positions, 1 shared position.
For two individual functions, no shared functions, order additional RP71717.
Six function diverter for 3 individual positions, 3 shared positions.
For three individual functions, no shared functions, order additional RP71718.
Cartridges included.

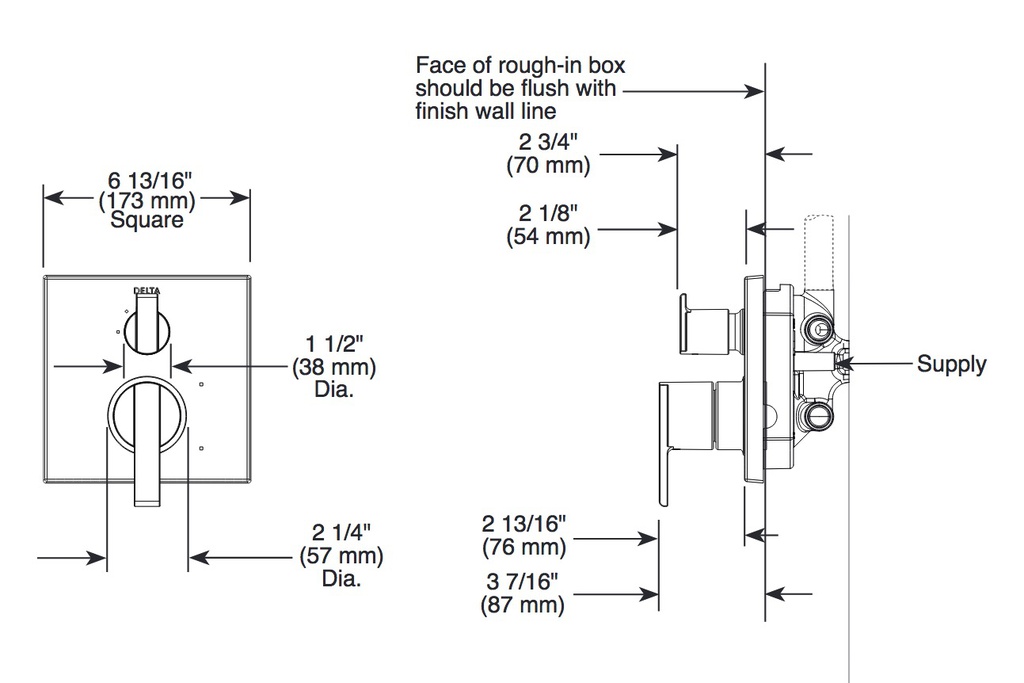

Standard installation allows up to 11/8" finished wall thickness.
Thick wall installation kit (RP90542) can be ordered to allow for up to 2 1/8" finished wall thickness.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1
