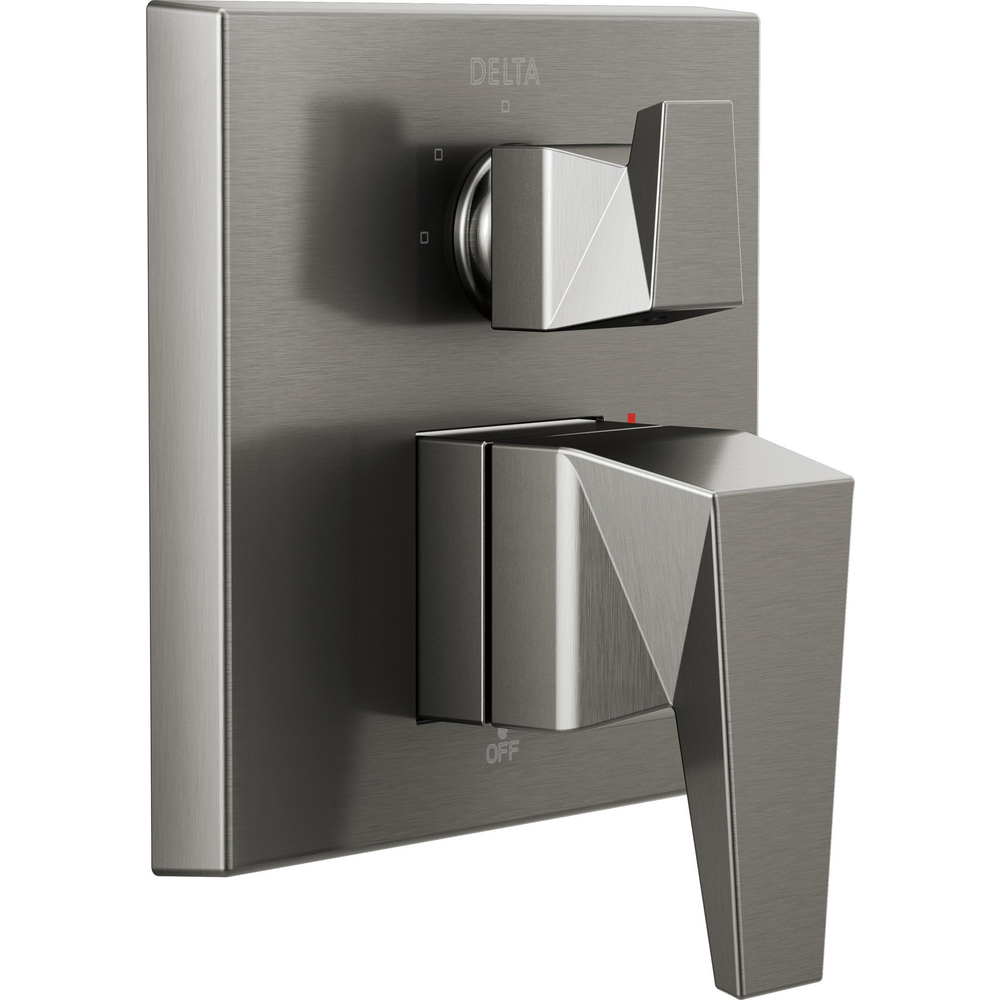

Delta T24843-KS-PR Trillian Monitor 14 Series Valve Trim Lumicoat Black Stainless
TRILLIAN
Two-Handle Monitor 14 Series Valve Trim with 3-Setting Diverter
model#: T24843-KS-PR
Finish: Lumicoat Black Stainless
Shower handle kit only, purchase Delta shower valve separately
3 setting diverter: 2 individual positions, 1 shared position
The prismatic faceting of the Trillian Bath Collection is an evolution of modern style that creates an edgy look which catches the light as well as the eye. Delta showers with Monitor pressure-balance valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine.
By integrating separate controls on one trim with the MultiChoice Integrated Shower Diverter, we've streamlined installation and your shower style. With the MultiChoice Universal system, you have the freedom to upgrade style and functionality later. And, because there's no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
Lumicoat Finishes easily wipe clean and are guaranteed to resist mineral buildup and hard water stains on the product?s most commonly touched areas
Delta MultiChoice Integrated Shower Diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
Top handle controls diverter functions
Bottom handle controls on/off and temperature
2-port, 3-position diverter
2 individual and 1 shared position
Monitor 14 Series single-function pressure balance cartridge
Monitor pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
Trim kit only, must order MultiChoice Universal integrated diverter rough separately to complete the unit
Recommended rough-in valve kit R22000 sold separately
Field adjustable to limit handle rotation into hot water zone
Bottom handle 120° maximum rotation
Red/Blue indicator markings

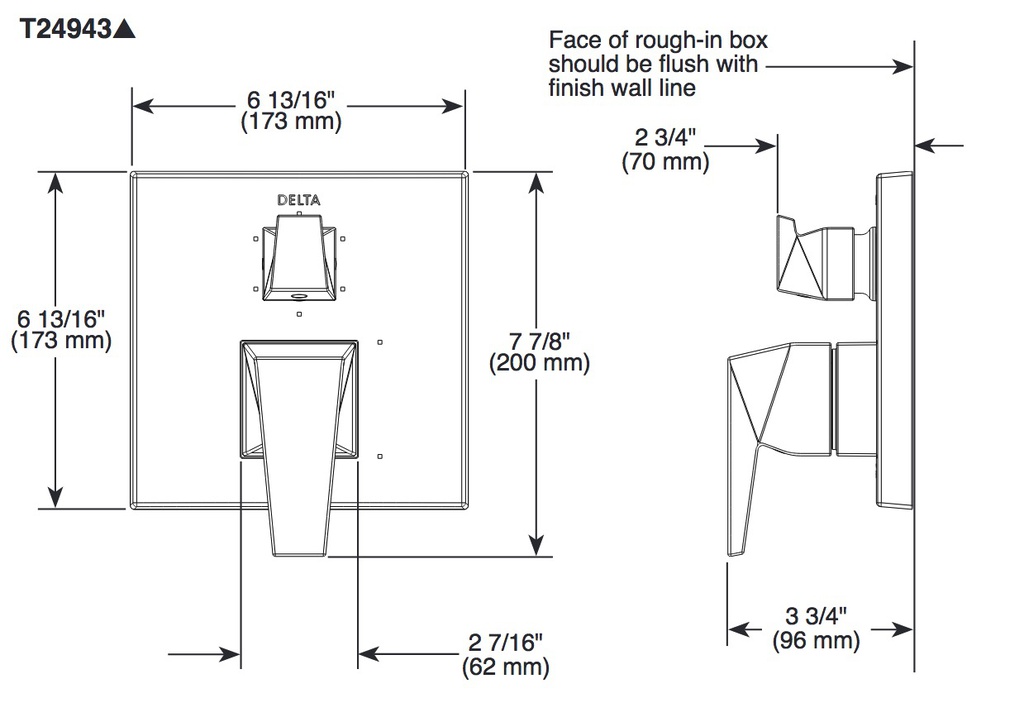

Standard installation allows up to 1-1/8 in. finished wall thickness
ADA Compliant
Installation Information
Number of Handles: Two handles
Over All Height: 6-9/10
Valve Type: NA
STANDARD SPECIFICATIONS:
Main control utilizes single-function pressure balanced cartridge.
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R22000 Series)
Top handle controls diverter functions.
Bottom handle controls on/off and temperature.
Field adjustable to limit handle rotation into hot water zone.
Bottom handle 120° Maximum rotation.
Red/Blue indicator markings.
Three function diverter for 2 individual positions, 1 shared position.
For two individual functions, no shared functions, order additional RP71717.
Six function diverter for 3 individual positions, 3 shared positions.
For three individual functions, no shared functions, order additional RP71718.
Cartridges included.
Standard installation allows up to 11/8" finished wall thickness.
Thick wall installation kit (RP90542▲) can be ordered to allow for up to 2 1/8" finished wall thickness.
Maximum system flow rate 5.0 gpm at 60 psi with R22000
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1
