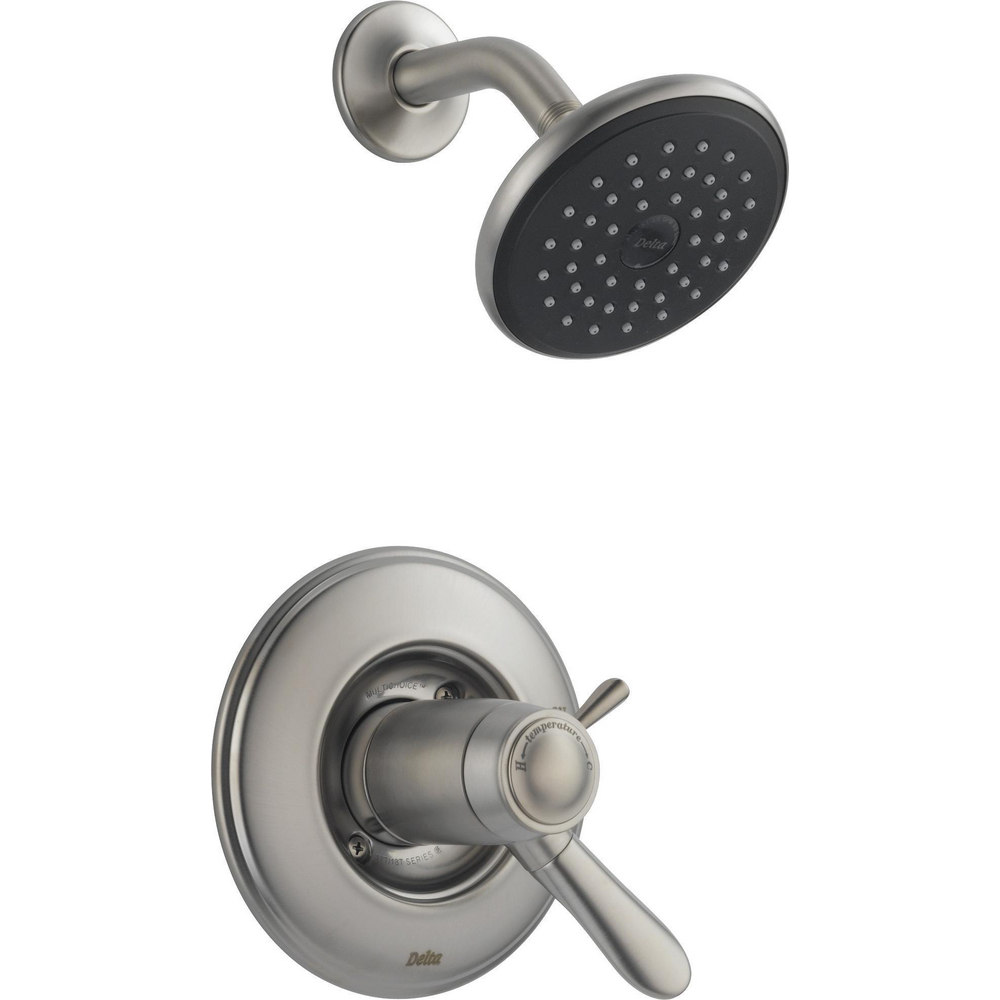

Delta T17T238-SS Lahara 17T Series Shower Trim Stainless
LAHARA
TempAssure® 17T Series Shower Trim
model#: T17T238-SS
Finish: Stainless
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look ' with no need for soaking or the aid of chemical cleaners.
Delta thermostatic valves use TempAssure Technology to protect you and your family from sudden temperature changes. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia.
Control volume and water temperature independently with two separate handles for more refined control of your shower experience
TempAssure thermostatic valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
Spray settings include: Full Body spray
Full body spray provides a steady, full-coverage spray perfect for every shower need, from rinsing shampoo from hair to relaxing tired muscles
Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
ADA Compliant

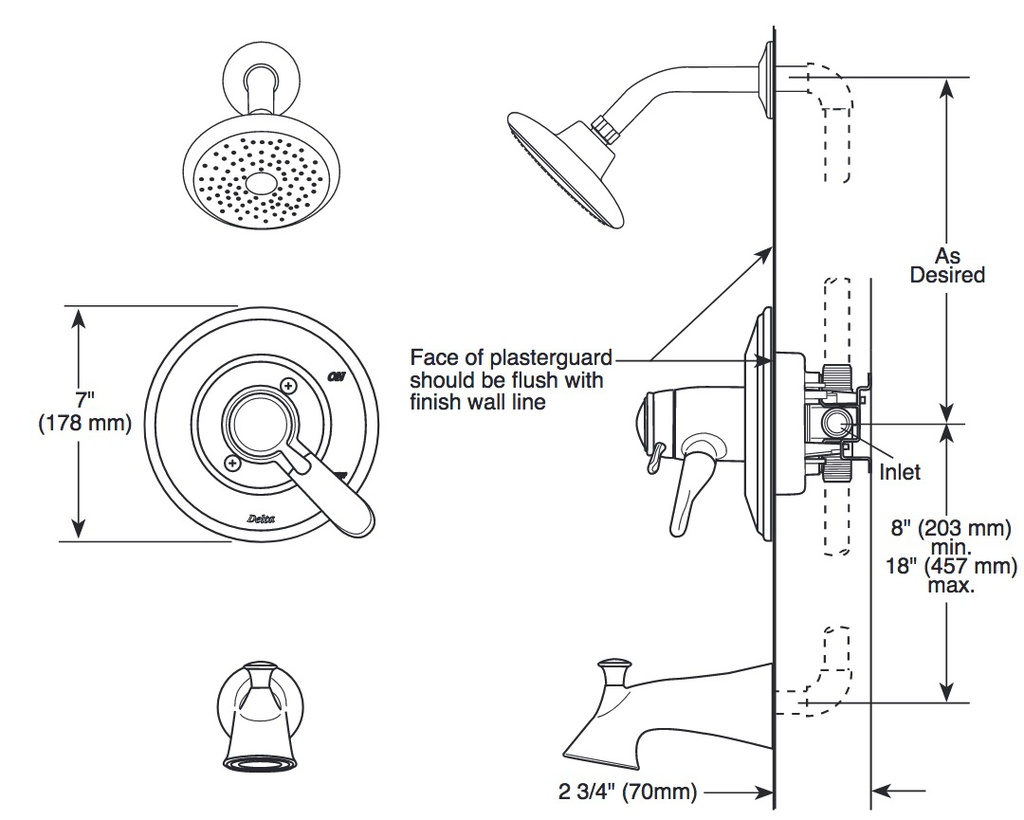

Installation Information
Number of Handles: Single handle
Flow Rate: 2.50 gpm, 9.5 L/min
Valve Type: Dual-function thermostatic cartridge
Over All Height: 9-1/2
Spray Settings: Full Body Spray
STANDARD SPECIFICATIONS:
TempAssure® 17T thermostatic valve cartridge.
Thermostatic wax element maintains the outlet temperature to ±3.6ºF.
Must also order MultiChoice® Universal rough separately.
Back-to-back installation capability.
Lever volume control handle; temperature adjustment dial.
Graphics indicate hot/cold temperature adjustment.
Field adjustable to limit rotation into hot water zone.
All parts are replaceable from the front of the valve.
Adjusts for up to 1" wall thickness.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
