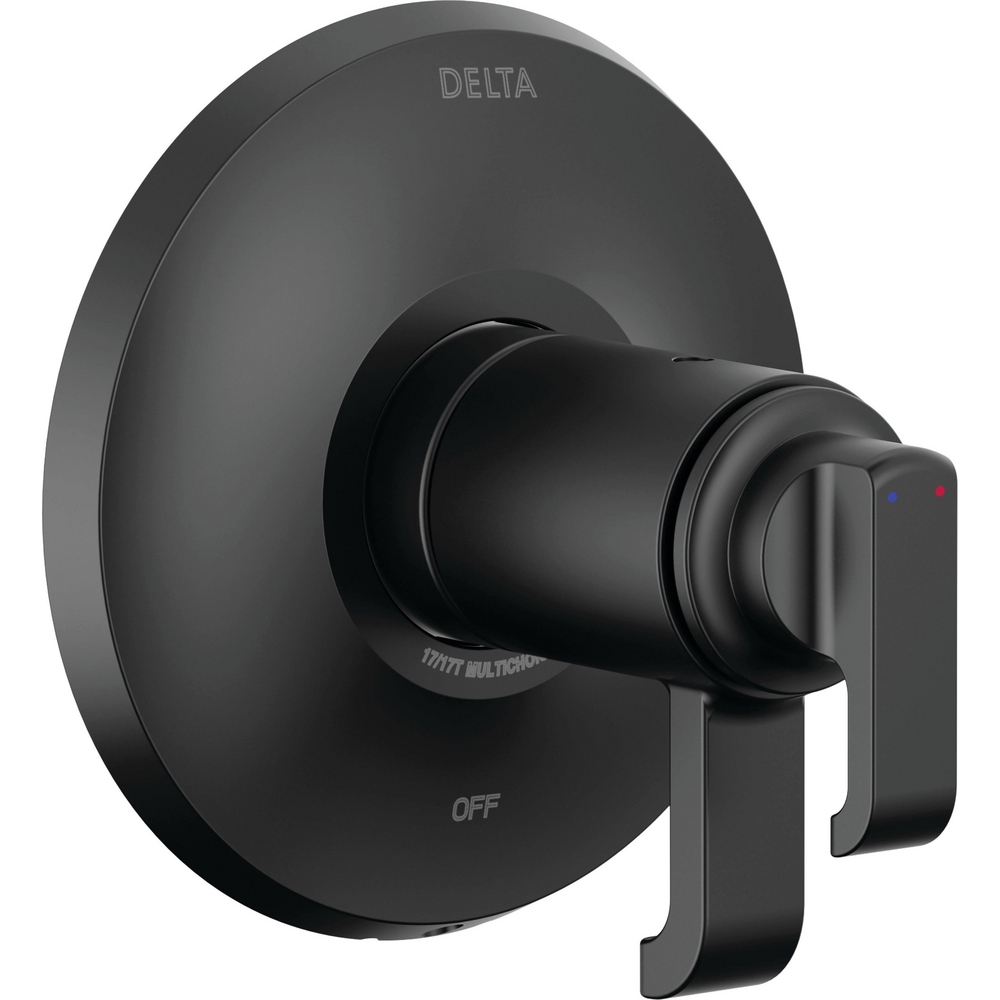

Delta T17T089-BL Tetra 17T Series Valve Only Matte Black
TETRA
17T Series Valve Only
model#: T17T089-BL
Finish: Matte Black
Familiar geometries and subtle curves in the Tetra Bath Collection combine to bring a sleek, architectural look and feel to the bath. Separate handles for volume and temperature control allow you to set the water at your preferred temperature and turn the shower on or off with the volume control handle'without interrupting your set temperature.
Delta showers with TempAssure thermostatic valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. You can install with confidence, knowing Delta products are backed by our Lifetime Limited Warranty.
TempAssure thermostatic valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
Control volume and water temperature independently with two separate handles
Trim kit only, must order MultiChoice Universal valve rough (R10000) separately to complete the unit
Back-to-back installation capability
ADA Compliant
Backed by Delta Faucet's Lifetime Limited Warranty

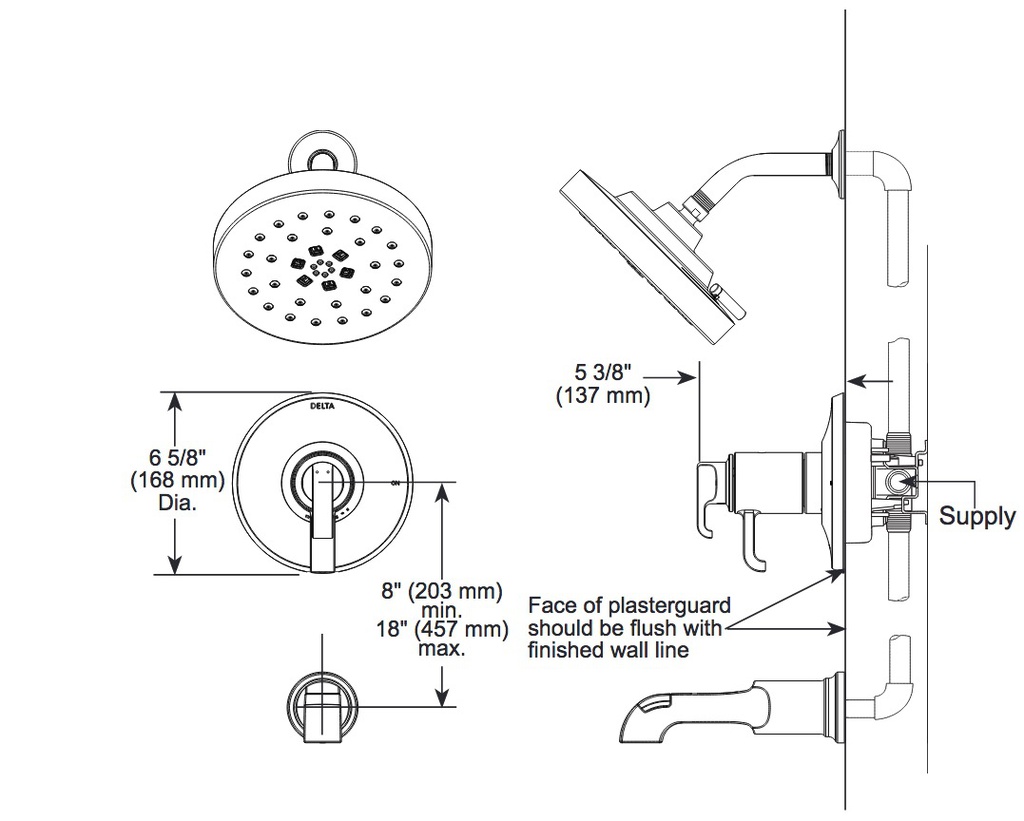

Installation Information
Number of Handles: Two handles
Over All Height: 6-5/8
Valve Type: NA
STANDARD SPECIFICATIONS:
Thermostatic wax element maintains the outlet temperature to ± 3.6 °F
For use with MultiChoice® Universal rough valve body (R10000 Series)
Max flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 8.6 gpm @ 60 psi with R10000-UNBX
Back-to-back installation capability
Lever volume control handle; temperature adjustment dial
Field adjustable to limit handle rotation into hot water zone
All parts replaceable from the front of the valve
Red/blue pad print temperature indicators on temperature adjustment dial
Adjusts for up to 1" wall thickness
Stem extension kit RP75136 can be ordered to allow for an additional 1 3/4" wall thickness. RP75136 ships with chrome escutcheon screws.
Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
Universal adapter included allows for thread, sweat or slip-on installation of RP102060 and RP102061
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense® - Applies to T17T289, T17T489, and 52488 only
