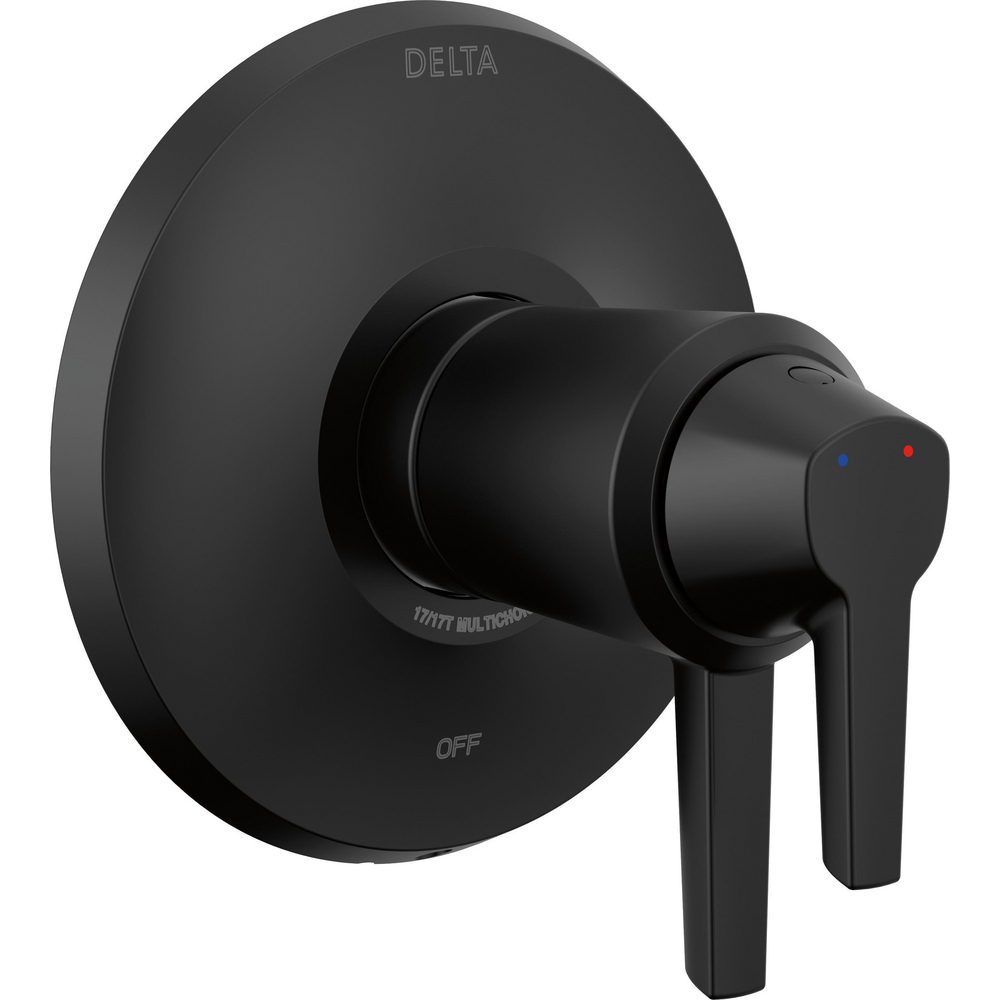

Delta T17T071-BL Galeon 17T Series Valve Only Trim Matte Black
GALEON
17T Series Valve Only Trim
model#: T17T071-BL
Finish: Matte Black
Shower handle kit only, purchase Delta shower valve separately
TempAssure cartridge protects from changes in water temperature
With a design inspired by the shape of sailboats, the Galeon Bath Collection brings a chiseled, contemporary look into the bath. Delta showers with TempAssure thermostatic valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine.
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle ' without interrupting your set temperature. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
TempAssure 17T Series dual-function thermostatic cartridge
TempAssure thermostatic valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
Trim kit only, must order MultiChoice Universal valve rough (R10000 series) separately to complete the unit
Control volume and water temperature independently with two separate handles for more refined control of your shower experience
ADA Compliant
Adjusts for up to 1 inch wall thickness
Stem extension kit RP75136 can be ordered separately to allow for an additional 1-3/4 inch wall thickness
Back-to-back installation capability
Backed by Delta Faucet's Lifetime Limited Warranty
Installation Information
Number of Handles: Single handle
Over All Height: 6-1/2
Valve Type: NA
STANDARD SPECIFICATIONS:
Thermostatic wax element maintains the outlet temperature to ± 3.6 °F
For use with MultiChoice® Universal rough valve body (R10000 Series)
Max flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 8.6 gpm @ 60 psi with R10000-UNBX
Back-to-back installation capability
Lever volume control handle; temperature adjustment dial
Field adjustable to limit handle rotation into hot water zone
All parts replaceable from the front of the valve
Red/blue pad print temperature indicators on temperature adjustment dial
Adjusts for up to 1" wall thickness
Stem extension kit RP75136 can be ordered to allow for an additional 1 3/4" wall thickness.
RP75136 ships with chrome escutcheon screws.

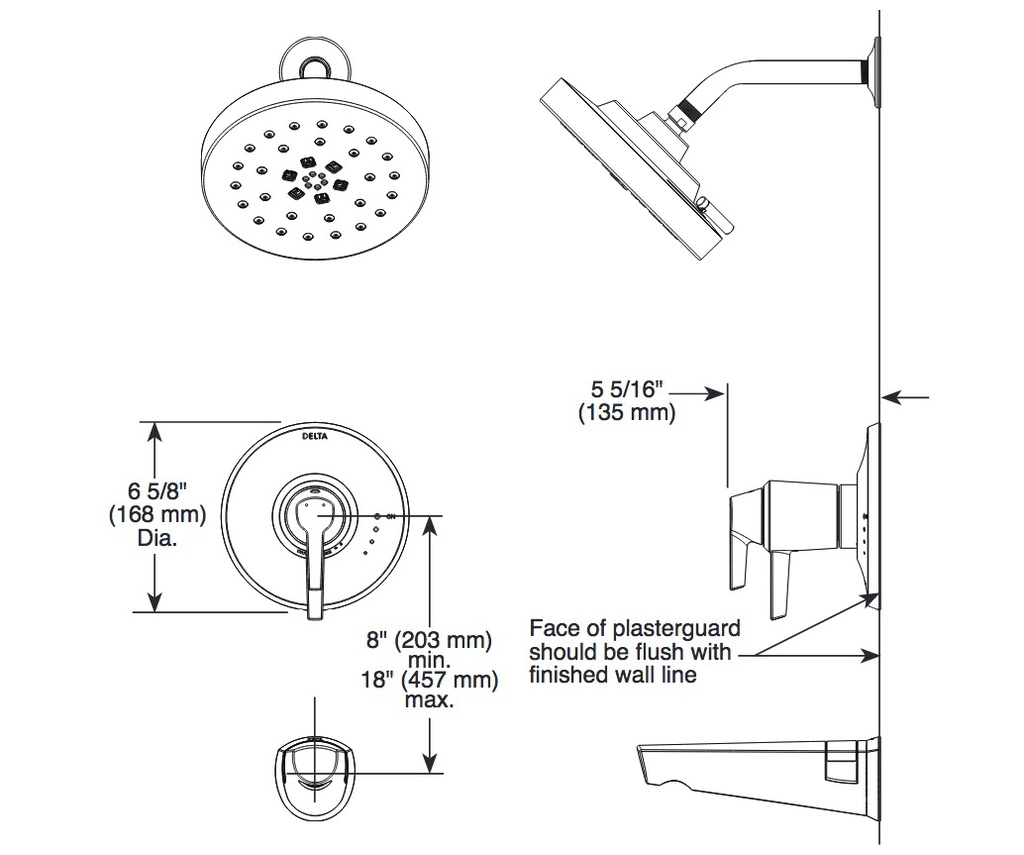

Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
Thread-on tub spout attachment
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense® - Applies to T17T271, T17T471, and 52488 only
