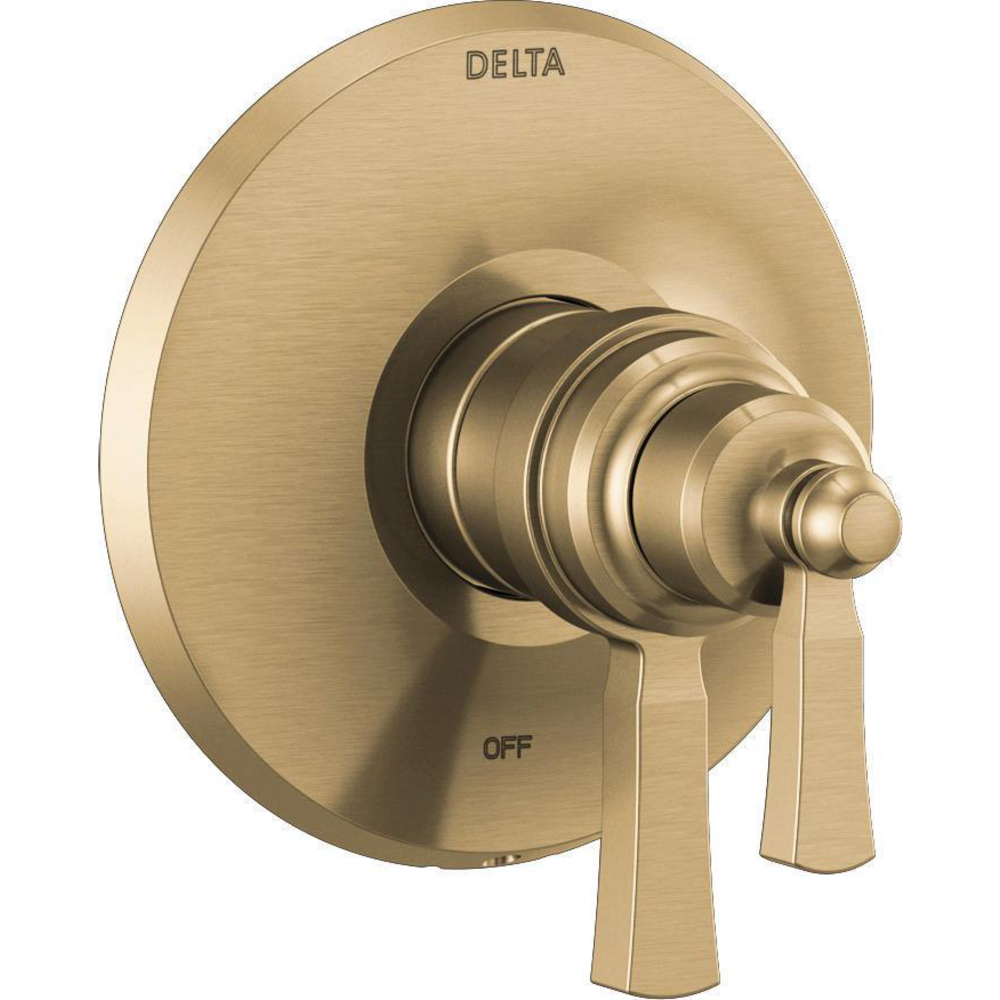

Delta T17T056-CZ Dorval 17 Thermostatic Valve Only Trim Champagne Bronze
DORVAL
17 Thermostatic Valve Only Trim
model#: T17T056-CZ
Finish: Champagne Bronze
The Dorval Bathroom Collection diverges from conventional expectations with regal accents and a powerful design that commands your attention. Inspired by the feminine lines of French architecture and the regal stature of German castles, the Dorval Bath Collection balances grace and power in this modern take on new traditional design.
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. Delta thermostatic valves use TempAssure Technology to protect you and your family from sudden temperature changes. Delta pressure-balance valves use Monitor Technology to protect you and your family from sudden temperature changes.
Control volume and water temperature independently with two separate handles for more refined control of your shower experience
Monitor pressure balance valve keeps water temperature within a safe ±3° F (±1.6° C), helping to protect you from sudden changes in hot or cold water pressure
Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
Recommended rough-in kit R10000-UNBX
ADA Compliant

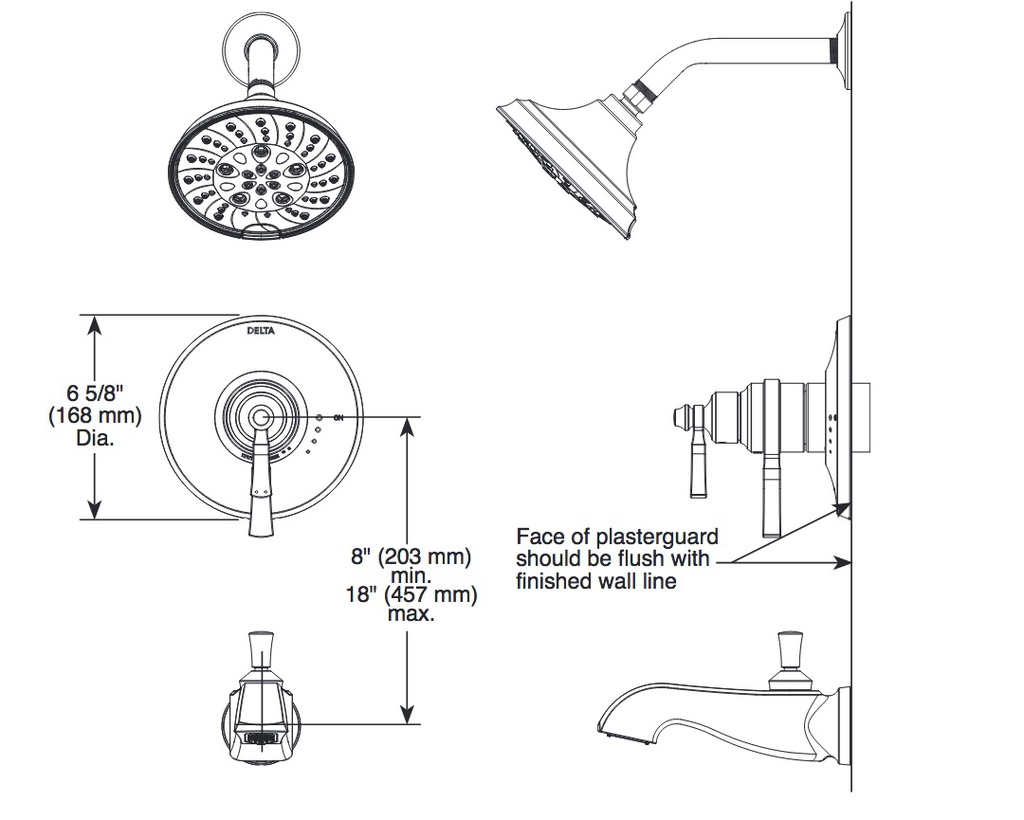

Installation Information
Number of Handles: Two handles
Over All Height: 6-5/8
Valve Type: NA
STANDARD SPECIFICATIONS:
Thermostatic wax element maintains the outlet temperature to ± 3.6 °F
For use with MultiChoice® Universal rough valve body (R10000 Series)
Max flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 8.6 gpm @ 60 psi with R10000-UNBX
Back-to-back installation capability
Lever volume control handle; temperature adjustment dial
Field adjustable to limit handle rotation into hot water zone
All parts replaceable from the front of the valve
Red/blue pad print temperature indicators on temperature adjustment dial
Adjusts for up to 1" wall thickness
Stem extension kit RP75136 can be ordered to allow for an additional 1 3/4" wall thickness.
RP75136 ships with chrome escutcheon screws.
Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1-Valve control only
EPA WaterSense
