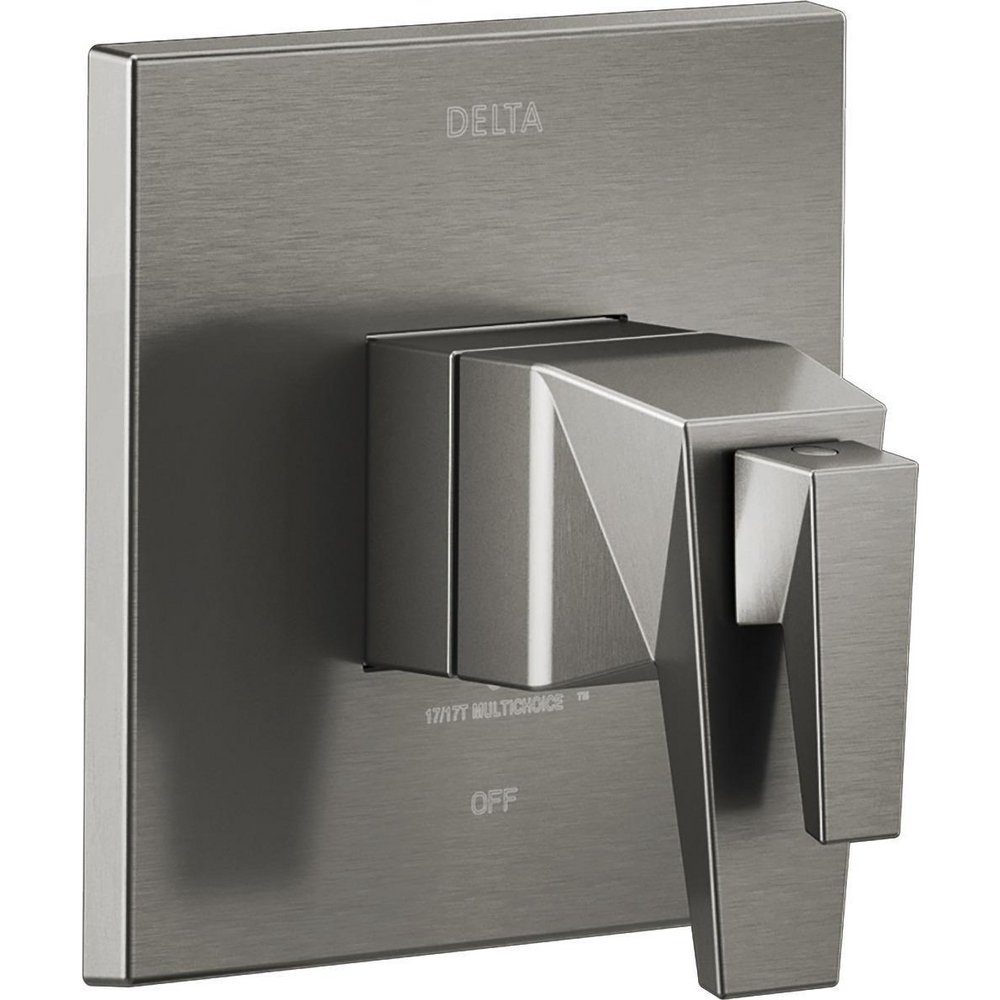

Delta T17T043-KS-PR Trillian 17T Series Valve Trim Lumicoat Black Stainless
TRILLIAN
TempAssure 17T Series Valve Only Trim
model#: T17T043-KS-PR
Finish: Lumicoat Black Stainless
Shower handle kit only, purchase Delta shower valve separately
Precisely measures and controls water temperature
The prismatic faceting of the Trillian Bath Collection is an evolution of modern style that creates an edgy look which catches the light as well as the eye. Delta showers with TempAssure thermostatic valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine.
With separate handles for volume and temperature control, this Delta valve provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle ' without interrupting your set temperature. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
Lumicoat Finishes easily wipe clean and are guaranteed to resist mineral buildup and hard water stains on the product?s most commonly touched areas
Trim kit only, must order MultiChoice Universal valve rough separately to complete the unit
TempAssure thermostatic valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
Dual-function thermostatic cartridge
ADA compliant metal lever handle
Lever handle adjusts volume
Dial adjusts temperature
Back-to-back installation capability
Red/Blue temperature indicator markings
Valve only
TempAssure thermostatic valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure

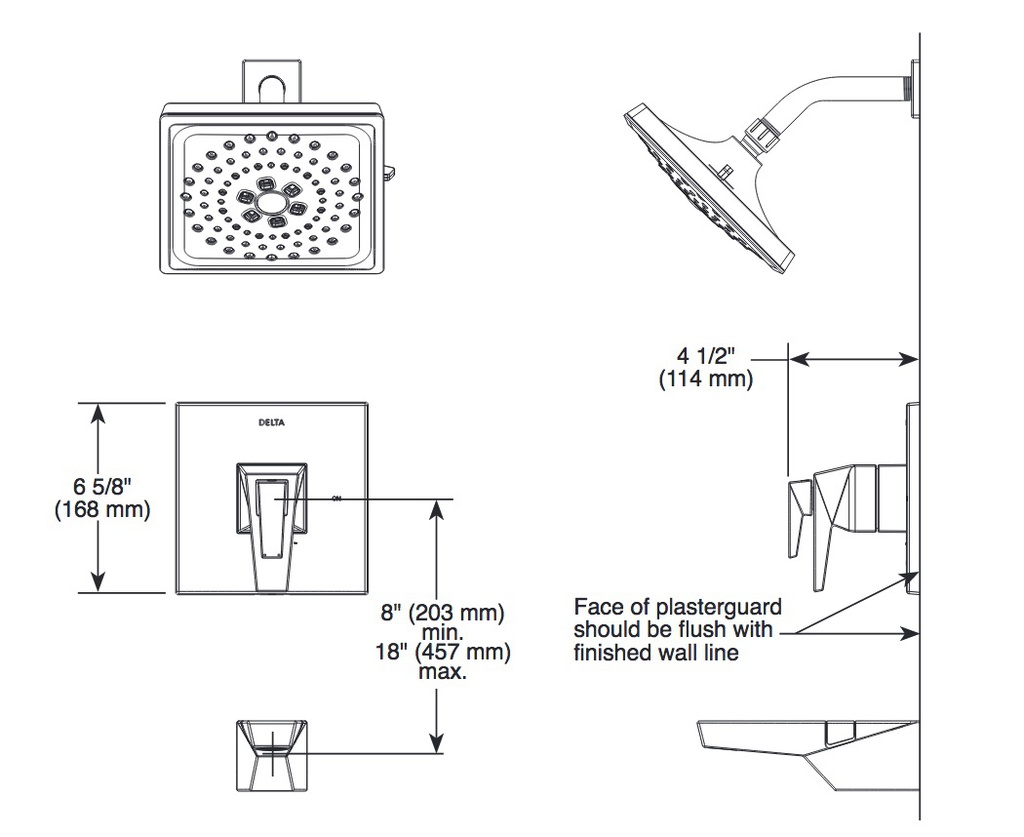

Installation Information
Number of Handles: Single handle
Over All Height: 6-3/5
Valve Type: NA
STANDARD SPECIFICATIONS:
Thermostatic wax element maintains the outlet temperature to ± 3.6 °F
For use with MultiChoice® Universal rough valve body (R10000 Series)
Shower head max flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 8.6 gpm @ 60 psi with R10000-UNBX
Back-to-back installation capability
Lever volume control handle; temperature adjustment dial
Field adjustable to limit handle rotation into hot water zone
All parts replaceable from the front of the valve
Red/blue pad print temperature indicators on temperature adjustment dial
Adjusts for up to 1" wall thickness
Stem extension kit RP101140 can be ordered to allow for an additional 1 3/4" wall thickness.
Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
Universal adapter included allows for thread, sweat or slip-on installation of RP93248 and RP93249
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense® - Applies to T17T243, T17T243-PR, T17T443, T17T443-PR and 52684 only
