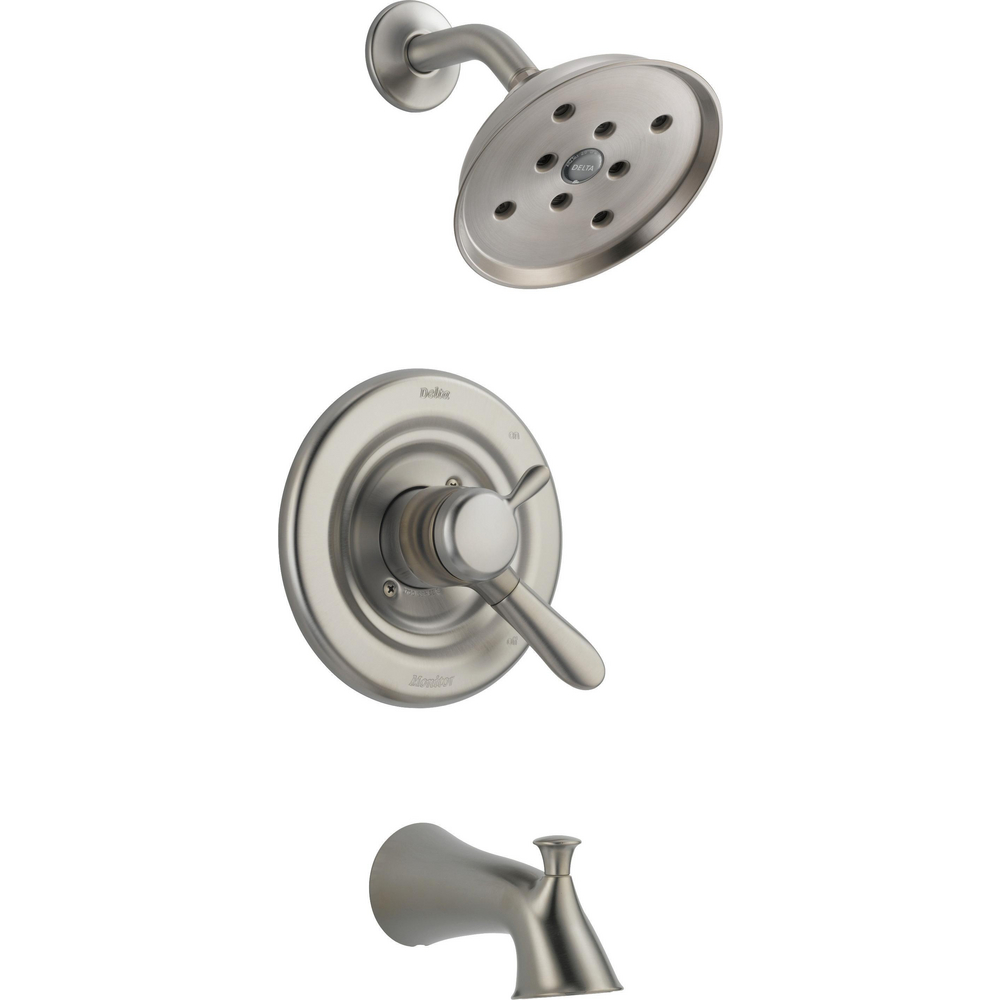

Delta T17438-SSH2O Lahara Monitor 17 Series Tub And Shower Trim Stainless
LAHARA
Monitor® 17 Series Tub and Shower Trim
model#: T17438-SSH2O
Finish: Stainless
Featuring Delta H2Okinetic Technology for 3X the coverage
Monitor Valve protects from rapid changes in hot or cold water
H2Okinetic Technology sculpts the water into a unique wave pattern, giving the feeling of more water without using more water
H2Okinetic Technology sculpts the water into a unique wave pattern, giving the feeling of more water without using more water
WaterSense certification promotes water conservation
Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
Meets standards set by Americans with Disabilities Act (ADA)
Spray settings include: H2OKinetic

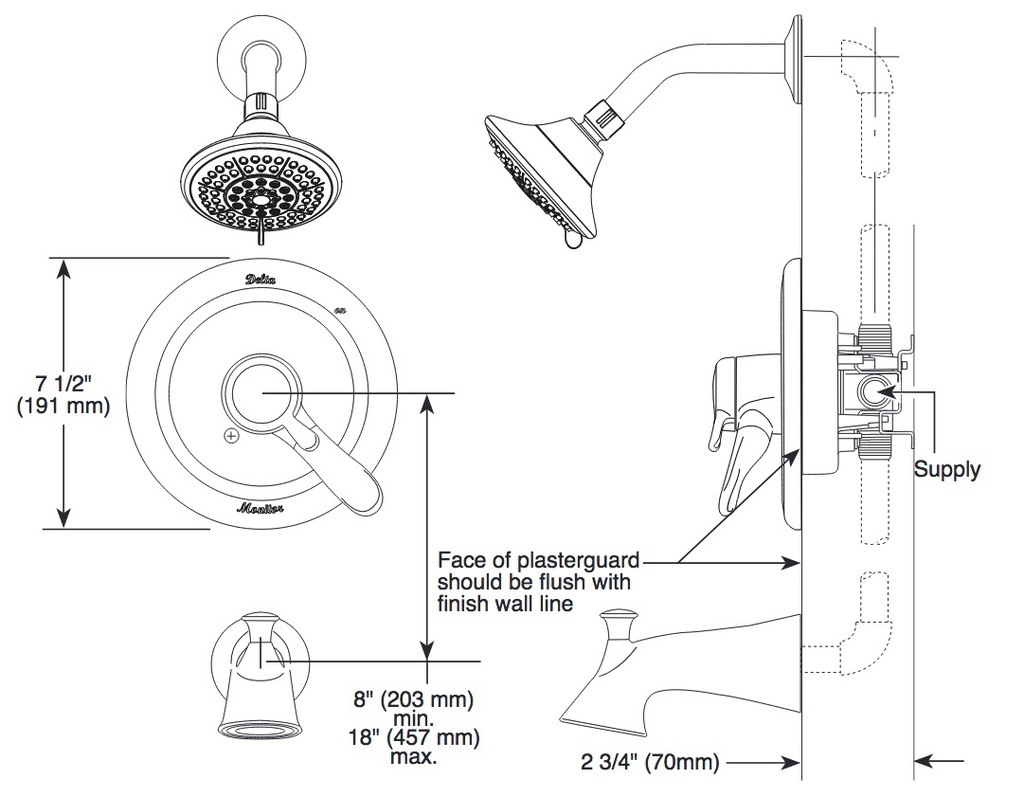

Installation Information
Number of Handles: Single handle
Flow Rate: 1.75 gpm, 6.6 L/min
Spout Length: 6-3/4"
Valve Type: Dual-function pressure balance cartridge
Over All Height: 13-21/32
Spray Settings: H2Okinetic ® Spray
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Back-to-back installation capability.
Solid brass forged body.
Lever volume control handle; temperature adjustment dial.
Field adjustable to limit handle rotation into hot water zone,
Maximum dial rotation adjustable between 90° and 180°.
All parts replaceable from the front of the valve.
Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa.
Stem extension kit RP77992 can be ordered to allow for an additional 1 3/4" wall thickness.
RP77992 ships with chrome escutcheon screws.
For special finishes also order RP12630 escutcheon screws in desired finish
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
