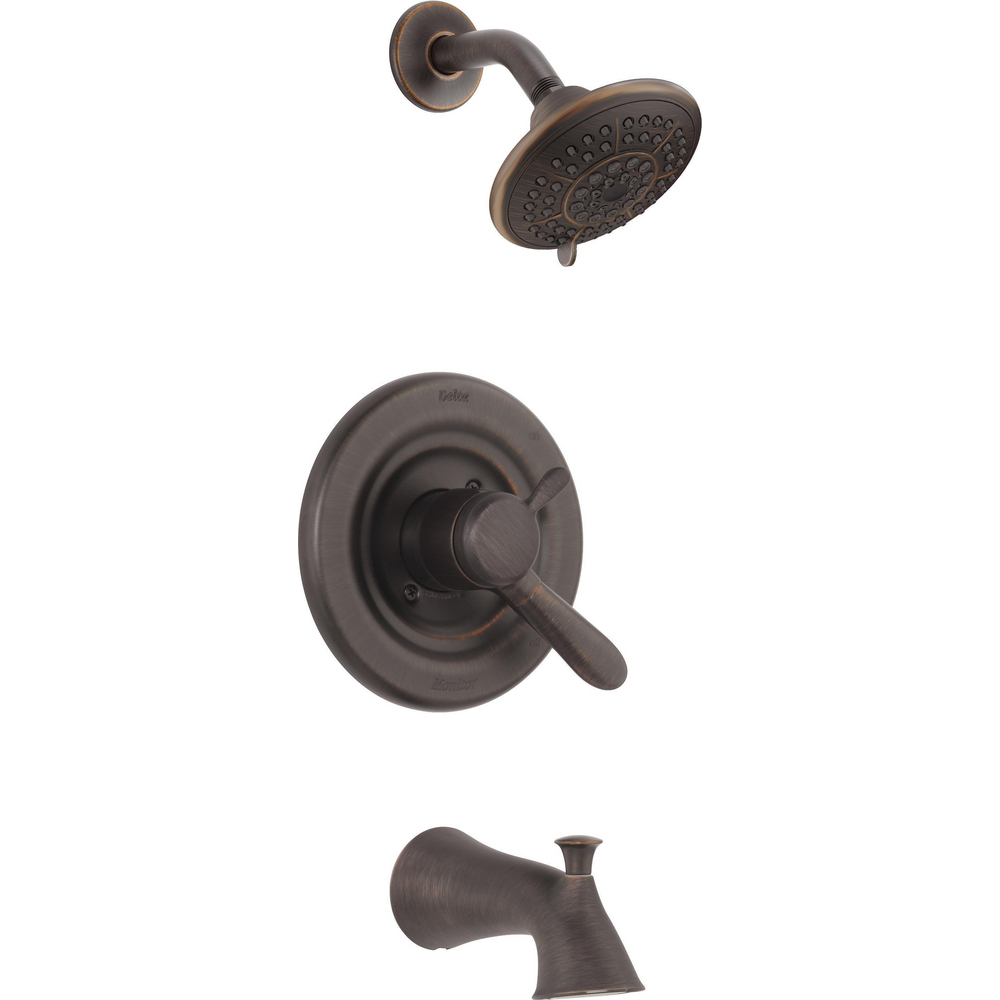

Delta T17438-RB Lahara 17 Series Tub and Shower Trim Venetian Bronze
LAHARA
Monitor® 17 Series Tub and Shower Trim
model#: T17438-RB
Finish: Venetian Bronze
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. Delta pressure-balance valves use Monitor Technology to protect you and your family from sudden temperature changes.
The pause setting gives you ample space for shaving, lathering and other shower tasks, then easily restarts the water with the temperature where you left off. This spray setting helps you conserve water, so you can worry less about depleting your supply of hot water - and you help the environment too. While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look ' with no need for soaking or the aid of chemical cleaners.
Control volume and water temperature independently with two separate handles for more refined control of your shower experience
Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
Spray settings: Pause, Full Body Spray, Full Spray w/Massage, Fast Massage, Soft Drench Spray
Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
Single lever handle for ease of control
Meets standards set by Americans with Disabilities Act (ADA)
WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance

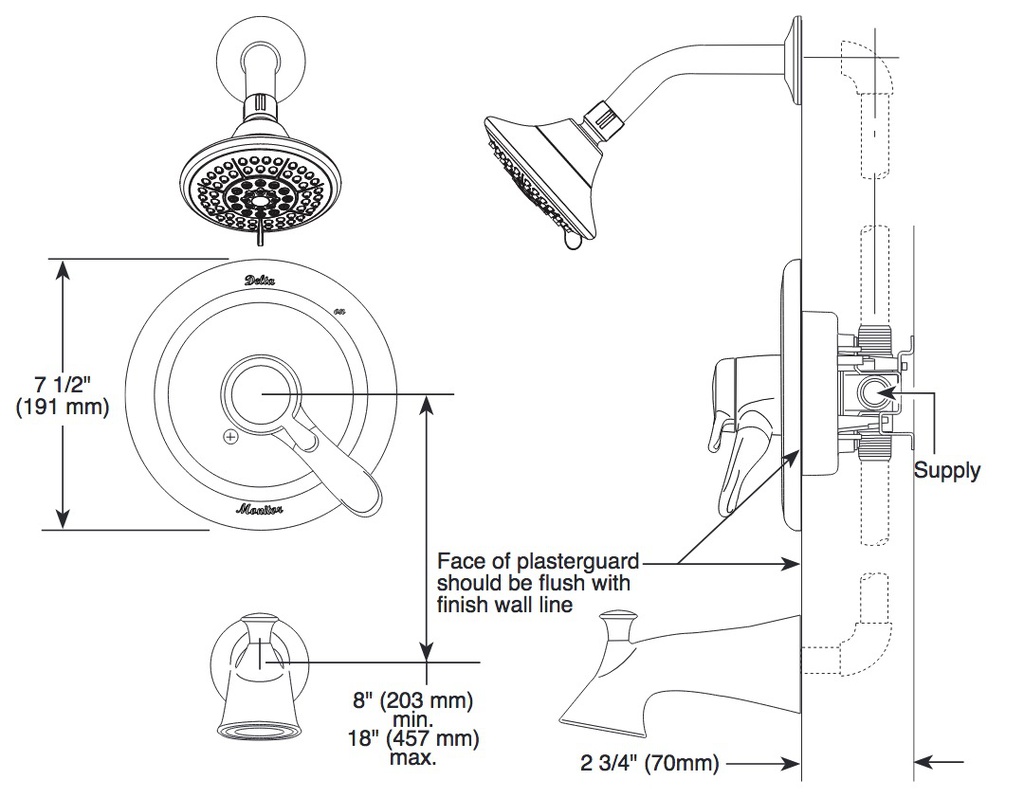

Installation Information
Number of Handles: Single handle
Flow Rate: 1.75 gpm, 6.6 L/min
Spout Length: 6-3/4"
Valve Type: Dual-function pressure balance cartridge
Over All Height: 13-21/32
Spray Settings: Full Body Spray
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Back-to-back installation capability.
Solid brass forged body.
Lever volume control handle; temperature adjustment dial.
Field adjustable to limit handle rotation into hot water zone,
Maximum dial rotation adjustable between 90° and 180°.
All parts replaceable from the front of the valve.
Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa.
Stem extension kit RP77992 can be ordered to allow for an additional 1 3/4" wall thickness.
RP77992 ships with chrome escutcheon screws.
For special finishes also order RP12630 escutcheon screws in desired finish.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
