Delta T17430 Classic Monitor 17 Series Tub and Shower Trim Chrome
CLASSIC
Monitor® 17 Series Tub and Shower Trim
model#: T17430
Finish: Chrome
Delta's separate rough and trim program allows you to switch your trim without the hassle of changing your rough-in as well. Another great benefit is the ability to have your plumber install the rough-in before you've decided on the trim you want. By installing the rough-in first, you can later decide what type of trim will go perfectly in your bath.
WaterSense certification promotes water conservation
Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
Soft, rubber spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your showerhead and hand shower with the touch of a finger
Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
Meets standards set by Americans with Disabilities Act (ADA)
Spray settings include: Full Body, Massaging, Soft Drench
Solid brass forged body
Back-to-back installation capability
Stem extension kit RP77992 can be ordered separately to allow for an additional 1-3/4 inch wall thickness
Pull-down diverter tub spout
Universal tub spout adapter allows for thread, sweat or slip-on installation
ADA compliant lever handle
WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
Backed by Delta Faucet's Lifetime Limited Warranty

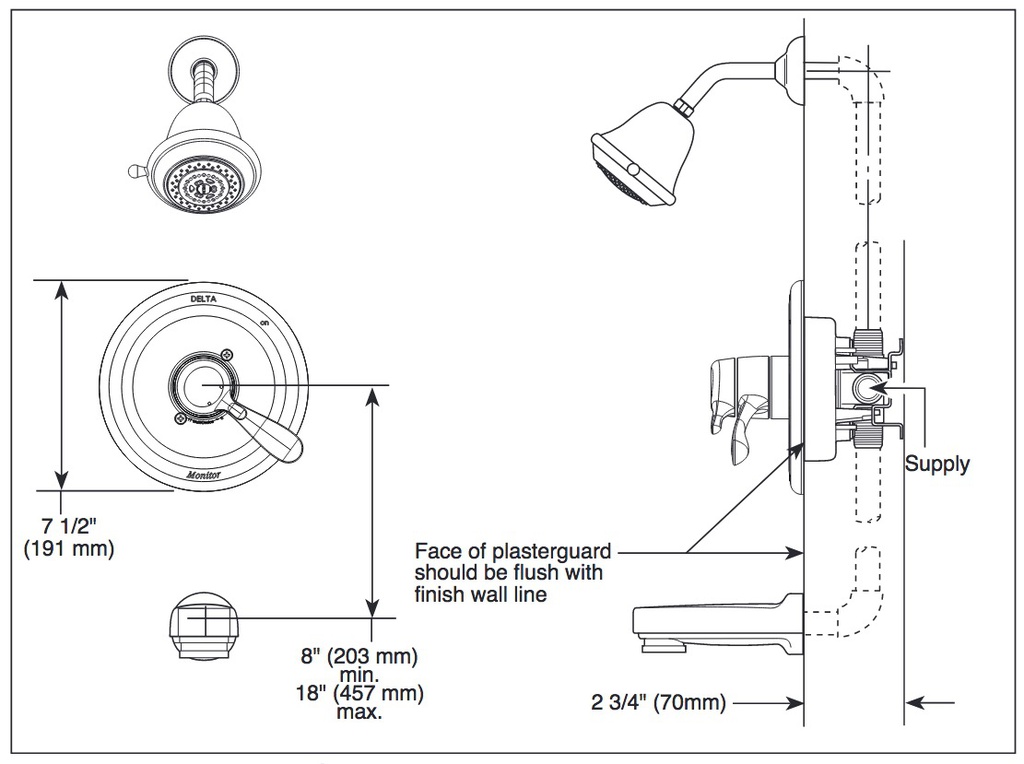

Installation Information
Number of Handles: Single handle
Flow Rate: 1.75 gpm, 6.6 L/min
Spout Length: 5-1/4"
Valve Type: Single-function pressure balance cartridge
Over All Height: 12-5/8
Spray Settings: Full Body Spray,Massaging Spray,Drenching Spray
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Back-to-back installation capability.
Solid brass forged body.
Red/Blue indicators on handle.
Lever volume control handle; temperature adjustment dial.
Field adjustable to limit handle rotation into hot water zone.
Maximum dial rotation adjustable between 90° and 180°.
All parts replaceable from the front of the valve.
Models with "SOS" suffix supplied with slip-on spout for 1/2" C.W.T.
MTS = Metal slip-on spout for 1/2" C.W.T.
Note: Product will be marked with flow rate of specific showerhead.
Stem extension kit RP77992 can be ordered to allow for an additional 1 3/4" wall thickness.
RP77992 ships with chrome escutcheon screws.
For special finishes also order RP12630 escutcheon screws in desired finish.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
