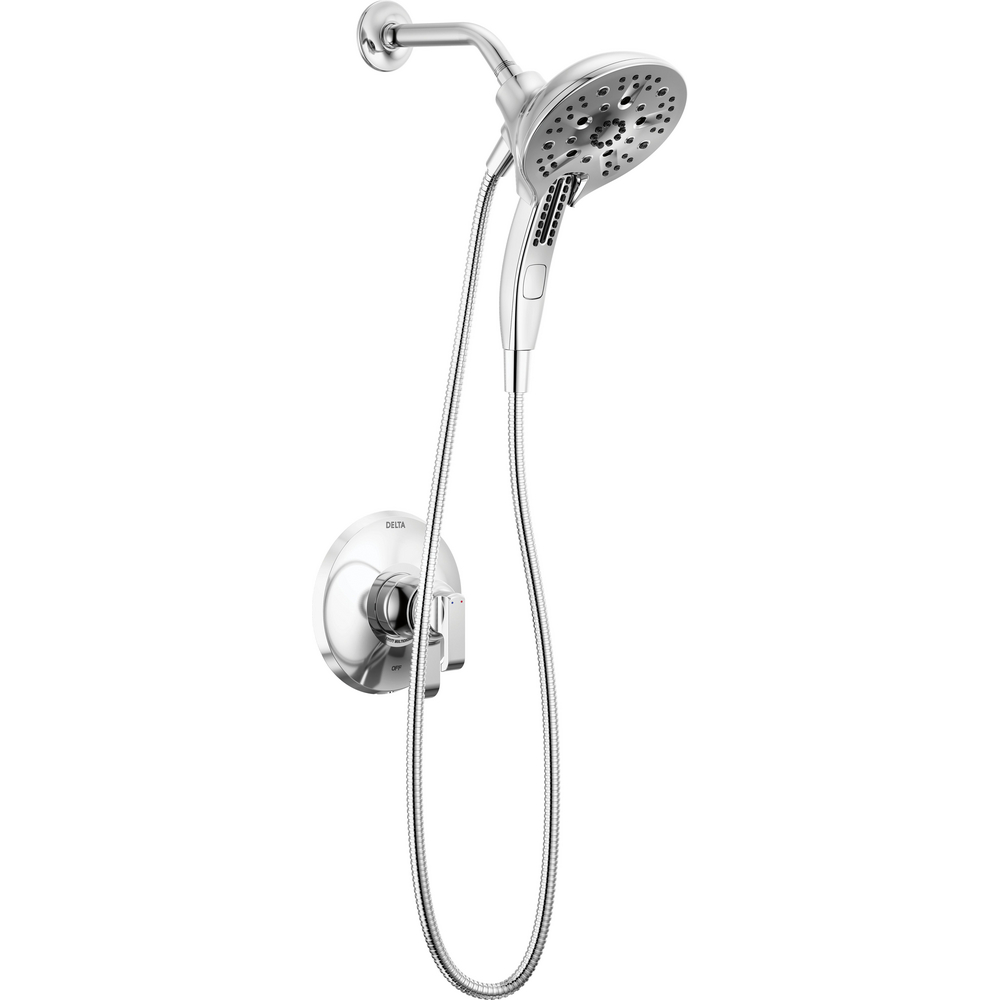

Delta T17289-PR Tetra 17 Series Shower Trim Lumicoat Chrome
TETRA
17 Series Shower Trim
model#: T17289-PR
Finish: Lumicoat Chrome
Familiar geometries and subtle curves in the Tetra Bath Collection combine to bring a sleek, architectural look and feel to the bath. The Delta In2ition Two-in-One Shower features a detachable hand shower which can be used separately from or simultaneously with the shower head. This integrated dual-functionality gives you maximum flexibility without sacrificing warmth, as you can choose to have water streaming from the shower head only, the hand shower only or both the shower head and hand shower at once.
Using advanced technology, H2Okinetic showers sculpt water into a unique wave pattern, giving you 3X the coverage of a standard shower head and resulting in more coverage, more warmth and more intensity for a truly drenching shower experience. Separate handles for volume and temperature control allow you to set the water at your preferred temperature and turn the shower on or off with the volume control handle'without interrupting your set temperature.
The pause setting gives you ample space for shaving, lathering and other shower tasks, then easily restarts the water with the temperature where you left off. You can install with confidence, knowing Delta products are backed by our Lifetime Limited Warranty.
The In2ition Two-in-One Shower gets water where you need it most using the integrated shower head and hand shower separately or together
Perfect for bathing loved ones and pets as well as keeping the inside of your shower and tub clean
H2Okinetic Technology showers feel like more water and more pressure, with more coverage
H2Okinetic PowerDrench Spray creates powerful water patterns, for an energizing experience
Monitor pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
Spray settings include: H2Okinetic PowerDrench, Full spray, Massage spray, Soft Waterfall spray and Pause
Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
Control volume and water temperature independently with two separate handles
Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime buildup from the spray face of your shower head and hand shower with the touch of a finger
Trim kit only, must order MultiChoice Universal valve rough (R10000) separately to complete the unit
Back-to-back installation capability
ADA Compliant
WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
Backed by Delta Faucet's Lifetime Limited Warranty

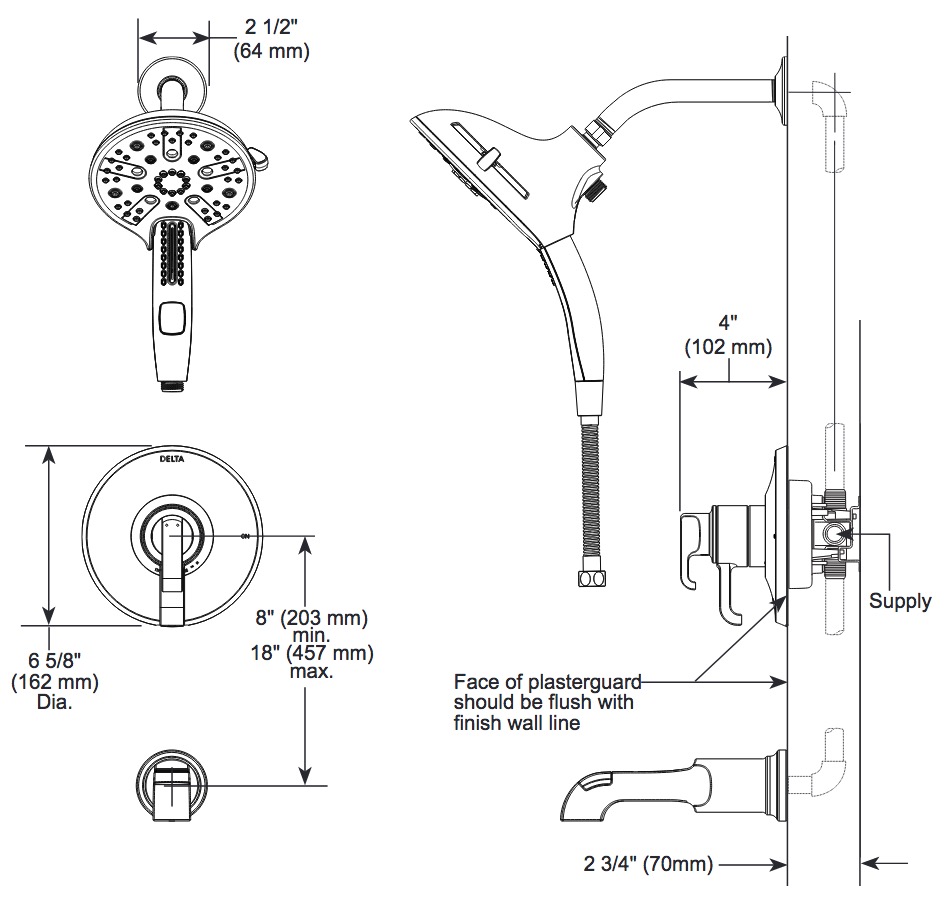

Installation Information
Number of Handles: Two handles
Over All Height: 18-3/4
Valve Type: NA
Spray Settings: H2Okinetic ® Spray,H2Okinetic ® Spray with Massage,Full Body Spray,Massaging Spray,Pause
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice® Universal rough valve body (R10000 Series)
Back-to-back installation capability
Solid brass forged body
Lever volume control handle; temperature adjustment dial
Field adjustable to limit handle rotation into hot water zone
Maximum dial rotation adjustable between 90° and 180°
All parts replaceable from the front of the valve
Max. flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 6.2 gpm @ 60 psi with R10000-UNBX
Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
Stem extension kit RP77992 can be ordered to allow for an additional 1 3/4" wall thickness.
RP77992 ships with chrome escutcheon screws.
For special finishes also order RP12630 escutcheon screws in desired finish.
Universal adapter included allows for thread, sweat or slip-on installation of RP102060 and RP102061
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense® - Applies to T17289, T17489, & 58620-PK only
