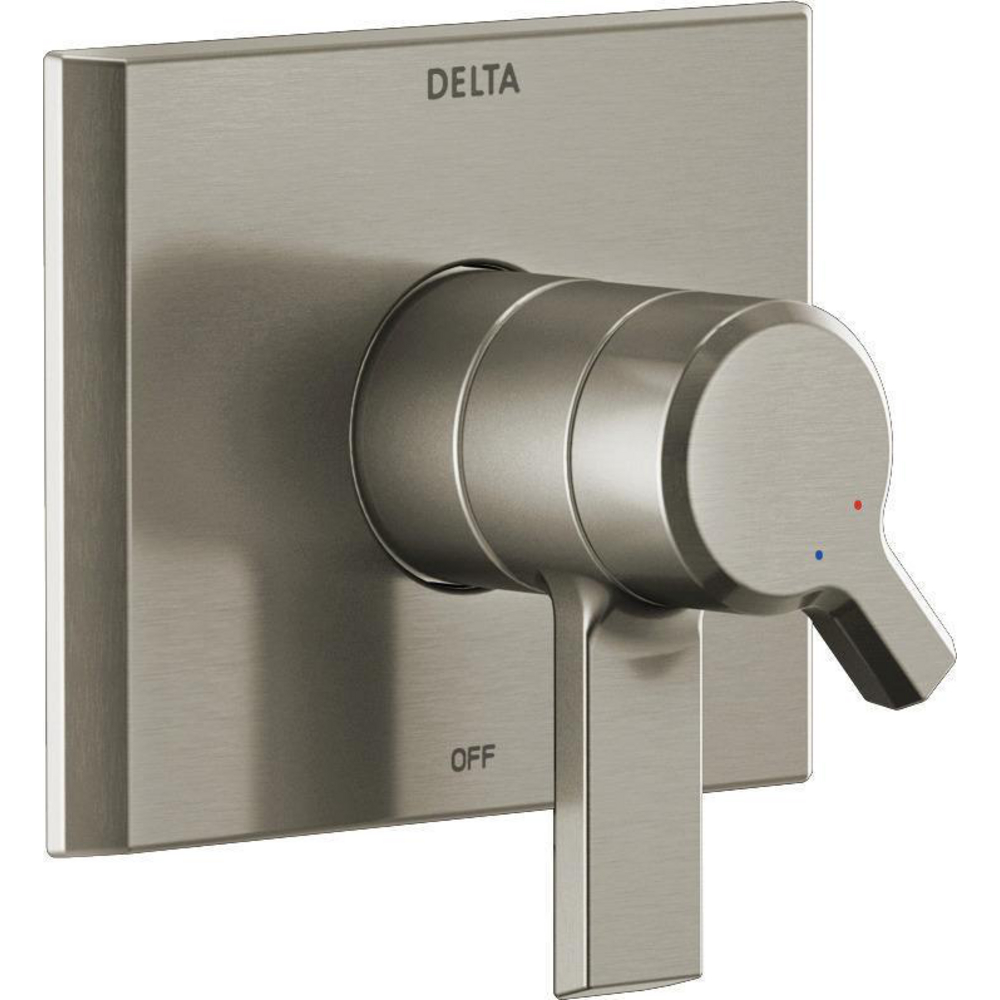

Delta T17099-SS-PR Pivotal 17 Series Valve Only Trim Lumicoat Stainless
PIVOTAL
Monitor 17 Series Valve Only Trim
model#: T17099-SS-PR
Finish: Lumicoat Stainless
Shower handle kit only, purchase Delta rough-in separately
Monitor Valve protects from rapid changes in water temperature
The confident slant of the Pivotal Bath Collection makes it a striking addition to a bathroom's contemporary geometry for a look that makes a statement. Delta showers with Monitor pressure-balance valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine.
With separate handles for volume and temperature control, this Delta valve provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle ' without interrupting your set temperature. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
Lumicoat Finishes easily wipe clean and are guaranteed to resist mineral buildup and hard water stains on the product?s most commonly touched areas
Trim kit only, must order MultiChoice Universal valve rough separately to complete the unit
Monitor pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
Dual-function cartridge
Control volume and water temperature independently with two separate handles for more refined control of your shower experience
Lever handle controls volume
Dial adjusts temperature
Back-to-back installation capability
Red/blue pad print temperature indicators on temperature adjustment dial
Valve only
Installation Information
Number of Handles: Single handle
Over All Height: 5-1/2
Valve Type: NA
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
Max. 1.75 gpm @ 80 psi, 7.60 L/min @ 550 kPa.
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Back-to-back installation capability.
Solid brass forged body.
Lever volume control handle; temperature adjustment dial.
Field adjustable to limit handle rotation into hot water zone.
Maximum dial rotation adjustable between 90° and 180°.
All parts replaceable from the front of the valve.
Red/blue pad print temperature indicators on temperature adjustment dial.
Stem extension kit RP77992 can be ordered to allow for an additional 1 3/4" wall thickness.
RP77992 ships with chrome escutcheon screws.
For special finishes also order RP12630 escutcheon screws in desired finish
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only.
EPA WaterSense
