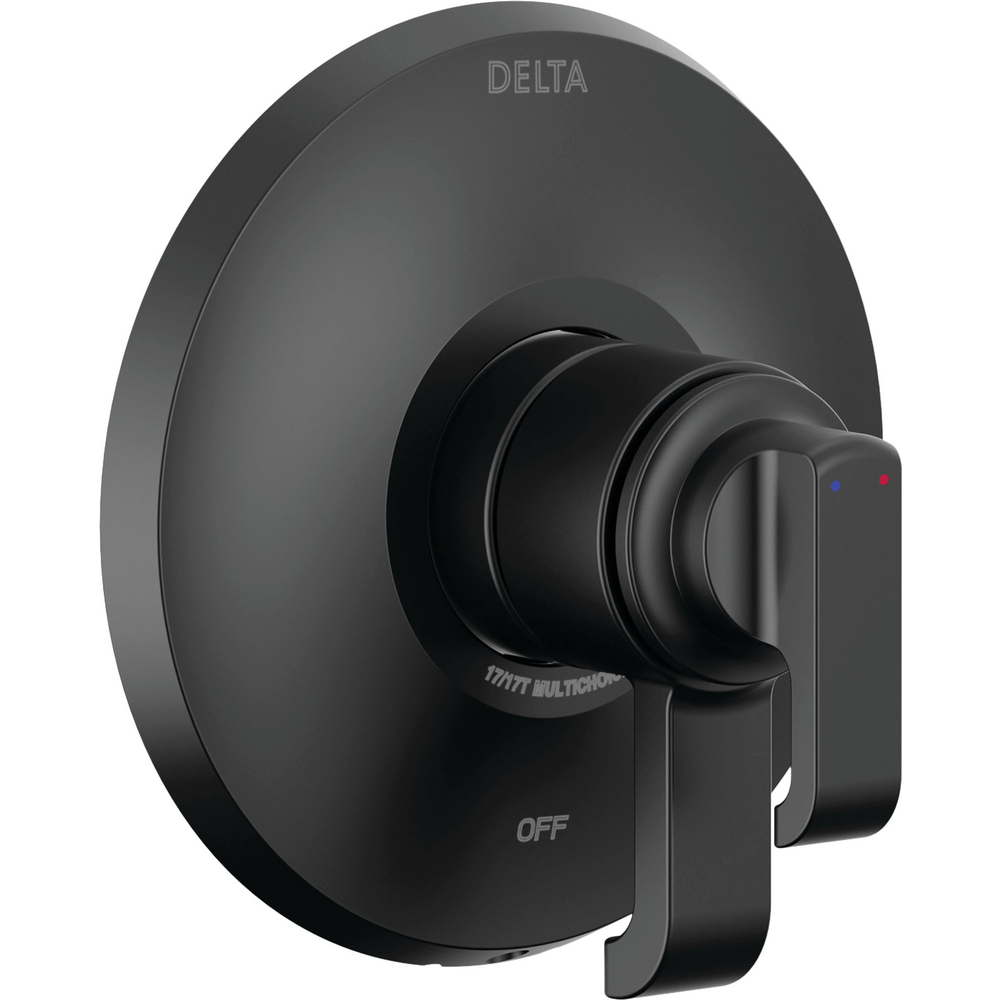

Delta T17089-BL Tetra 17 Series Valve Only Trim Matte Black
TETRA
17 Series Valve Only Trim
model#: T17089-BL
Finish: Matte Black
Familiar geometries and subtle curves in the Tetra Bath Collection combine to bring a sleek, architectural look and feel to the bath. With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle'without interrupting your set temperature.
Create a luxurious shower experience with a Delta hand shower/shower head combination. Whether you're remodeling your space or upgrading your existing setup, our hand shower/shower head combos will give you more flexibility and coverage in a variety of styles. You can install with confidence, knowing Delta products are backed by our Lifetime Limited Warranty.
Monitor pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
Control volume and water temperature independently with two separate handles
Trim kit only, must order MultiChoice Universal valve rough (R10000) separately to complete the unit
Back-to-back installation capability
ADA Compliant
Backed by Delta Faucet's Lifetime Limited Warranty

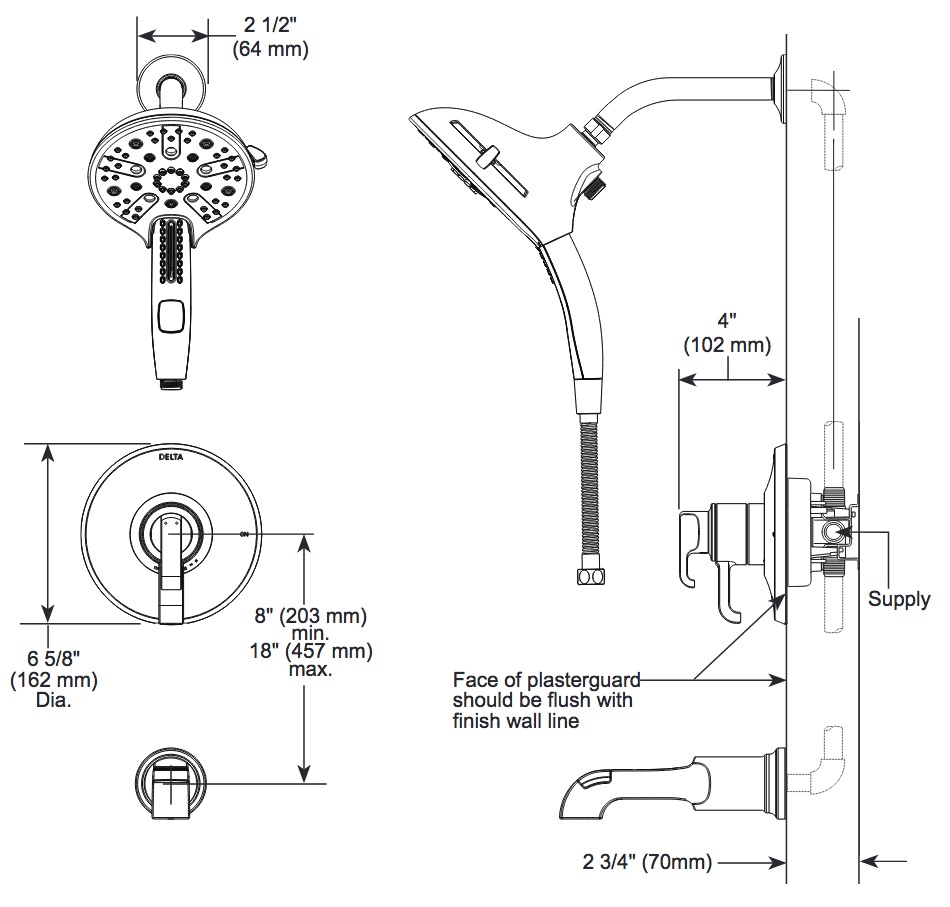

Installation Information
Number of Handles: Two handles
Over All Height: 6-1/2
Valve Type: NA
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice® Universal rough valve body (R10000 Series)
Back-to-back installation capability
Solid brass forged body
Lever volume control handle; temperature adjustment dial
Field adjustable to limit handle rotation into hot water zone
Maximum dial rotation adjustable between 90° and 180°
All parts replaceable from the front of the valve
Max. flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 6.2 gpm @ 60 psi with R10000-UNBX
Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
Stem extension kit RP77992 can be ordered to allow for an additional 1 3/4" wall thickness.RP77992 ships with chrome escutcheon screws.
For special finishes also order RP12630 escutcheon screws in desired finish.
Universal adapter included allows for thread, sweat or slip-on installation of RP102060 and RP102061
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense® - Applies to T17289, T17489, & 58620-PK only
