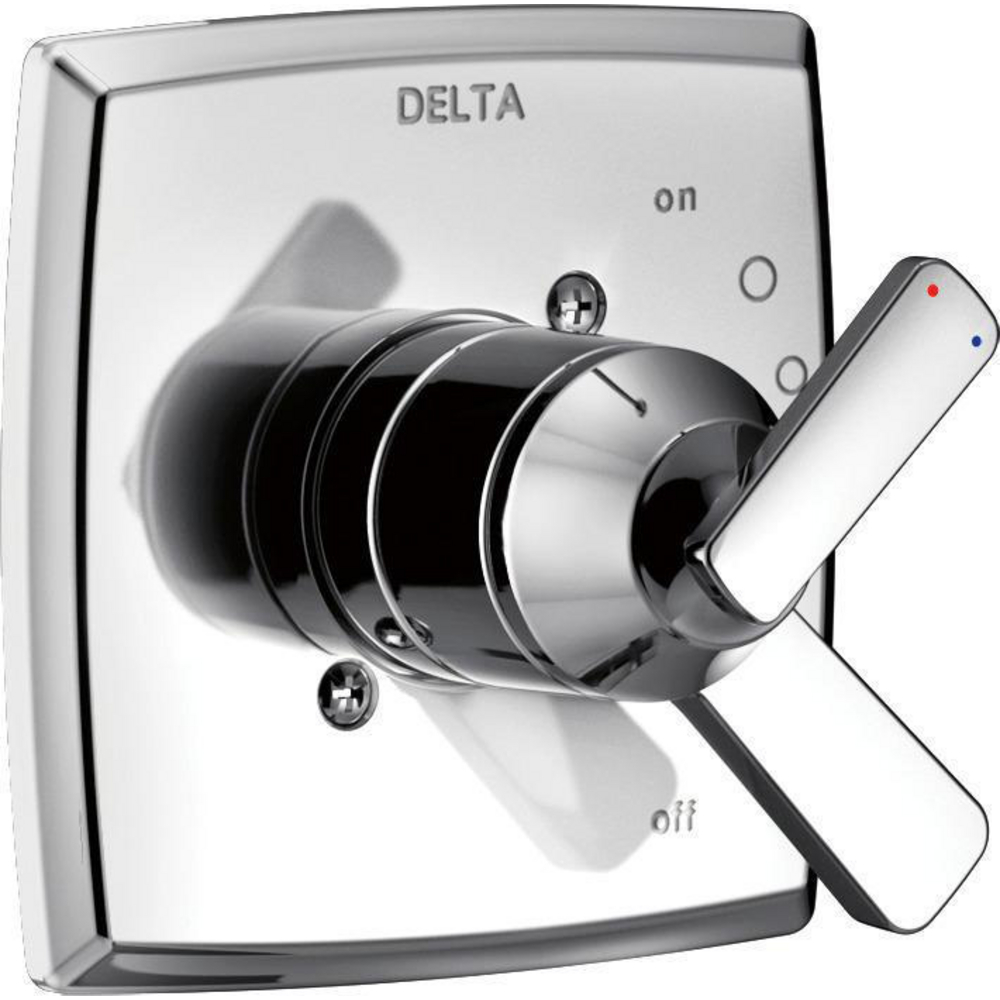

Delta T17064 Ashlyn Monitor 17 Series Valve Only Chrome
ASHLYN
Monitor® 17 Series Valve Only
model#: T17064
Finish: Chrome
Ashlyn Monitor 17 Series Valve Only Trim offers the great looks and quality engineering that fit your lifestyle. Delta's separate rough and trim program allows you to switch your trim without the hassle of changing your rough-in as well. Another great benefit is the ability to have your plumber install the rough-in before you've decided on the trim you want. By installing the rough-in first, you can later decide what type of trim will go perfectly in your bath.
Dual-function pressure balance cartridge
Dial adjusts temperature - Handle adjusts volume
Order MultiChoice Universal rough separately

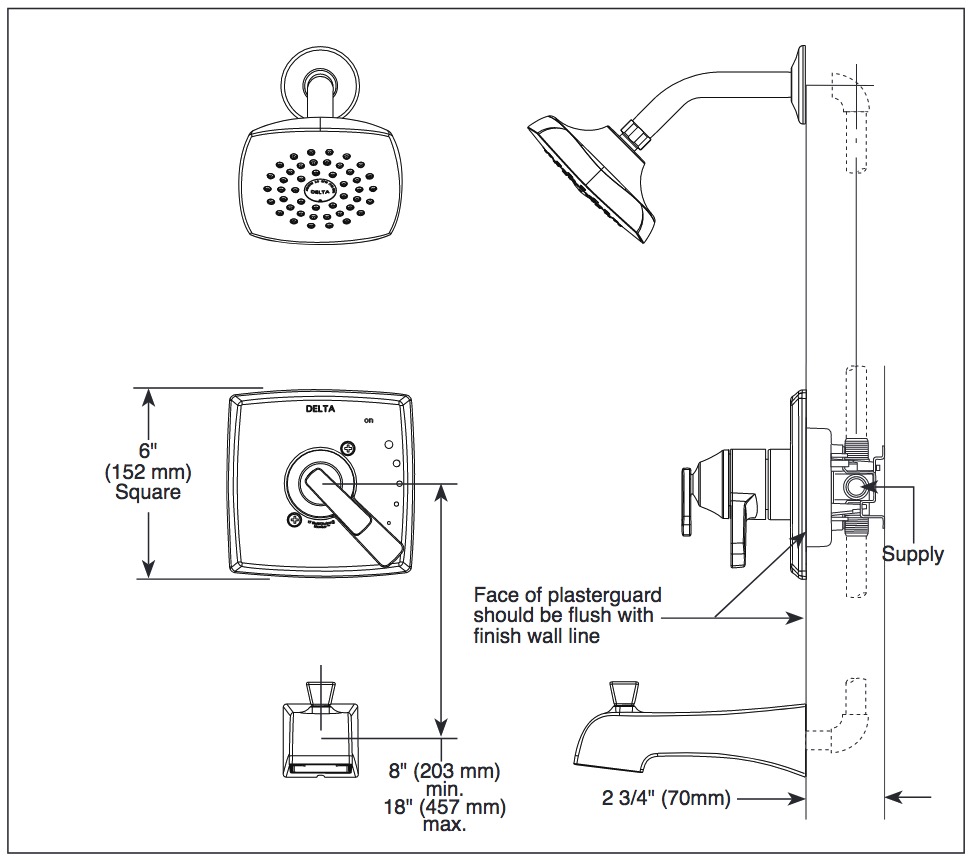

Installation Information
Number of Handles: Single handle
Valve Type: Dual-function pressure balance cartridge
Over All Height: 6
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice® Universal rough valve body (R10000 Series)
Back-to-back installation capability
Solid brass forged body
Lever volume control handle; temperature adjustment dial
Field adjustable to limit handle rotation into hot water zone
Maximum dial rotation adjustable between 90° and 180°
All parts replaceable from the front of the valve
Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Red/blue pad print temperature indicators on handle
Stem extension kit RP77992 can be ordered to allow for an additional 1 3/4" wall thickness.
RP77992 ships with chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
