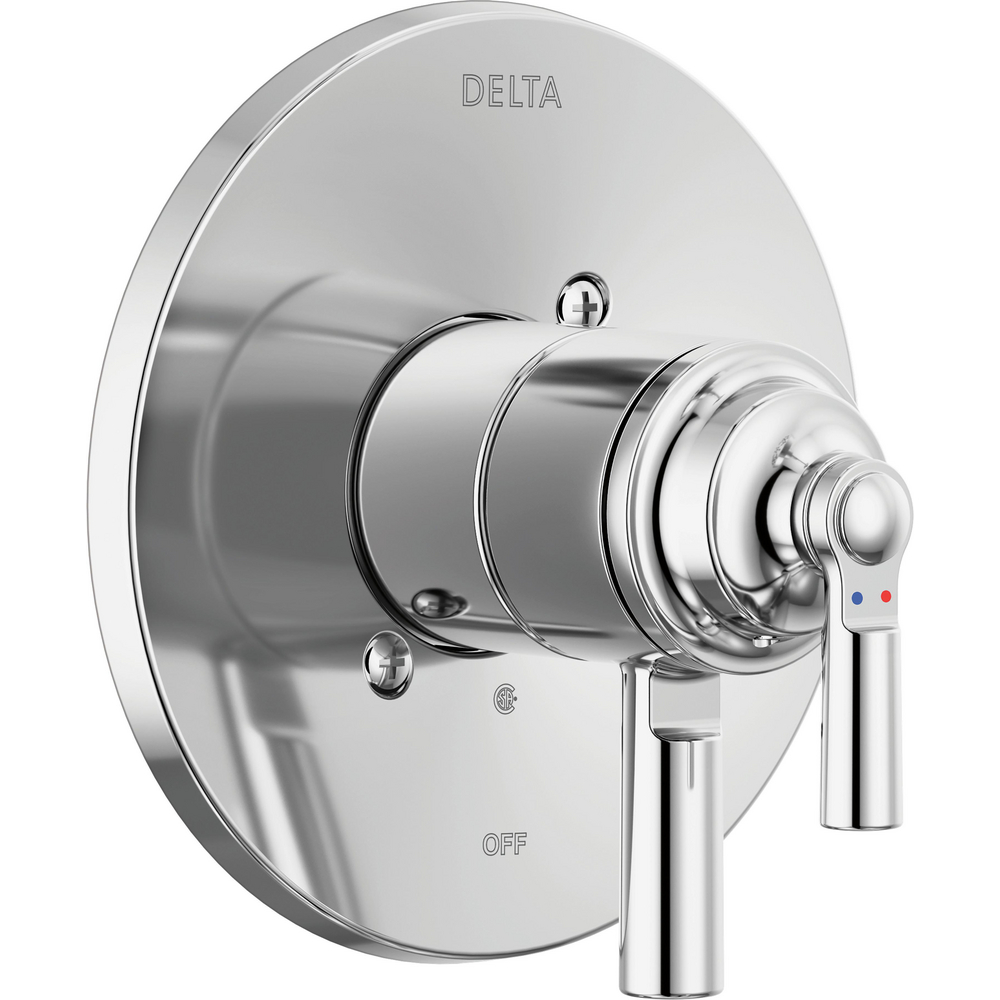

Delta T17035 Saylor 17 Series Valve Only Trim Chrome
SAYLOR
Monitor 17 Series Valve Trim Only
model#: T17035
Finish: Chrome
Valve is not included, must purchase separately
Monitor Valve protects from rapid changes in water temperature
The Saylor Bath Collection is an intriguing blend of traditional and contemporary design elements with strong, geometric forms and hints of industrial style in the handles. With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience.
Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle'without interrupting your set temperature. Delta showers with Monitor pressure-balance valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. You can install with confidence, knowing Delta products are backed by our Lifetime Limited Warranty.
Perfectly coordinates with the Saylor Bath Collection
Monitor pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
Trim kit only, must order MultiChoice Universal valve rough (R10000 Series) separately to complete the unit
Back-to-back installation capability
ADA Compliant
Backed by Delta's Lifetime Limited Warranty

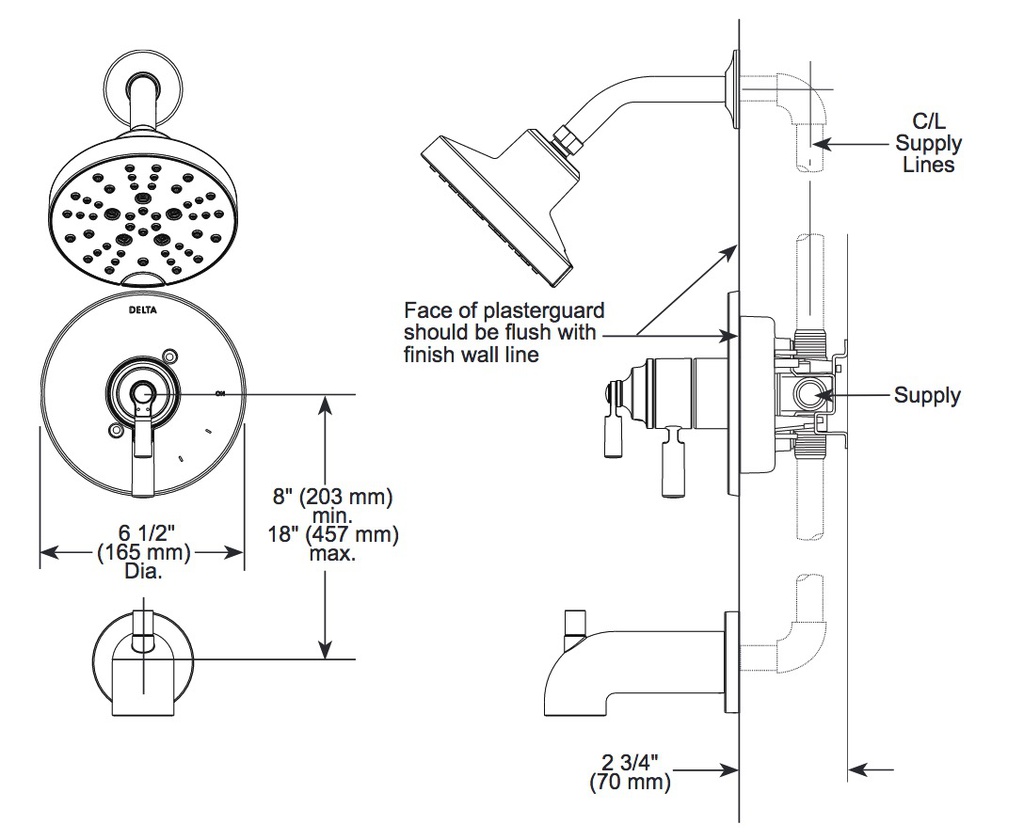

Installation Information
Number of Handles: Single handle
Over All Height: 6-1/2
Valve Type: NA
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice® Universal rough valve body (R10000 Series)
Back-to-back installation capability
Lever volume control handle; temperature adjustment dial
Field adjustable to limit handle rotation into hot water zone
Maximum dial rotation adjustable between 90° and 180°
All parts replaceable from the front of the valve
Maximum flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 6.2 gpm @ 60 psi with R10000-UNBX
Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
Red/blue pad print temperature indicators on the temperature adjustment dial
1/2" CWT slip-on spout adapter
Stem extension kit RP77992 can be ordered to allow for an additional 1 3/4" wall thickness.
RP77992 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense® - Applies to T17235, T17435, T17235-I, and T17435-I only
