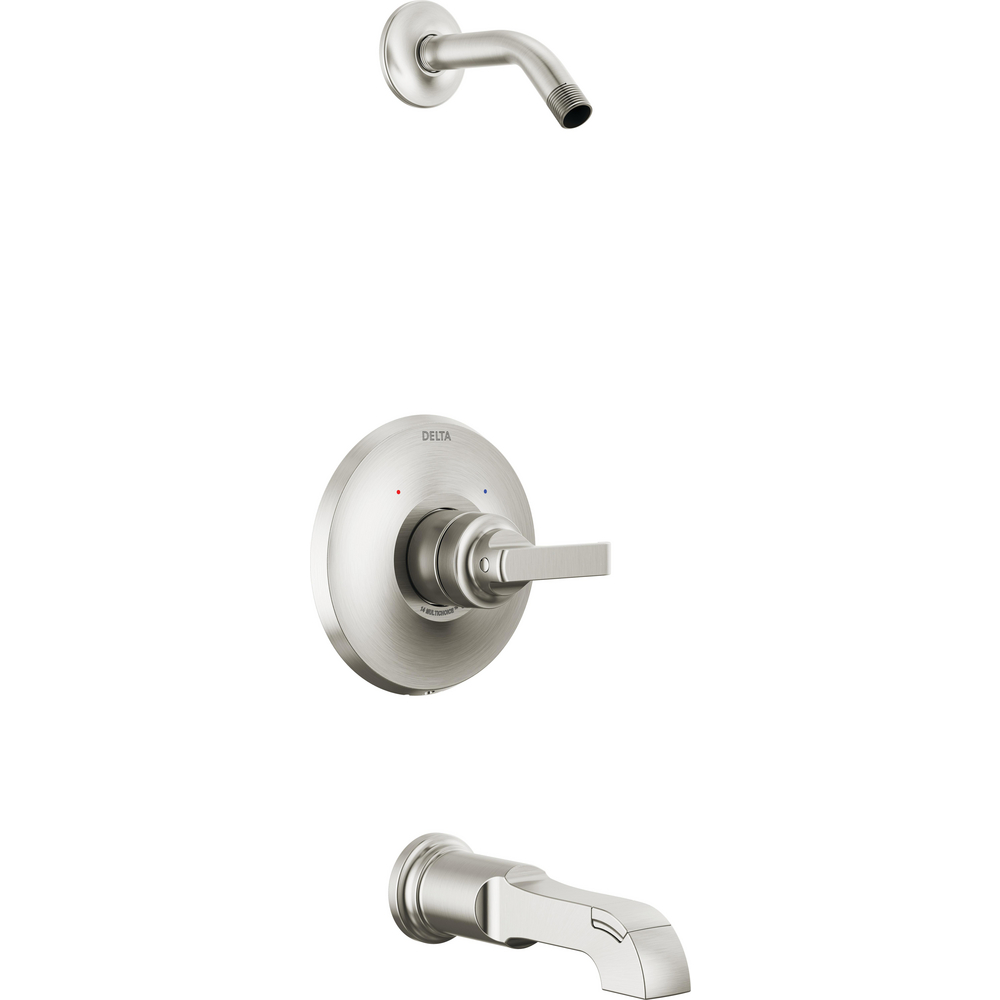

Delta T14489-SS-PR-LHD Tetra 14 Series Tub Shower Trim Less Head Lumicoat Stainless
TETRA
Monitor 14 Series Tub & Shower Trim - Less Head
model#: T14489-SS-PR-LHD
Finish: Lumicoat Stainless
Lumicoat Finishes easily wipe clean without cleaners or chemicals and are guaranteed to resist mineral buildup and hard water stains on the product's most commonly touched areas
Monitor pressure balance valve keeps water temperature within a safe ±3.6° F (± 2.0? C), helping to protect you from sudden changes in hot or cold water pressure
Trim kit only, must order MultiChoice Universal valve rough (R10000) separately to complete the unit
Includes coordinating pull-up diverter tub spout
ADA Compliant
WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
Backed by Delta Faucet's Lifetime Limited Warranty
Installation Information
Number of Handles: Single handle
Over All Height: 12-3/8
Valve Type: NA
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MuiltiChoice® Universal rough valve body (R10000 Series)
Temperature only controlled with handle
Field adjustable to limit handle rotation into hot water zone
1200 maximum handle rotation
All parts replaceable from the front of the valve
Max. flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 6.0 gpm @ 60 psi with R10000-UNBX

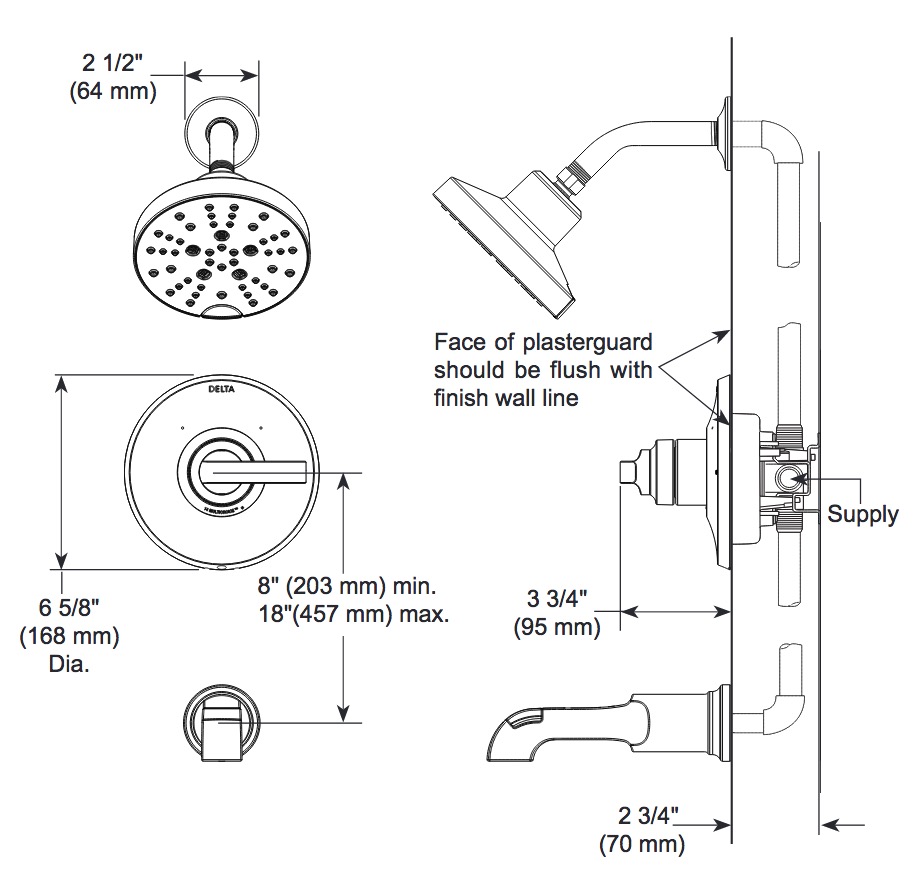

Shower arm overall horizontal length = 5 1/2” (138 mm), including threaded ends
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness.
RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish
Universal adapter included allows for thread, sweat or slip-on installation of RP102060 and RP102061
COMPLIES WITH
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense® - Applies to T14289, T14489, & 52668 only
