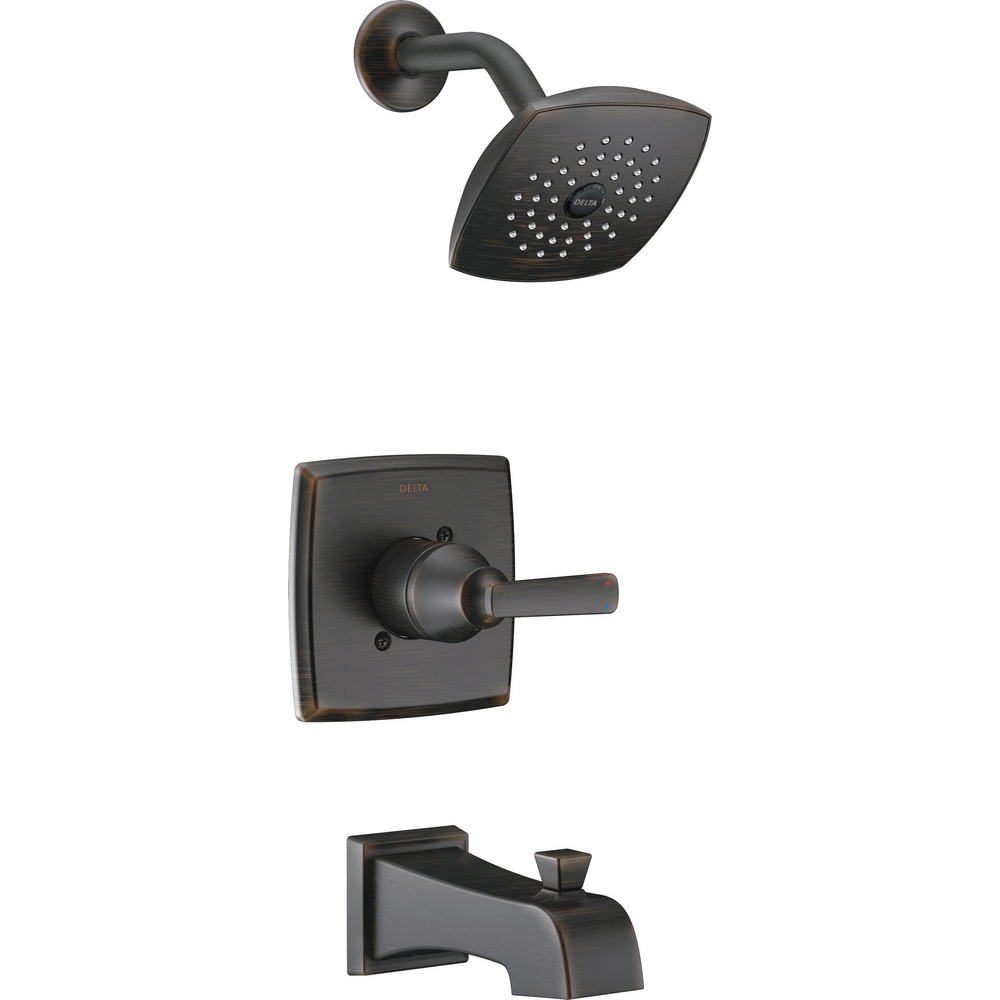

Delta T14464-RB Ashlyn Tub Shower Trim Venetian Bronze
ASHLYN
Tub/Shower Trim
model#: T14464-RB
Finish: Venetian Bronze
Ashlyn 14 Series H2Okinetic Tub and Shower Trim offers the great looks and quality engineering that fit your lifestyle. H2Okinetic Technology sculpts the water into a unique wave pattern, giving the feeling of more water without using more water.
WaterSense certification promotes water conservation
Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
Soft, rubber spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your showerhead and handshower with the touch of a finger
Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
Single function operation
Single lever handle for ease of temperature control
Meets standards set by Americans with Disabilities Act (ADA)
Spray settings include: Full Body

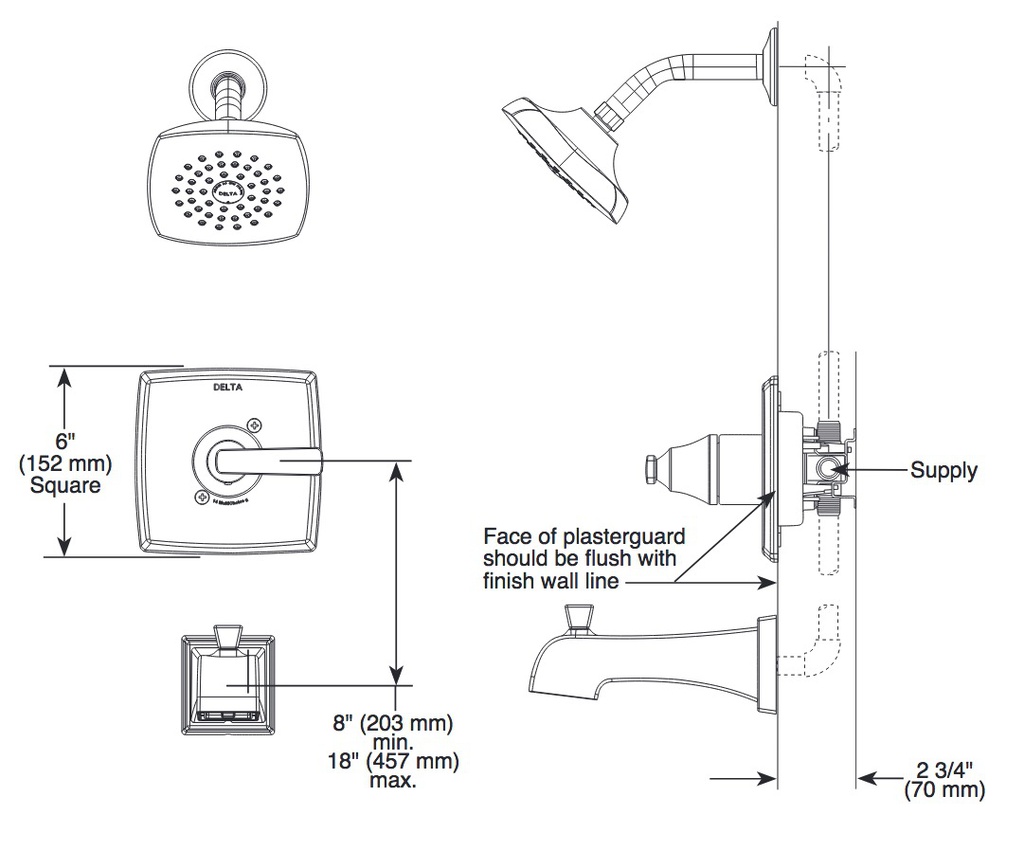

Installation Information
Number of Handles: Single handle
Flow Rate: 1.75 gpm, 6.6 L/min
Spout Length: 7-15/16"
Valve Type: Single-function pressure balance cartridge
Over All Height: 12
Spray Settings: Full Body Spray
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Back-to-back installation capability.
Solid brass forged body.
Temperature only controlled with handle.
Field adjustable to limit handle rotation into hot water zone.
120° maximum handle rotation.
All parts replaceable from the front of the valve.
Red/blue pad print temperature indicators on handle.
"-LHD" models indicate less showerhead.
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
