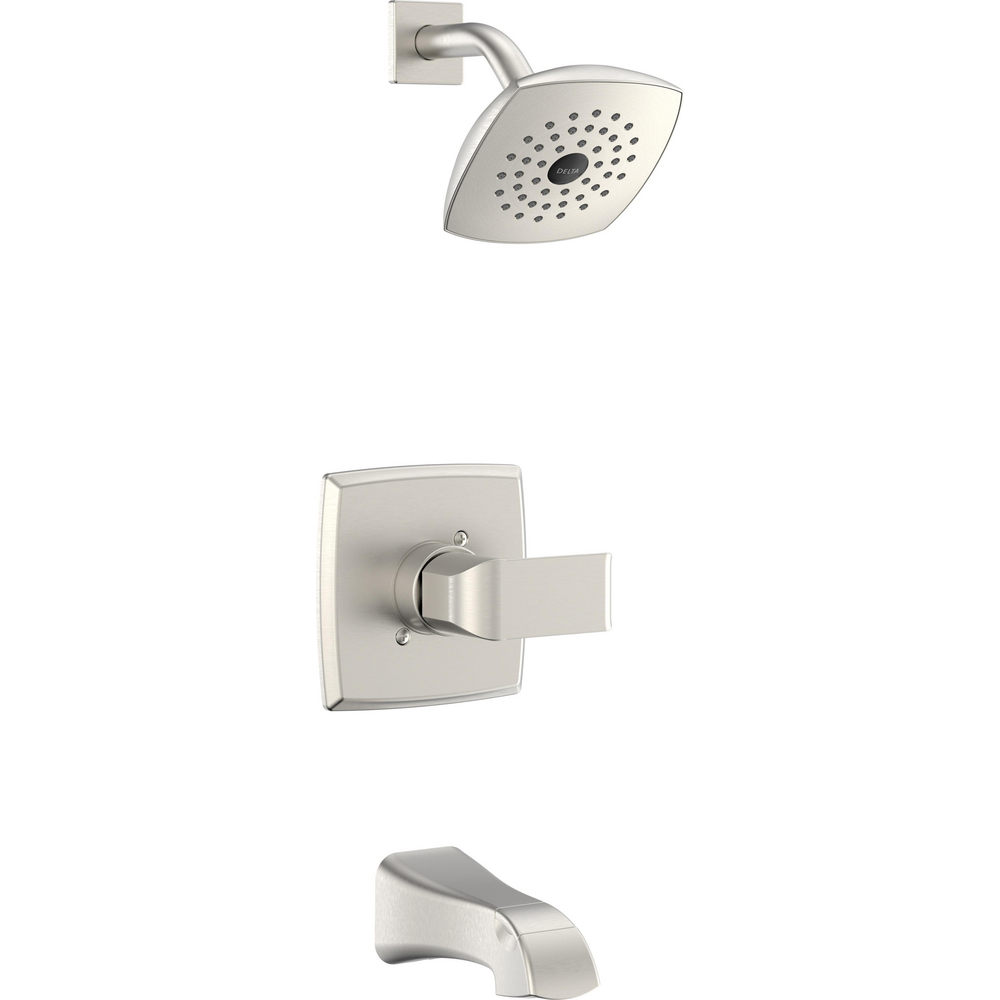

Delta T14463-SS Kitano 14 Series Tub Shower Trim Stainless Steel
KITANO
14 Series Tub/Shower Trim
model#: T14463-SS
Finish: Stainless Steel

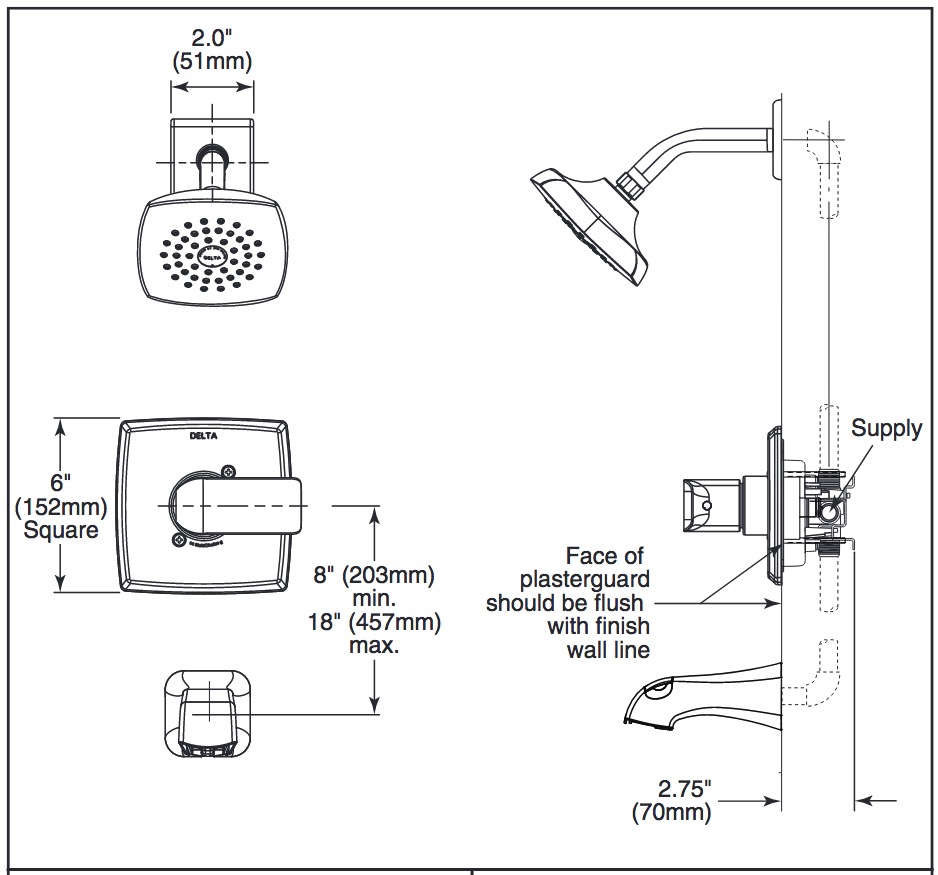

Installation Information
Number of Handles: Single handle
Flow Rate: 2.00 gpm, 7.6 L/min
Fittings Type: Universal fittings
Drain Type: NA
Valve Type: Single-function pressure balance cartridge
Spray Settings: H2Okinetic ® Spray,Full Body Spray
STANDARD SPECIFICATIONS:
Monitor® 14 Series pressure balanced bath single handle mixing valve trim
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice® Universal rough valve body (R10000 Series)
Back-to-back installation capability
Solid brass forged body
Temperature only controlled with handle
Red/blue temperature indicators
Field adjustable to limit handle rotation into hot water zone
120° maximum handle rotation
All parts replaceable from the front of the valve
“-LHD” models indicate less showerhead
Maximum 2.0 gpm @ 80 psi (7.6 L/min @ 550 kPa)
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
EPA WaterSense®
Indicates compliance to ICC/ANSI A117.1
