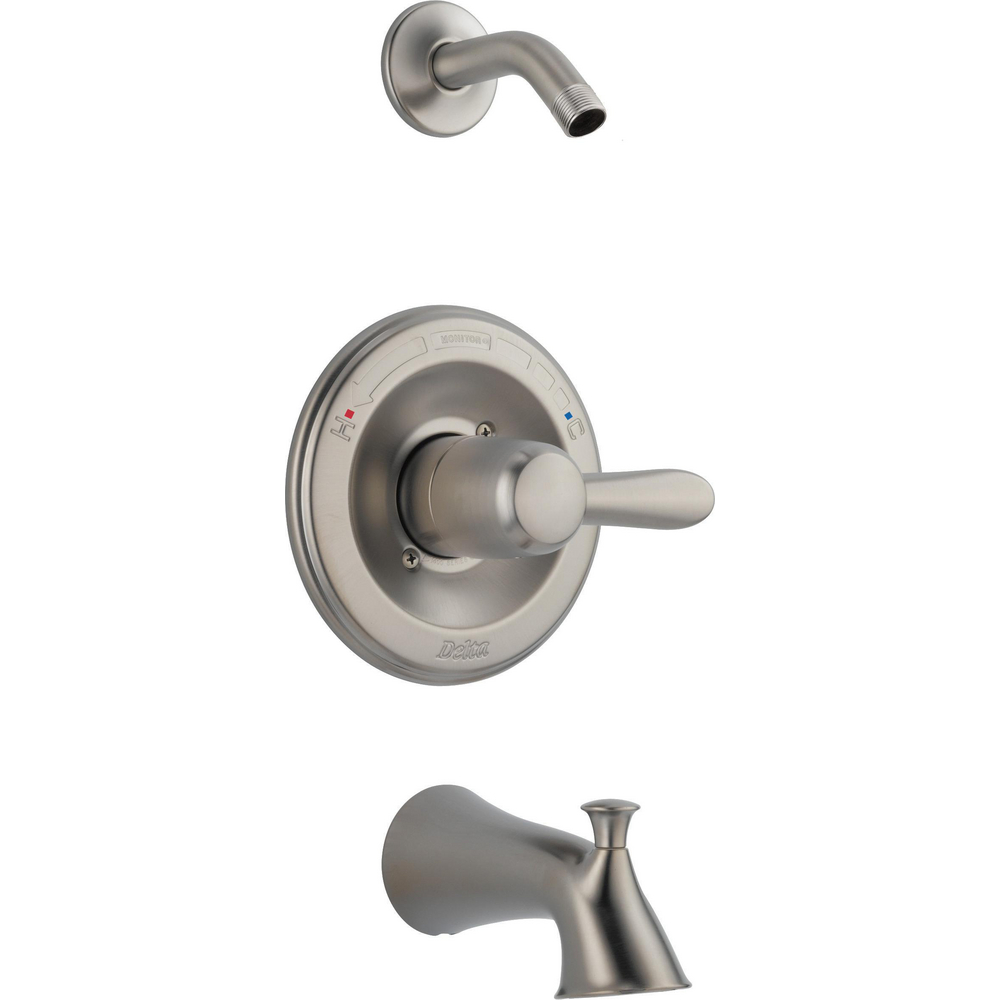

Delta T14438-SSLHD Lahara 14 Series Tub And Shower Trim Stainless
LAHARA
Monitor® 14 Series Tub and Shower Trim
model#: T14438-SSLHD
Finish: Stainless
Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
Meets standards set by Americans with Disabilities Act (ADA)
LHD= Less shower head (order separately)
Single function operation
Single lever handle for ease of temperature control

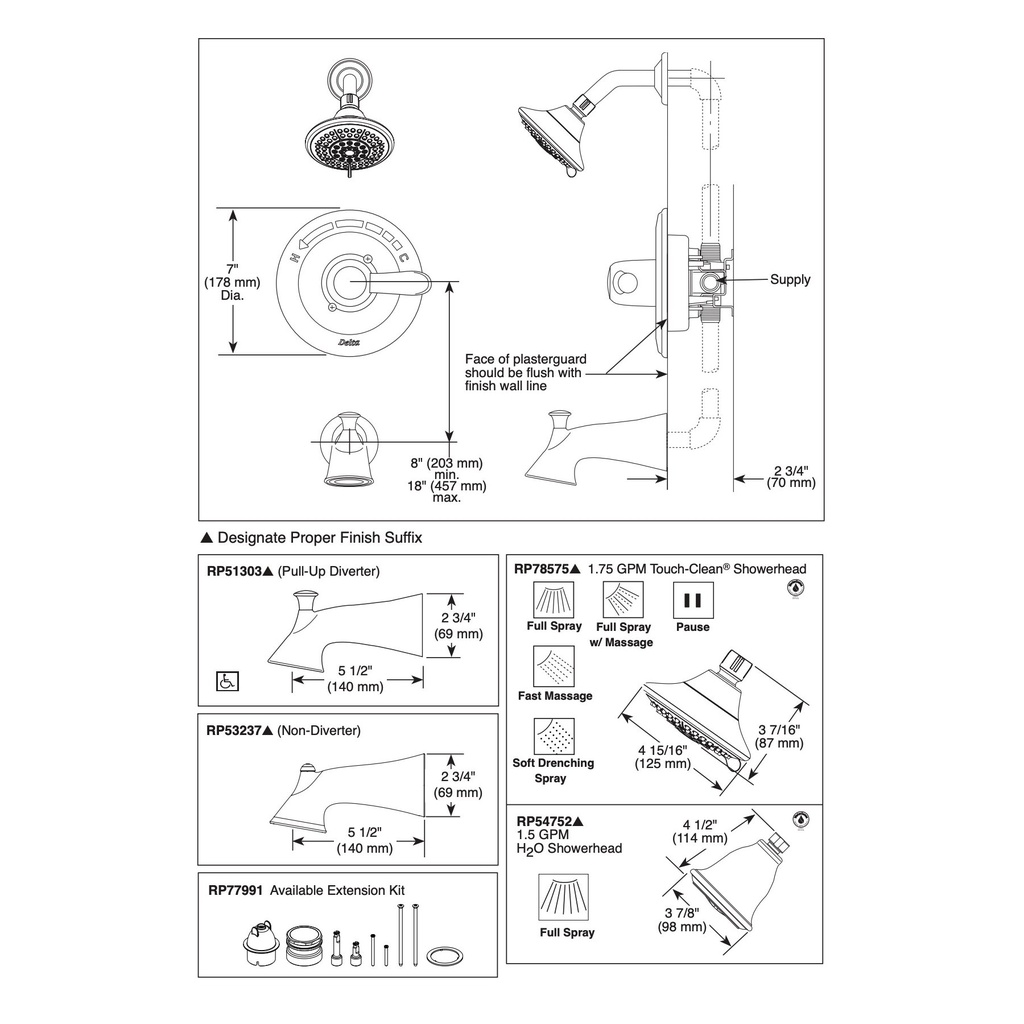

Installation Information
Number of Handles: Single handle
Spout Length: 6-3/4"
Valve Type: Single-function pressure balance cartridge
Over All Height: 13-1/16
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Back-to-back installation capability.
Solid brass forged body.
Temperature only controlled with handle.
Field adjustable to limit handle rotation into hot water zone.
120° maximum handle rotation.
All parts replaceable from the front of the valve.
1.75 gpm max @ 80 psi, 1.5 gpm @ 80 psi for product marked -H2O
"-LHD" models have pad printed red/blue temperature indication less showerhead.
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
