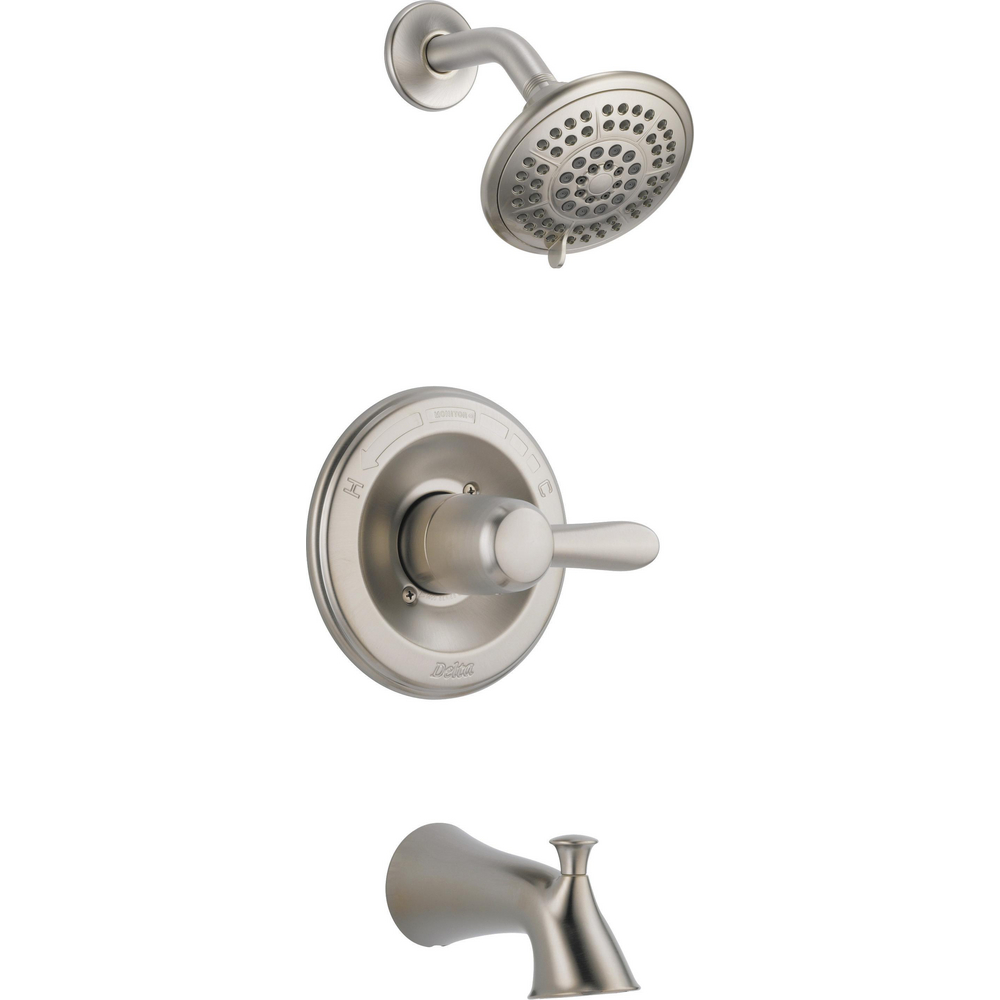

Delta T14438-SS Lahara 14 Series Tub and Shower Trim Stainless
LAHARA
Monitor® 14 Series Tub and Shower Trim
model#: T14438-SS
Finish: Stainless
While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look ' with no need for soaking or the aid of chemical cleaners. Delta pressure-balance valves use Monitor Technology to protect you and your family from sudden temperature changes.
Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard'saving you money without compromising performance.
Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
Spray settings: Pause, Full Body Spray, Full Spray w/Massage, Fast Massage, Soft Drench Spray
Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
Single function operation
Single lever handle for ease of temperature control
Meets standards set by Americans with Disabilities Act (ADA)
WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance

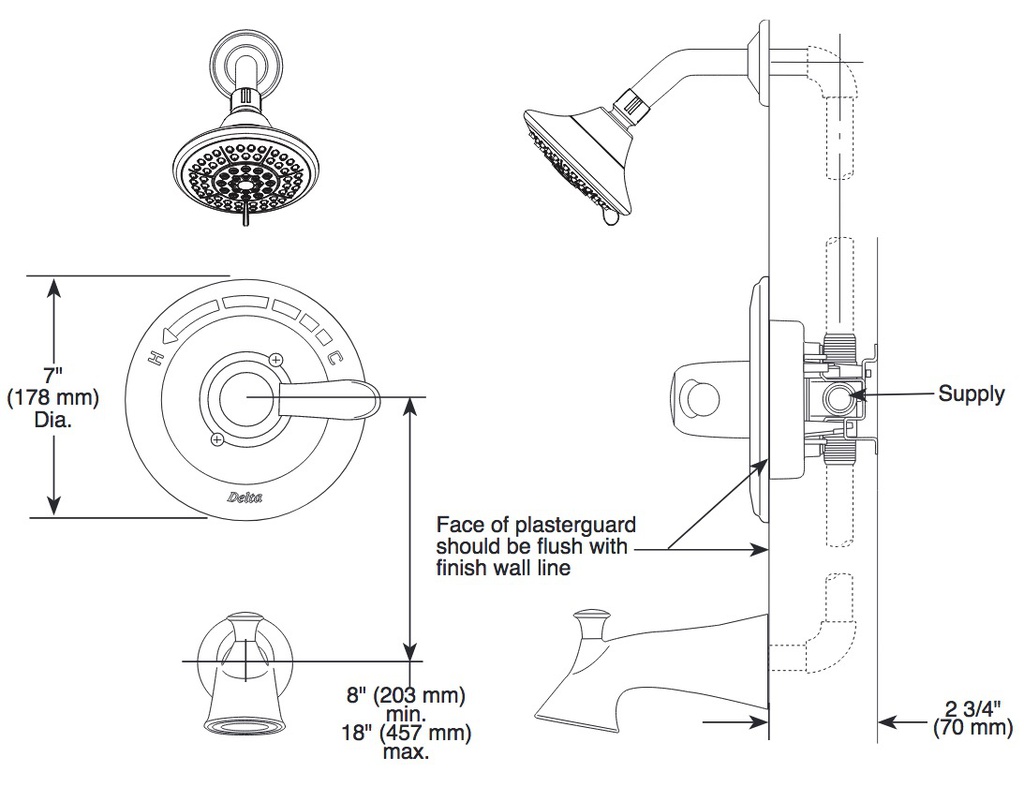

Installation Information
Number of Handles: Single handle
Flow Rate: 1.75 gpm, 6.6 L/min
Spout Length: 6-3/4"
Valve Type: Single-function pressure balance cartridge
Over All Height: 13-1/16
Spray Settings: Full Body Spray
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Back-to-back installation capability.
Solid brass forged body.
Temperature only controlled with handle.
Field adjustable to limit handle rotation into hot water zone.
120° maximum handle rotation.
All parts replaceable from the front of the valve.
1.75 gpm max @ 80 psi, 1.5 gpm @ 80 psi for product marked -H2O
"-LHD" models have pad printed red/blue temperature indication less showerhead.
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
