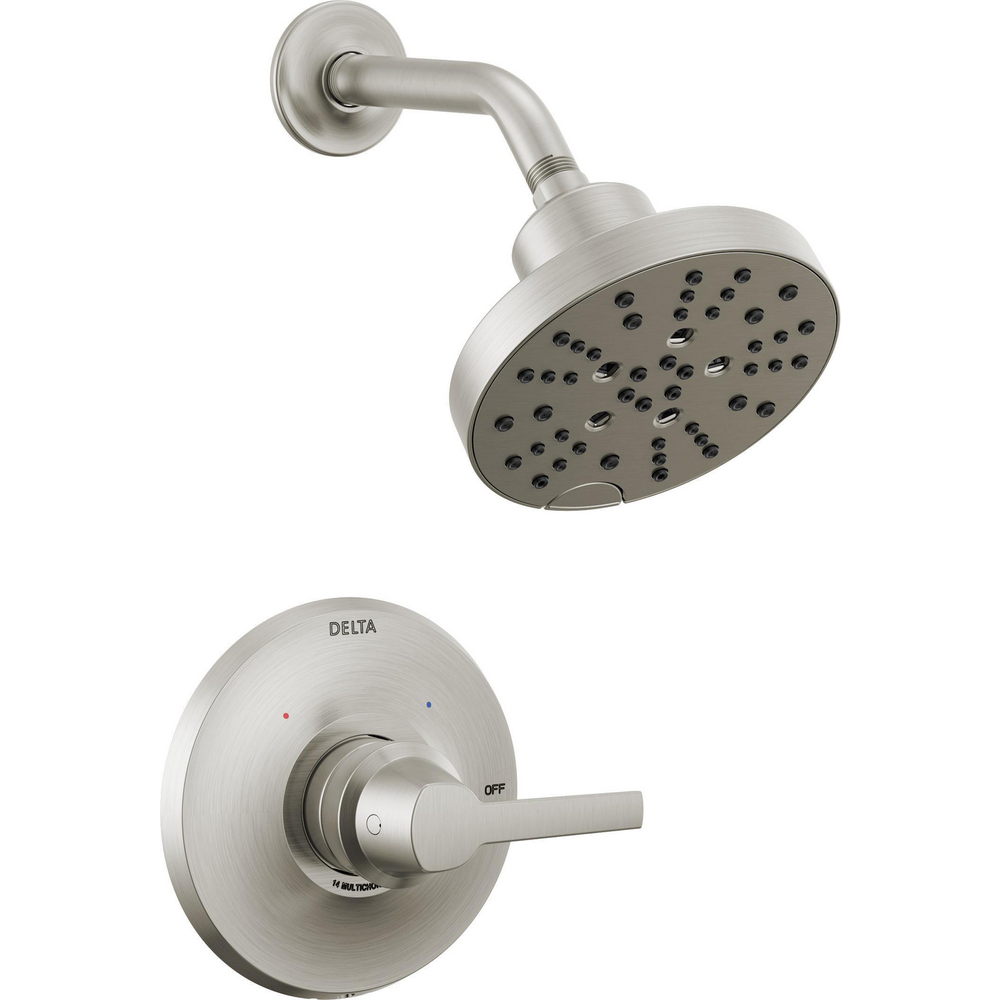

Delta T14272-SS-PR Galeon 14 Series Shower Trim With H2Okinetic Lumicoat Stainless
GALEON
14 Series Shower Trim with H2OKinetic
model#: T14272-SS-PR
Finish: Lumicoat Stainless
Shower faucet trim kit only, purchase shower valve separately
Monitor Valve protects from rapid changes in water temperature
With a design inspired by the shape of sailboats, the Galeon Bath Collection brings a chiseled, contemporary look into the bath. Delta showers with Monitor pressure-balance valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine.
Our H2Okinetic Showers look different because they are different. H2Okinetic showers are powered by an innovative technology that sculpts the water into a unique wave pattern, giving you the feeling of more water and water pressure. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
H2Okinetic Technology showers feel like more water and more pressure, with more coverage
H2Okinetic PowerDrench Spray creates powerful water patterns, for an energizing experience
Spray settings include: H2Okinetic PowerDrench spray, Full Body spray, Massaging spray, Full spray with Massage, and Pause
Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime buildup from the spray face of your shower head with the touch of a finger
Monitor 14 Series single-function pressure balance cartridge
Monitor pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
Trim kit only, must order MultiChoice Universal valve rough (R10000 series) separately to complete the unit
Temperature only controlled with handle
ADA Compliant
Stem extension kit RP77991 can be ordered separately to allow for an additional 1-3/4 inch wall thickness
WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
Backed by Delta Faucet's Lifetime Limited Warranty
Installation Information
Number of Handles: Single handle
Over All Height: 6-1/2
Valve Type: NA
Spray Settings
H2Okinetic ® Spray,H2Okinetic ® Spray with Massage,Full Body Spray,Full Spray with Massage,Pause
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MuiltiChoice® Universal rough valve body (R10000 Series)
Temperature only controlled with handle
Field adjustable to limit handle rotation into hot water zone
1200 maximum handle rotation
All parts replaceable from the front of the valve
Max. flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 6.0 gpm @ 60 psi with R10000-UNBX

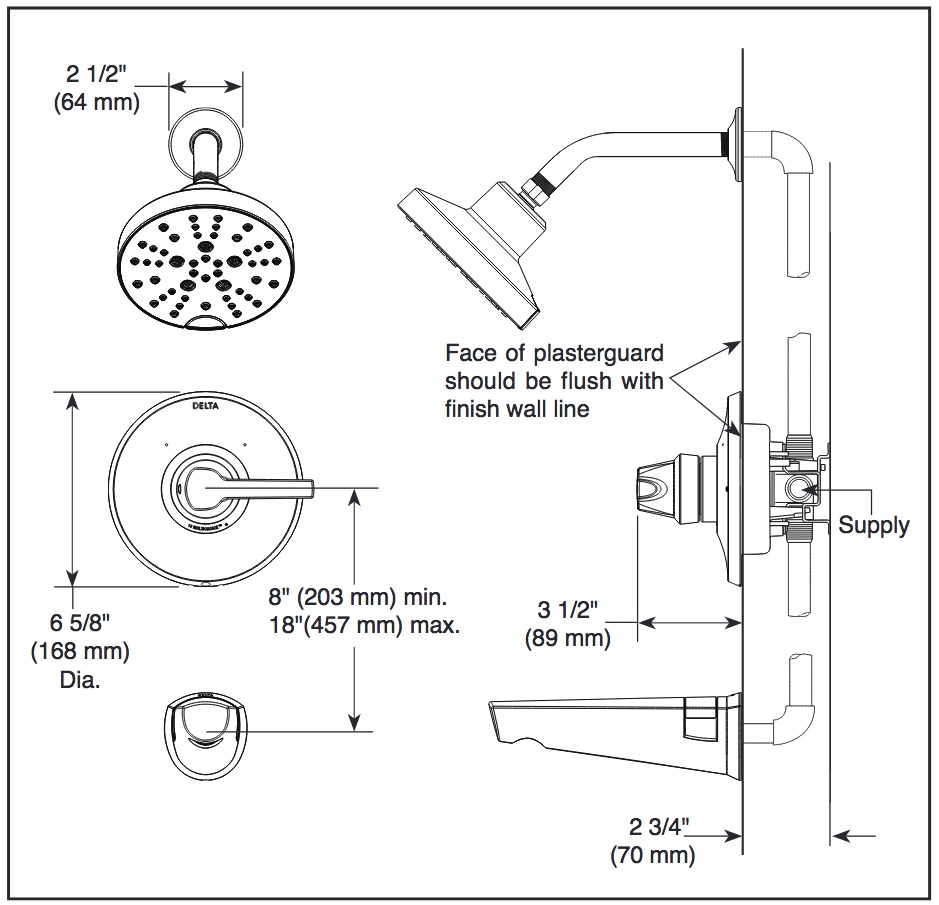

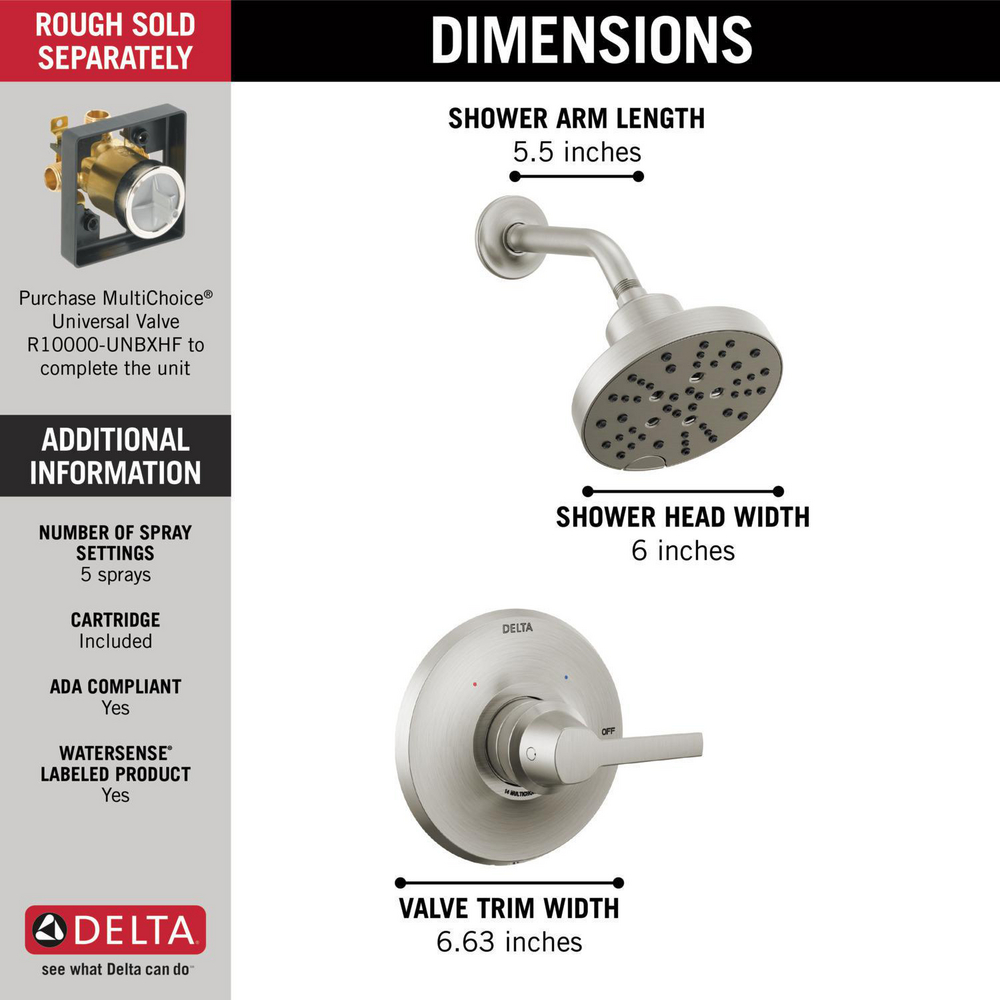

Shower arm overall horizontal length = 5 1/2” (138 mm), including threaded ends
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness.
RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish
Thread-on tub spout connection
COMPLIES WITH
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense® - Applies to T14272, T14472, & 52668 only
