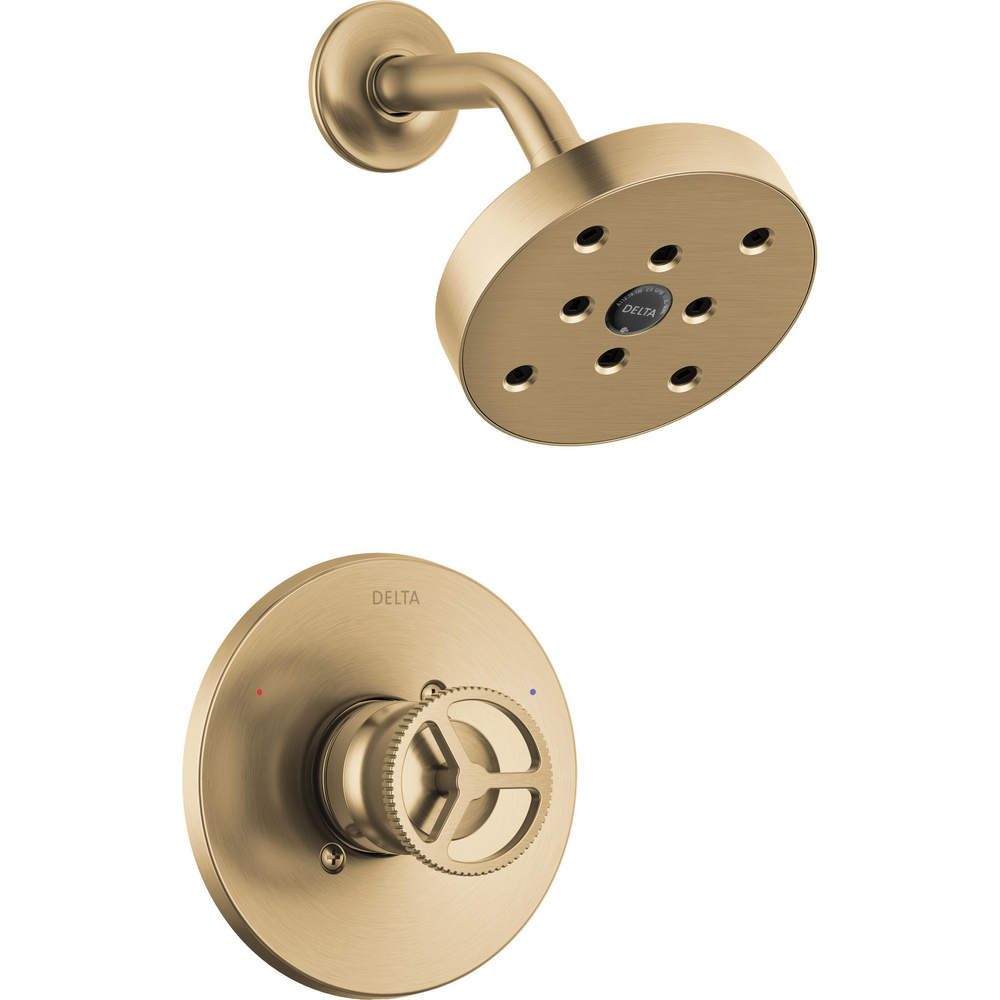

Delta T14258-CZ Trinsic H2O Shower Trim Champagne Bronze
TRINSIC
H2O Shower Trim 1L
model#: T14258-CZ
Finish: Champagne Bronze
Shower faucet trim kit only, purchase shower valve separately
H2Okinetic Technology: 3X the coverage of a standard shower head
Inspired by the sleek elegance of modern European design, the Trinsic Bath Collection is perfect for any contemporary bath and now features a wheel handle option for an industrial look. Delta H2Okinetic Showers use advanced technology to sculpt water into a unique wave pattern that gives you 3X the coverage of a standard shower head, resulting in a truly drenching shower experience that provides more coverage, more warmth and more intensity.
Delta showers with Monitor pressure-balance valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. You can install with confidence, knowing Delta products are backed by our Limited Lifetime Warranty.
H2Okinetic Technology showers feel like more water, more pressure and more coverage without using more water
H2Okinetic PowerDrench Spray creates powerful water patterns, for an energizing experience
Monitor pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
Spray settings include: H2Okinetic PowerDrench Spray
Trim kit only, must order MultiChoice Universal valve rough separately to complete the unit
Temperature only controlled with handle
WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness.
Backed by Delta Faucet's Limited Lifetime Warranty

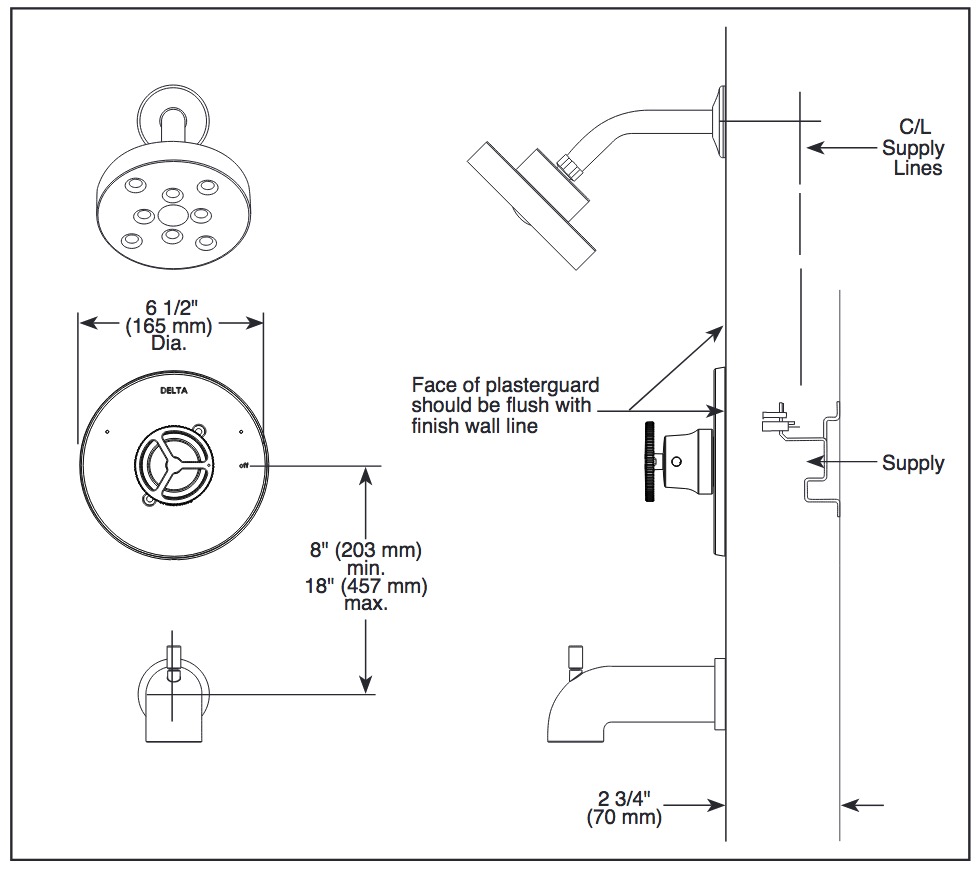

Installation Information
Over All Height: 13
Valve Type: NA
Spray Settings: H2Okinetic ® Spray
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice® Universal rough valve body (R10000 Series)
Temperature only controlled with handle
Field adjustable means to limit handle rotation into hot water zone
120° maximum handle rotation
Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 6.0 gpm @ 60 psi with R10000-UNBX
Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
Red/blue pad print temperature indicators on escutcheon
"-LHD" models indicate less showerhead
1/2" CWT slip-on spout adapter
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
EPA WaterSense® - Applies to T14258, T14458, & RP70175
