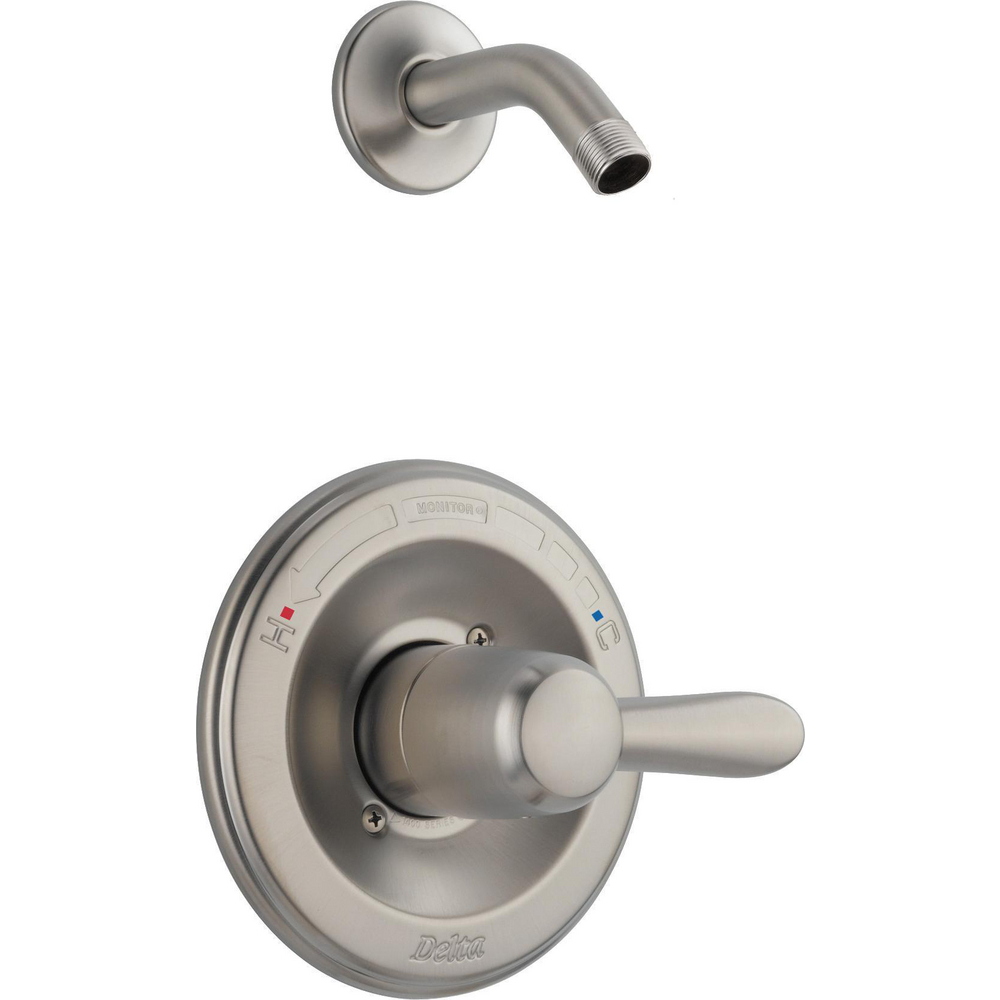

Delta T14238-SSLHD Lahara Monitor 14 Series Shower Trim Stainless
LAHARA
Monitor® 14 Series Shower Trim
model#: T14238-SSLHD
Finish: Stainless
Delta pressure-balance valves use Monitor Technology to protect you and your family from sudden temperature changes. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility.
Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia.
Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
ADA Compliant

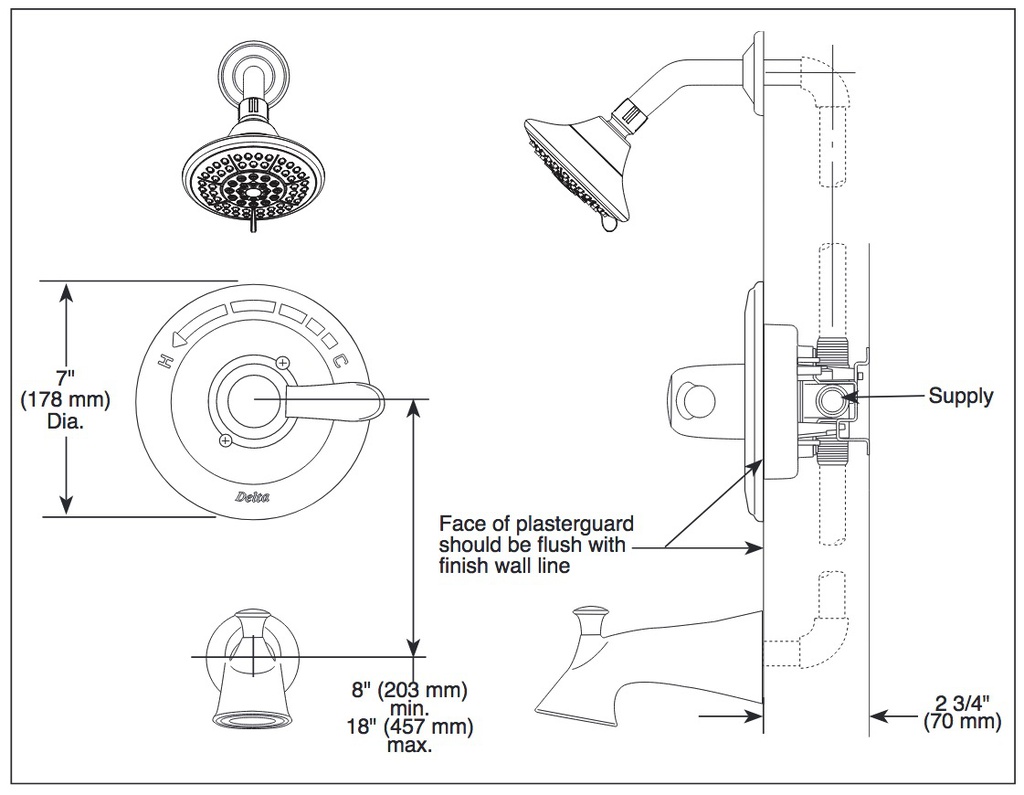

Installation Information
Number of Handles: Single handle
Valve Type: Single-function pressure balance cartridge
Over All Height: 9-1/2
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Back-to-back installation capability.
Solid brass forged body.
Temperature only controlled with handle.
Field adjustable to limit handle rotation into hot water zone.
120° maximum handle rotation.
All parts replaceable from the front of the valve.
1.75 gpm max @ 80 psi, 1.5 gpm @ 80 psi for product marked -H2O
"-LHD" models have pad printed red/blue temperature indication less showerhead.
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
