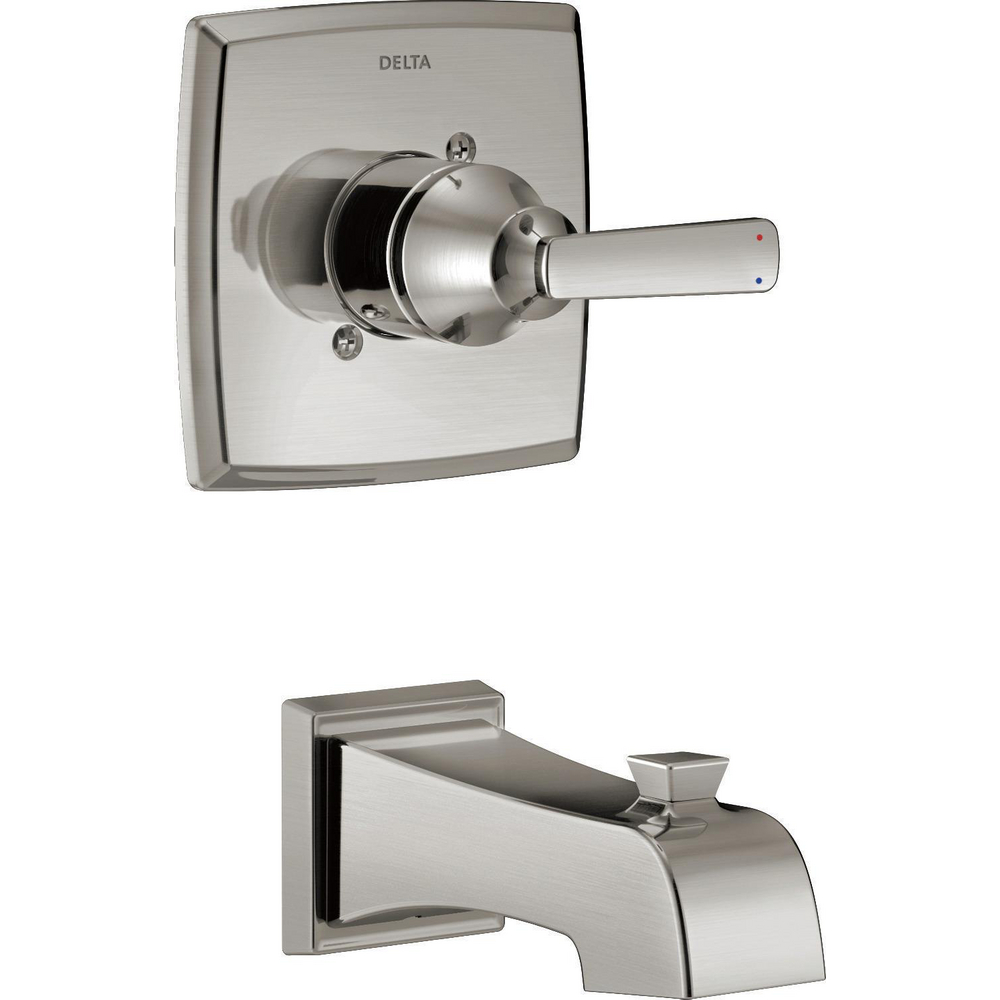

Delta T14164-SS Ashlyn Tub Only Trim Stainless
ASHLYN
Tub Only Trim
model#: T14164-SS
Finish: Stainless

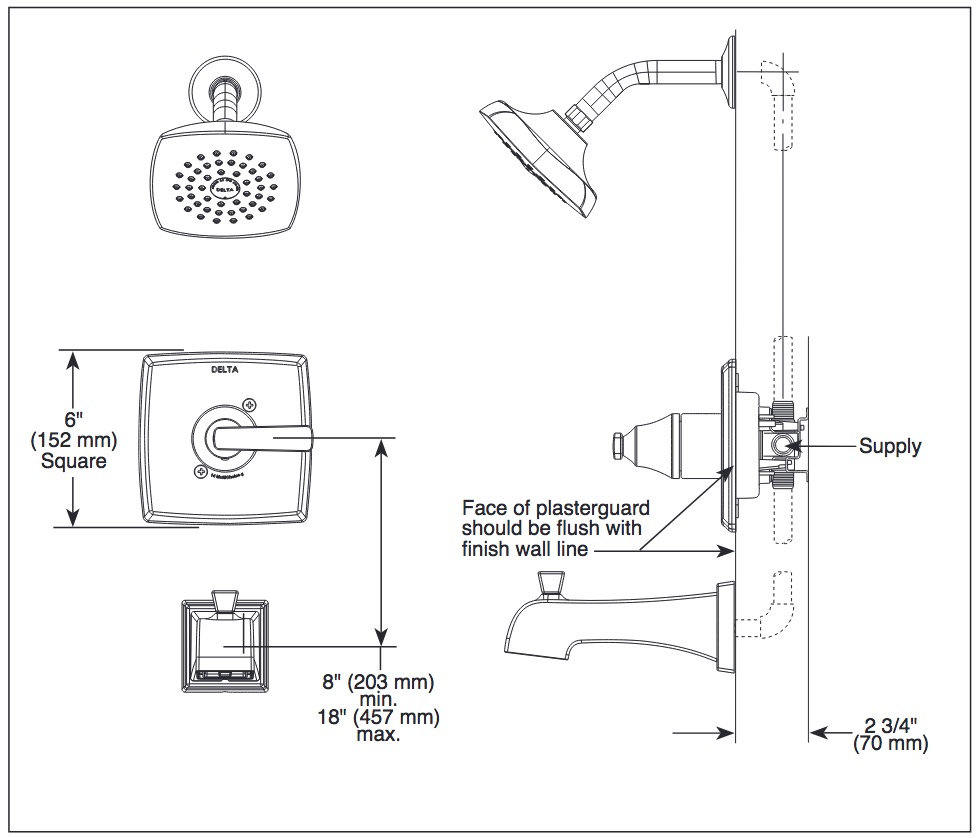

Installation Information
Number of Handles: Single handle
Spout Length: 7-15/16"
Valve Type: Single-function pressure balance cartridge
Over All Height: 3
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Back-to-back installation capability.
Solid brass forged body.
Temperature only controlled with handle.
Field adjustable to limit handle rotation into hot water zone.
120° maximum handle rotation.
All parts replaceable from the front of the valve.
Red/blue pad print temperature indicators on handle.
"-LHD" models indicate less showerhead.
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
