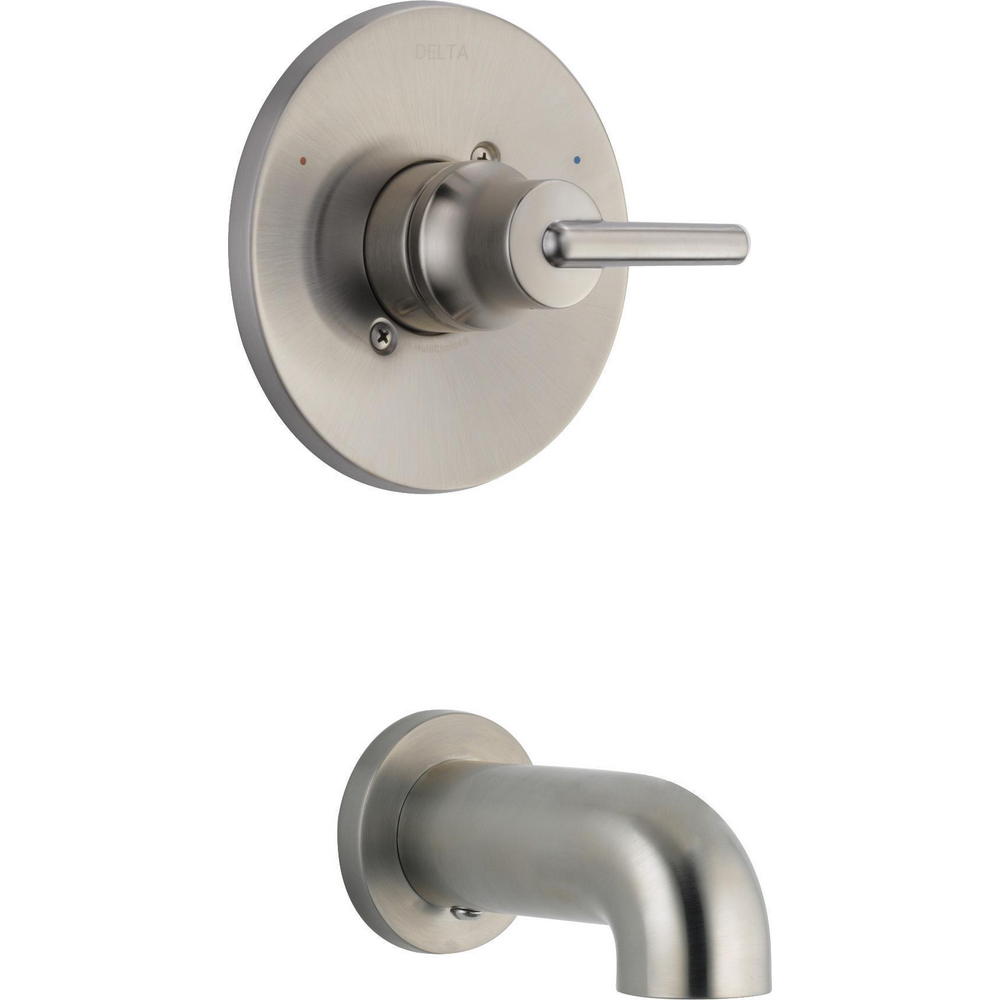

Delta T14159-SS Trinsic Tub Only Trim Stainless
TRINSIC
Tub Only Trim
model#: T14159-SS
Finish: Stainless
Installation Information
Number of Handles: Single handle
Over All Height: 6
Valve Type: NA
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice® Universal rough valve body (R10000 Series)
Temperature only controlled with handle
Field adjustable means to limit handle rotation into hot water zone
120° maximum handle rotation
Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Red/blue pad print temperature indicators on escutcheon
"-LHD" models indicate less showerhead
1/2" CWT slip-on spout adapter
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
