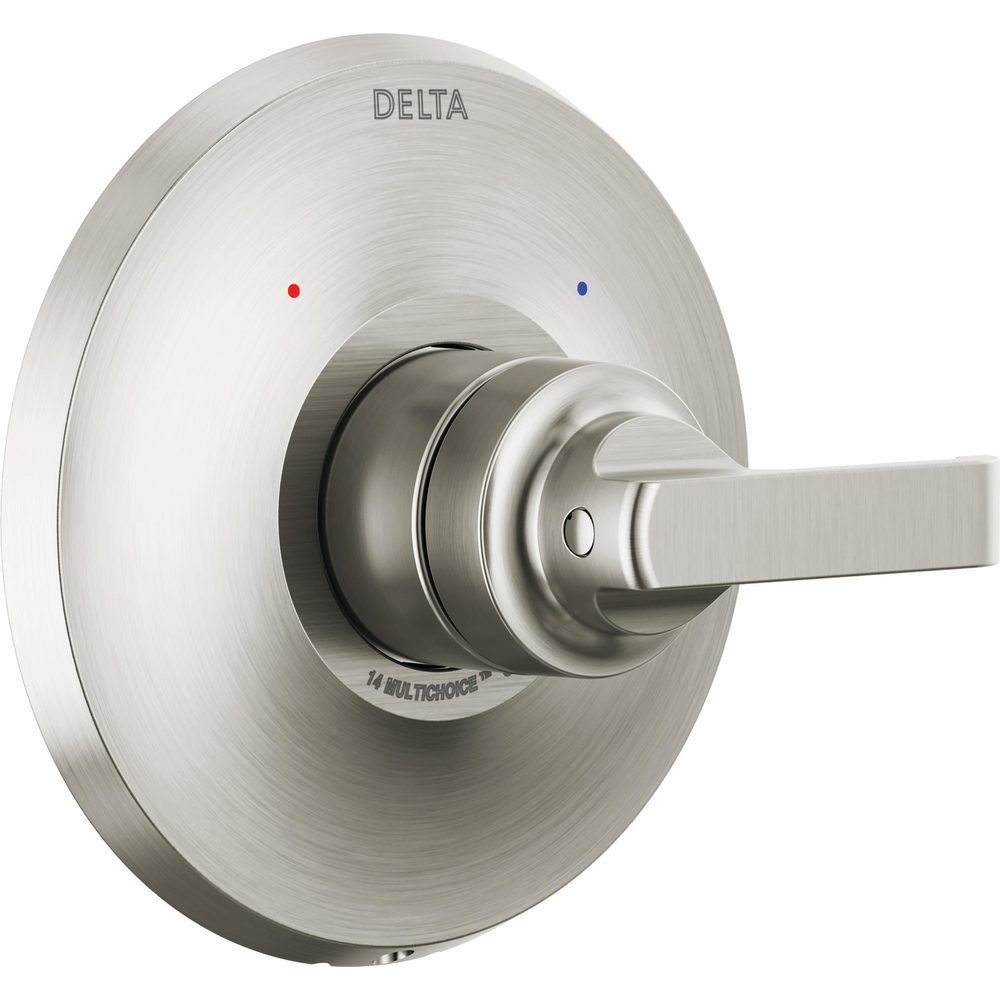

Delta T14089-SS-PR Tetra 14 Series Valve Only Trim Lumicoat Stainless
TETRA
14 Series Valve Only Trim
model#: T14089-SS-PR
Finish: Lumicoat Stainless
Familiar geometries and subtle curves in the Tetra Bath Collection combine to bring a sleek, architectural look and feel to the bath. Delta showers with Monitor pressure-balance valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. You can install with confidence, knowing Delta products are backed by our Lifetime Limited Warranty.
Monitor pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
Trim kit only, must order MultiChoice Universal valve rough (R10000) separately to complete the unit
Single function cartridge
Temperature only controlled with handle
ADA Compliant
Backed by Delta Faucet's Lifetime Limited Warranty

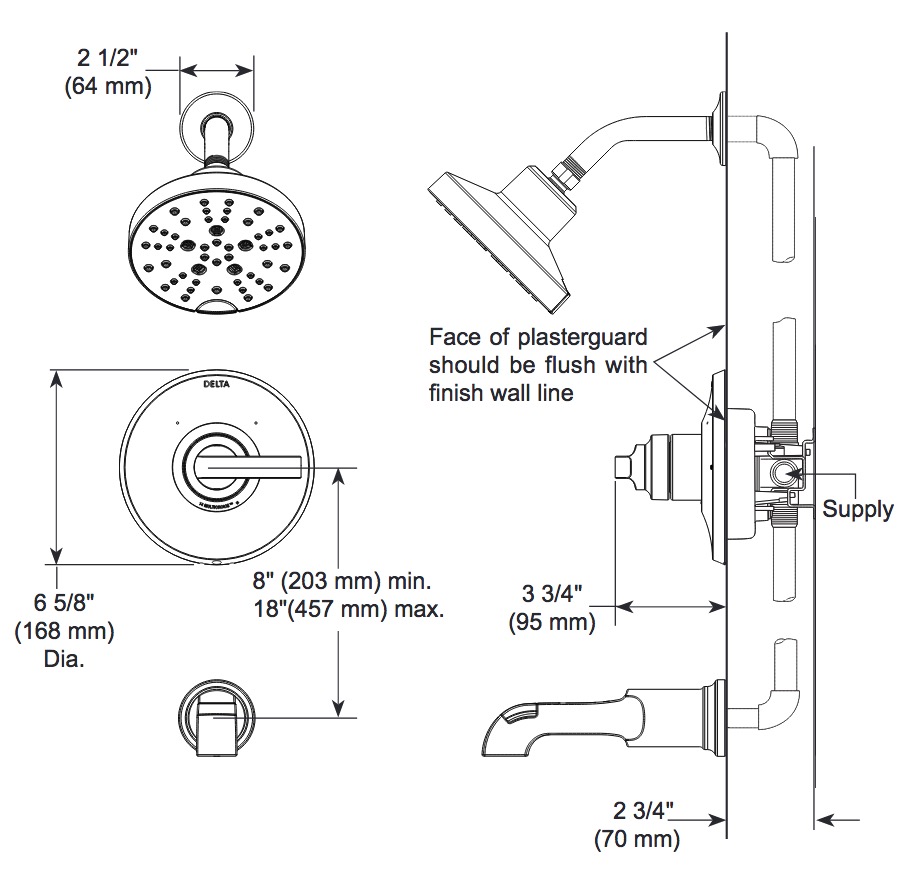

Installation Information
Number of Handles: Single handle
Over All Height: 6-5/8
Valve Type: NA
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MuiltiChoice® Universal rough valve body (R10000 Series)
Temperature only controlled with handle
Field adjustable to limit handle rotation into hot water zone
1200 maximum handle rotation
All parts replaceable from the front of the valve
Max. flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 6.0 gpm @ 60 psi with R10000-UNBX
Shower arm overall horizontal length = 5 1/2” (138 mm), including threaded ends
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish
Universal adapter included allows for thread, sweat or slip-on installation of RP102060 and RP102061
COMPLIES WITH
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense® - Applies to T14289, T14489, & 52668 only
