Delta T14067 Ara Monitor 14 Series Valve Only Trim Chrome
ARA

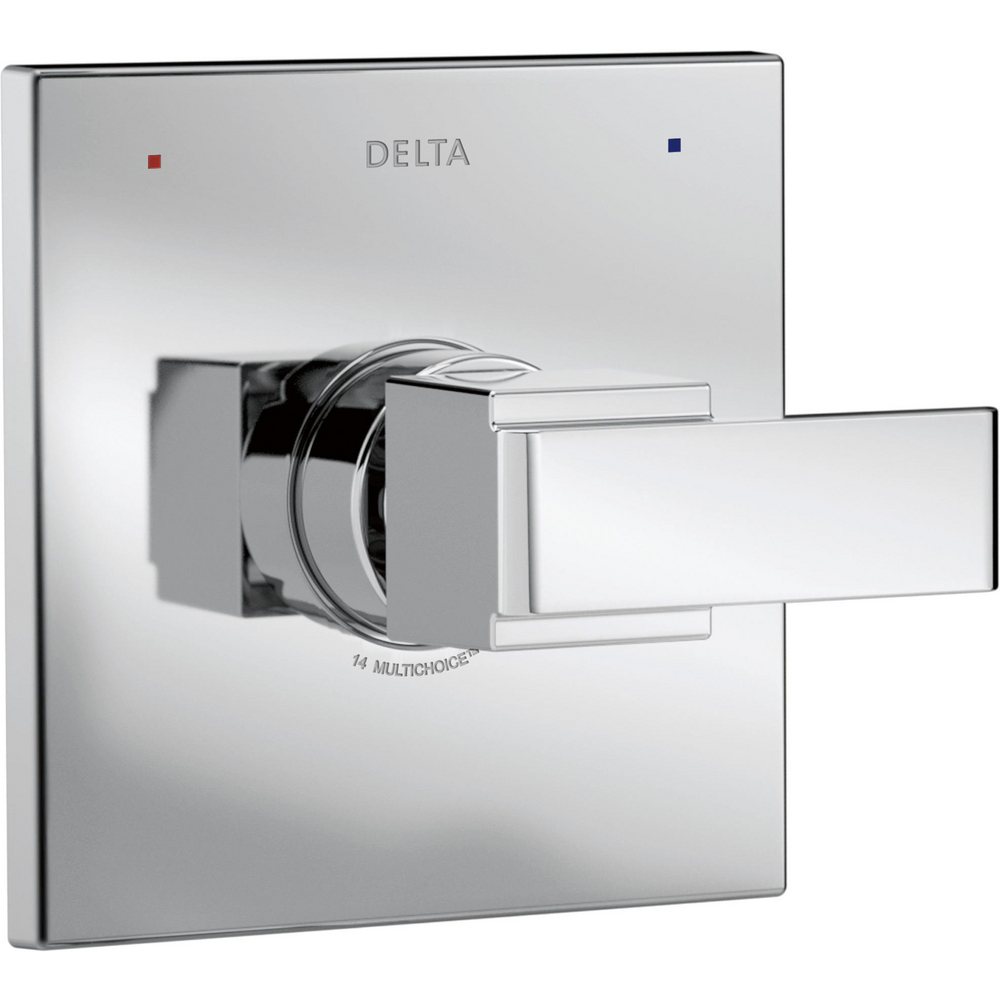

Monitor 14 Series Valve Only Trim
model#: T14067
Finish: Chrome
With defined geometric angles and edges, the Ara Bath Collection creates a streamlined look of contemporary elegance, the Monitor 14 Series Valve Only Trim offers the great looks and quality engineering that fit your lifestyle.
Delta's separate rough and trim program allows you to switch your trim without the hassle of changing your rough-in as well. Another great benefit is the ability to have your plumber install the rough-in before you've decided on the trim you want. By installing the rough-in first, you can later decide what type of trim will go perfectly in your bath.
Single function operation
Single lever handle for ease of temperature control
Monitor Scald-Guard valve keeps water temperature within +/-3degreesF
For use with MultiChoice Universal rough valve body (sold separately)

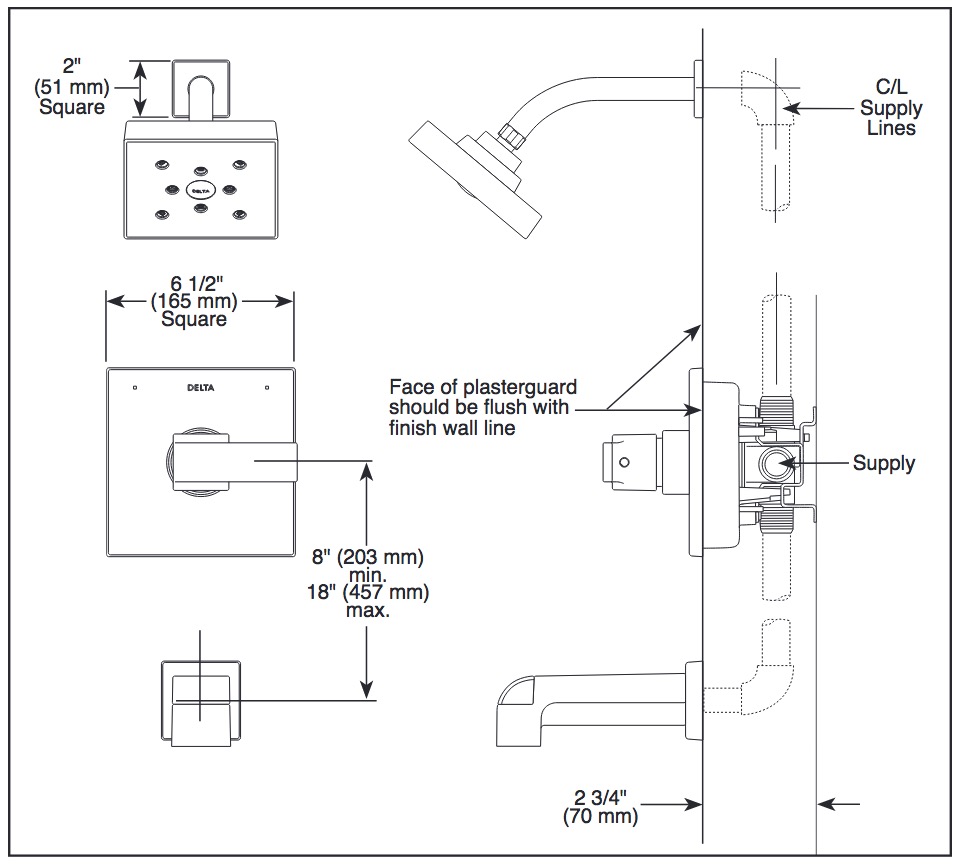

Installation Information
Number of Handles: Single handle
Flow Rate: 2.0 gpm @ 80 psi, 7.6 L/min @ 552 kPa
Fittings Type: Universal fittings
Drain Type: NA
Valve Type: Single-function pressure balance cartridge
Over All Height: 6-1/2
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
For use with MultiChoice® Universal rough valve body. (R10000 Series)
Temperature only controlled with handle.
Field adjustable means to limit handle rotation into hot water zone.
120° maximum handle rotation.
All parts replaceable from the front of the valve.
1.75 gpm @ 80 psi for standard models.
1.5 gpm @ 80 psi for models with -H2O designation.
Red/blue pad print temperature indicators on escutcheon.
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to ICC/ANSI A117.1 - Valve control only
EPA WaterSense
