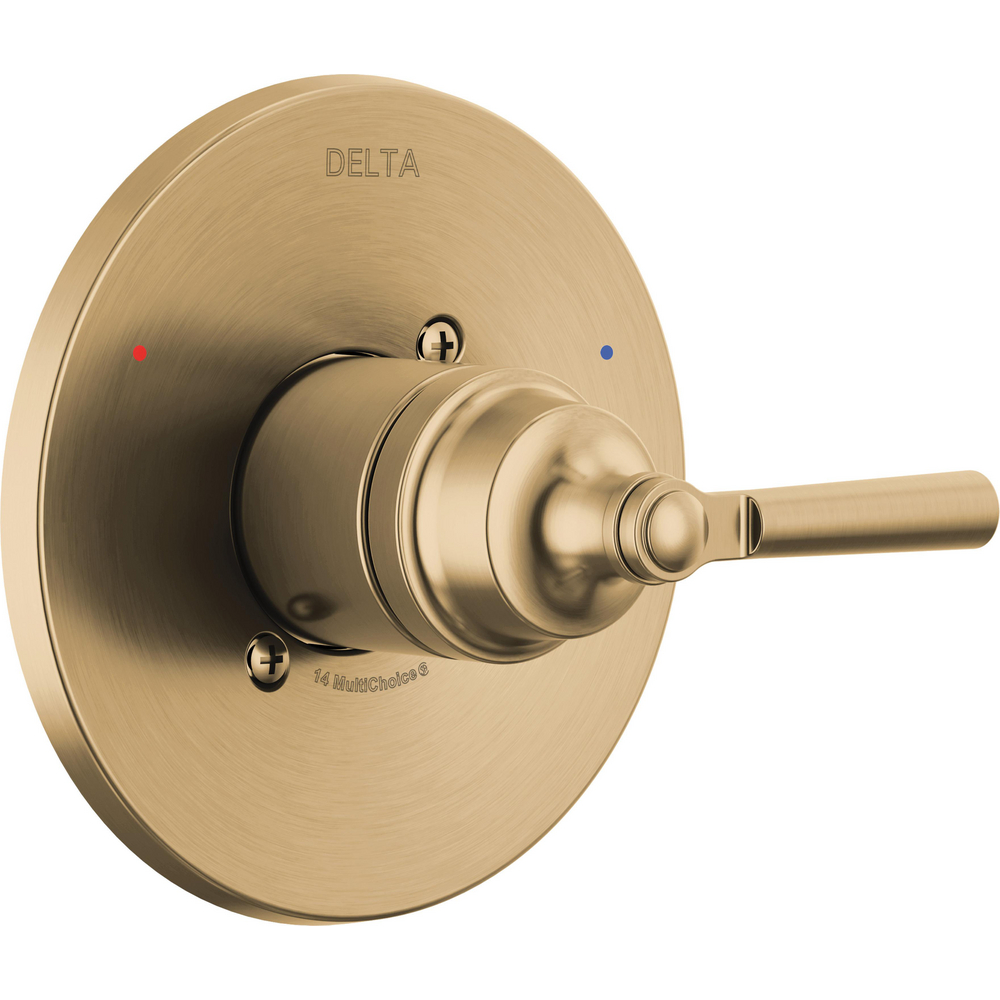

Delta T14035-CZ Saylor Monitor 14 Series Valve Only Trim Champagne Bronze
SAYLOR
Monitor 14 Series Valve Only Trim
model#: T14035-CZ
Finish: Champagne Bronze
Valve is not included, must purchase separately
Monitor Valve protects from rapid changes in water temperature
The Saylor Bath Collection is an intriguing blend of traditional and contemporary design elements with strong, geometric forms and hints of industrial style in the handles. Delta showers with Monitor pressure-balance valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. You can install with confidence, knowing Delta products are backed by our Lifetime Limited Warranty.
Perfectly coordinates with the Saylor Bath Collection
Monitor pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
ADA Compliant
Backed by Delta's Lifetime Limited Warranty

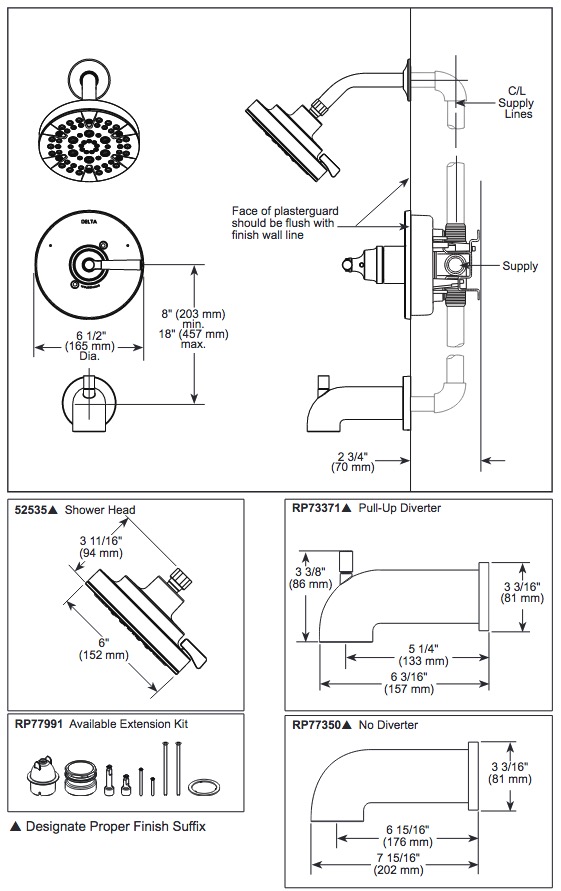

Installation Information
Number of Handles: Single handle
Over All Height: 6-1/2
Valve Type: NA
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice® Universal rough valve body (R10000 Series)
Temperature only controlled with handle
Field adjustable means to limit handle rotation into hot water zone
120° maximum handle rotation
Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 6.0 gpm @ 60 psi with R10000-UNBX
Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
Red/blue pad print temperature indicators on escutcheon
1/2" CWT slip-on spout adapter
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to ICC / ANSI A117.1- Valve control only
EPA WaterSense - Applies to T14235, T14435, & 52535
